YJ3 hydraulic winch is widely used in drilling, ports, mines, construction sites and other construction occasions, used to lift heavy objects; can also be used for road wreck rescue vehicle towing fault vehicles and engineering installation, oil drilling and other pull the use of heavy objects. This hydraulic winch can be work with the host in the field for a long time, which is characterized by compact structure, small size, light weight, stable performance, easy installation and easy maintenance.
Working principle & composition

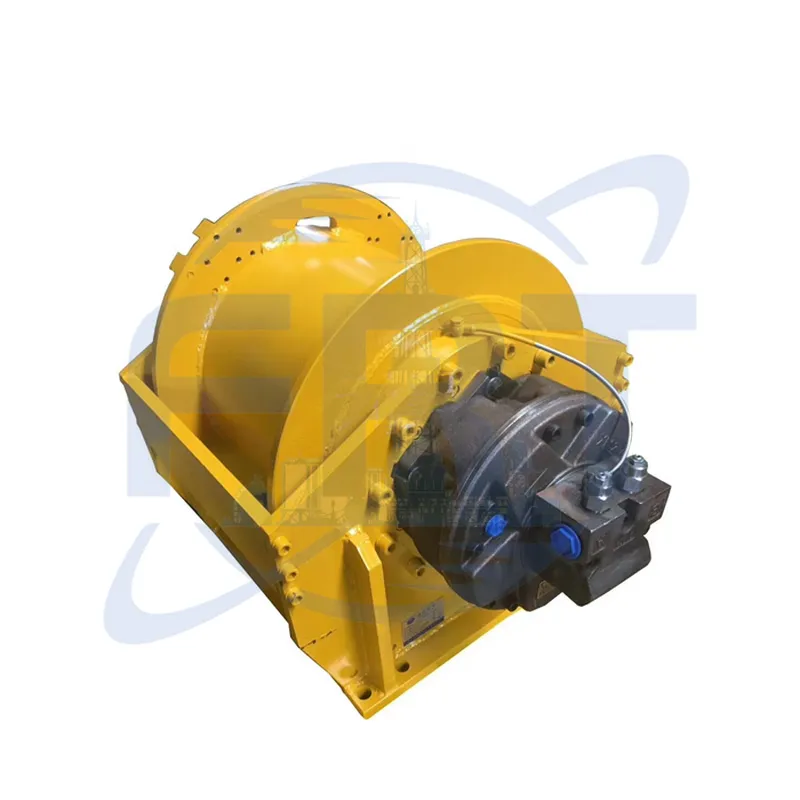

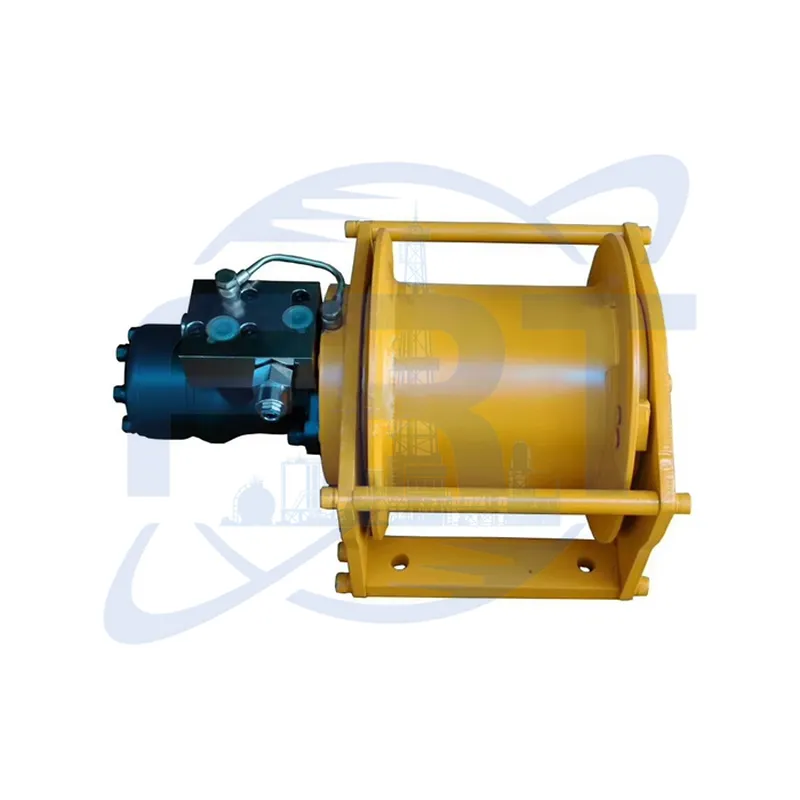

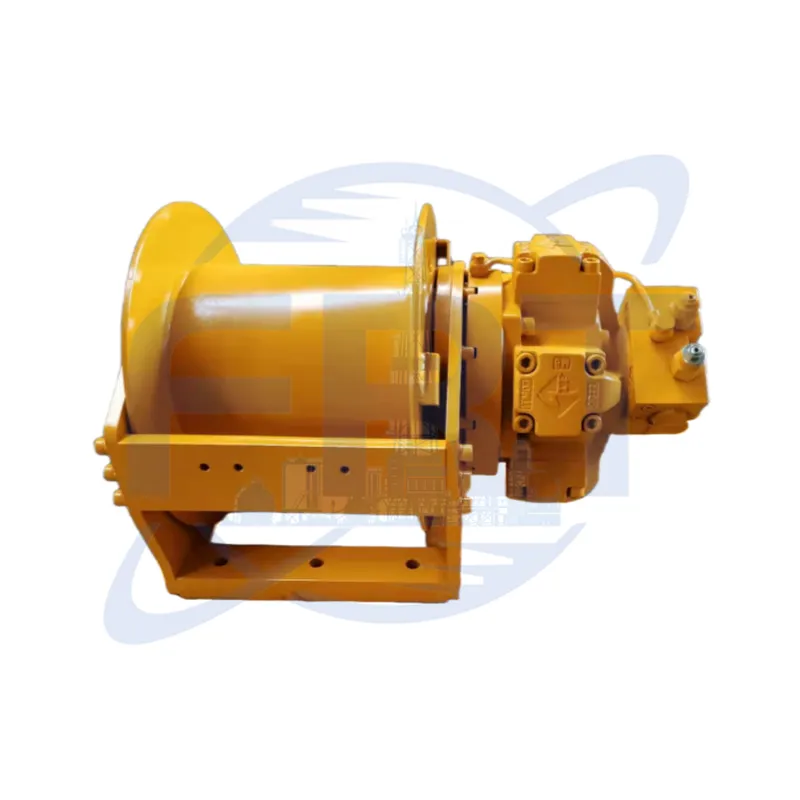

YJ3 hydraulic winch obvious characteristics of the use of advanced planetary gear differential transmission, bearing capacity is much higher than the turbine worm drive more than 50%, transmission efficiency increased by 50%, smooth transmission, easy to operate. It consists of planetary reducer, low-speed high-torque hydraulic motor（with balance valve）, mechanical clutch, reel and other components.
The hydraulic drive winch is converted into mechanical energy by the hydraulic motor through the hydraulic system. The motor can be decelerated by the planetary reducer, which produces a great torque on the reel. The purpose of towing the weight is achieved by winding the wire on the reel.
Specification
Model | YJ3 |
Lifting load | 3T |
Calibration work speed | 0-25m/min |
Hydraulic system working pressure | 18Mpa |
Rope capacity | 110m |
Rope diameter | 12mm |
Hydraulic system working flow | 80L/min |
Reduction ratio | 7 |
Weight | 170kg |
Company Profile
Our products cover more than 10 series with over 180 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, etc. Our 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.
Our company is committed to study the unconventional oil and gas equipment, and oil and gas exploration equipment under special environment such as offshore, desert, shallow, rainforest and cold weather (polar region). At the same time, mechanization and intellectualization of equipment are improved and developed continuously. We developed the cold weather drilling rigs that can adapts to the 45℃ to -60℃ temperature, the series of drilling rig are exported to high-end market such as Russia and Canada. The truck-modular rigs and free-standing drilling rigs can meet the different requirements from the customer.
FRT regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
FAQ
1. Are the winches in stock?
A: Some are in stock, but usually it need to be produced by orders.
2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.
3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the winches according to my requirements?
A: Yes, we can produce rotary tables as per your requirements, but all need to be discussed before signing the contract.
5. Can we visit your company before placing order?
Welcome to our company any time you like.
