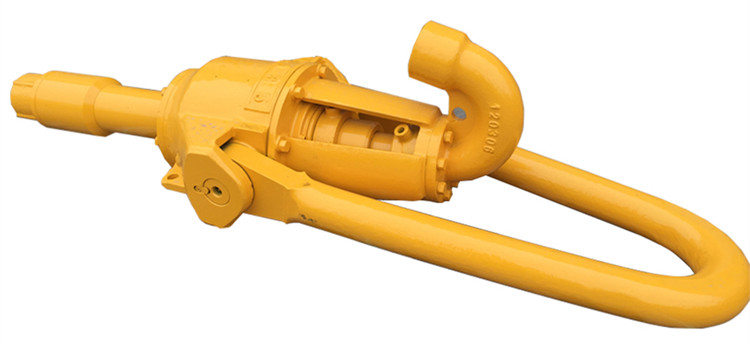

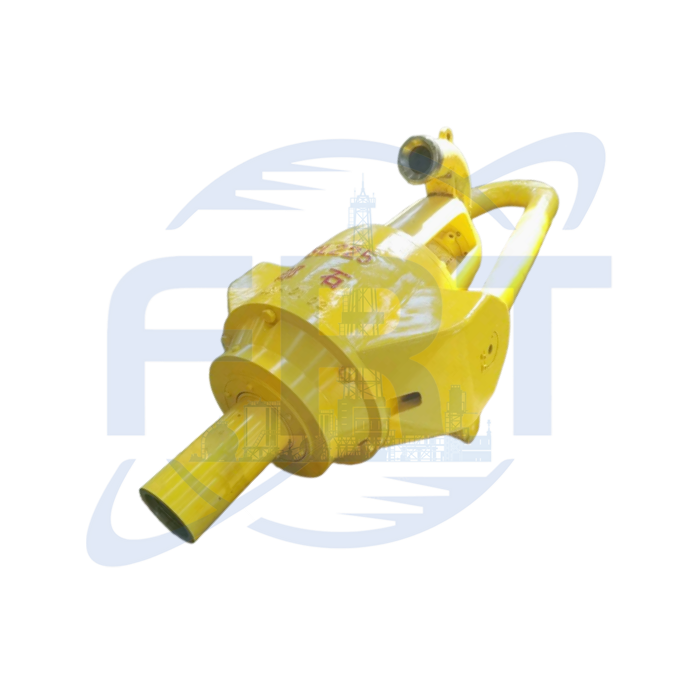

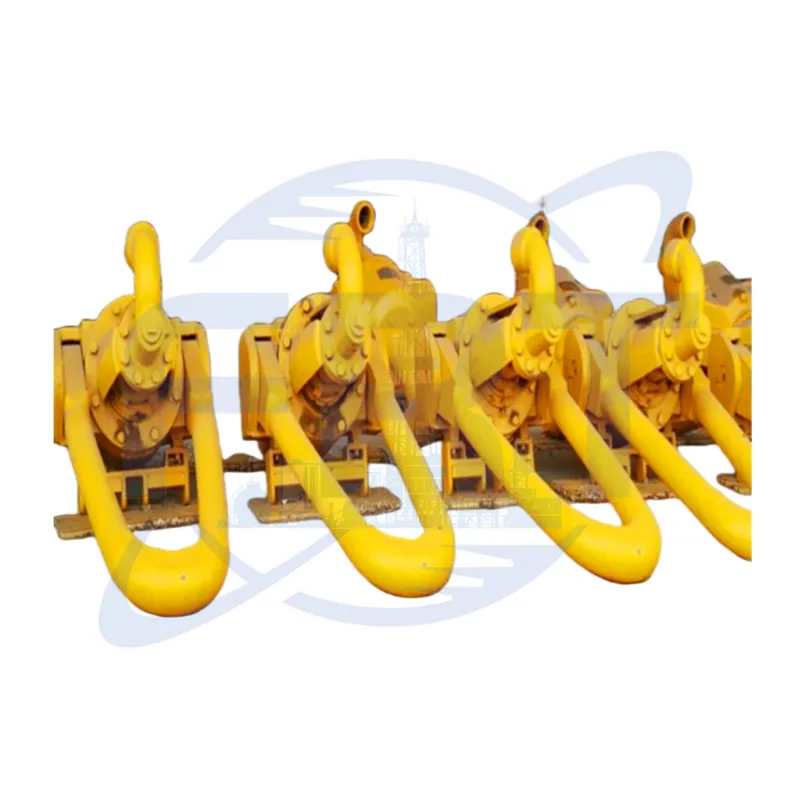

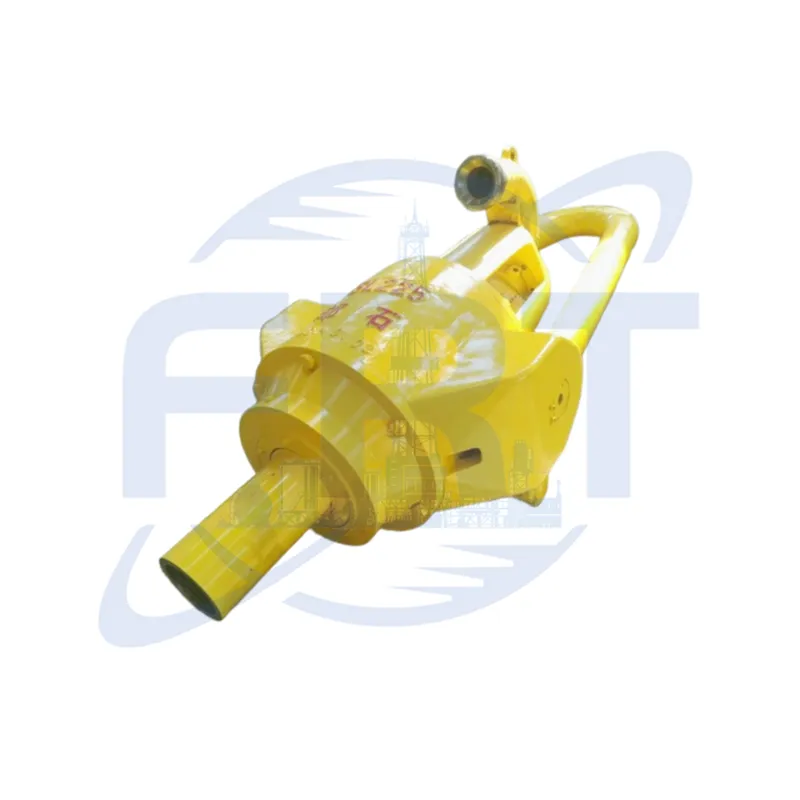

Drilling rig spare parts API 8C rotary drilling swivel

Description

1. Swivels are designed and manufactured according to API 8C specification and SY/T 5530 and other relevant standards.

2. The main bearing parts are made of high-strength alloy steel cast or forged and welded, and have passed non-destructive testing.

3. The wash pipe and the packing are connected by t-buckle for easy replacement.

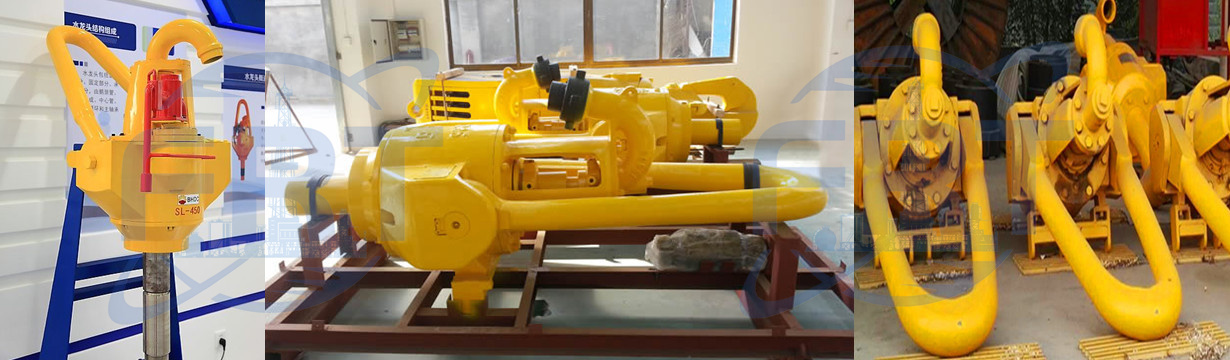

Characteristic

With standard bails and double pin alloy steel sub.

The wash pipe and the packing assembly are cartridge type and can be replaced on the floor without disconnecting the rotary hose

and/or gooseneck.

The gooseneck is provided with an outlet for wire line logging. With standard gooseneck joints. Threads are in compliance with API

Std 5B.

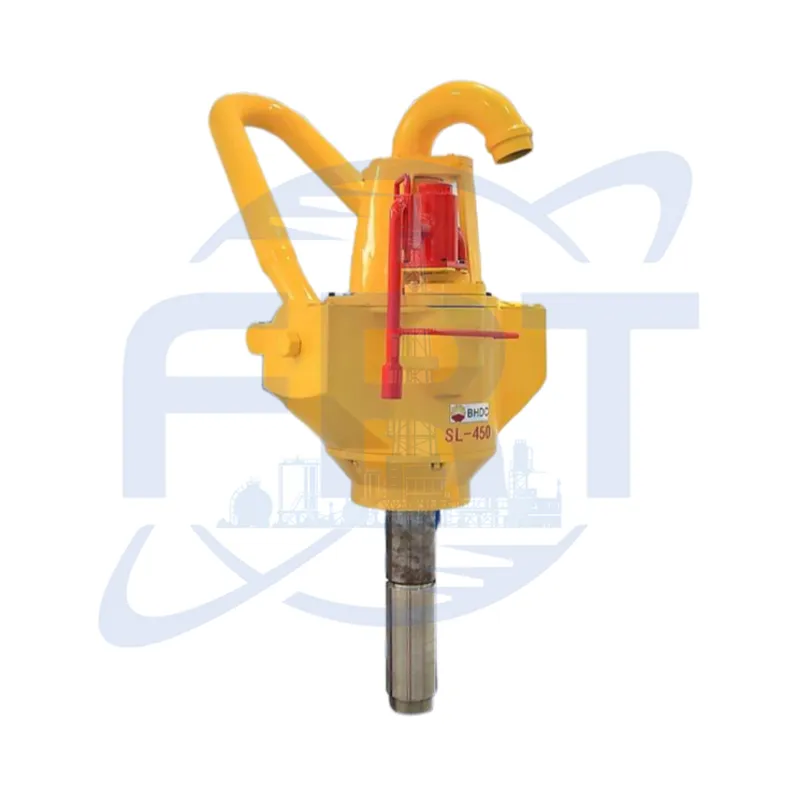

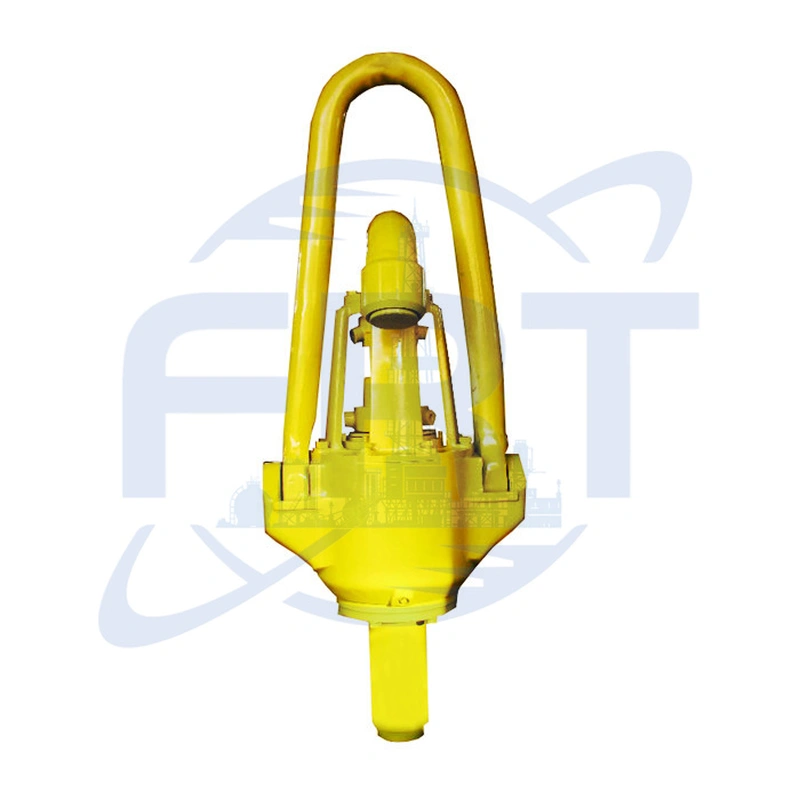

Swivel without spinner

Model		SL135	SL225	SL450	SL450H	SL675
Max. Static load rating		1350	2250	4500	4500	6750
Max. Speed		300	300	300	300	300
Max. Working pressure		35 (5000)	35 (5000)	35 (5000)	52 (7500)	52 (7500)
Clearance between bail and gooseneck		495 (191/2)	540 (211/4	549 (215/8)	600 (233/5)	640 (251/5)
Dia. of stem		64 (21/2)	75 (3)	75 (3)	75 (3)	101.6 (4)
Coupling thread	API To stem	4 1/2” REG LH	6 5/8" REG LH	7 5/8" REG LH	7 5/8" REG LH	8 5/8" REG LH
Coupling thread	API To Kelly	6 5/8" REG LH	6 5/8" REG LH	6 5/8" REG LH	6 5/8" REG LH	6 5/8" REG LH
Overall dimension(LxWxH)mm		2505x758x840	2880x925x1026	3015x1096x1035	3208x1096x1035	3685x1404x1265

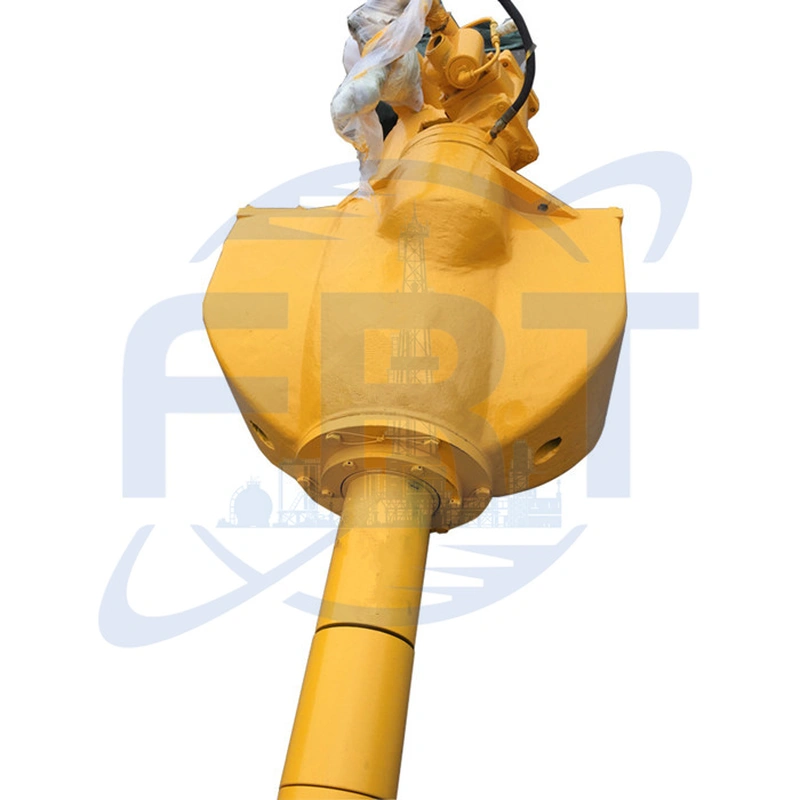

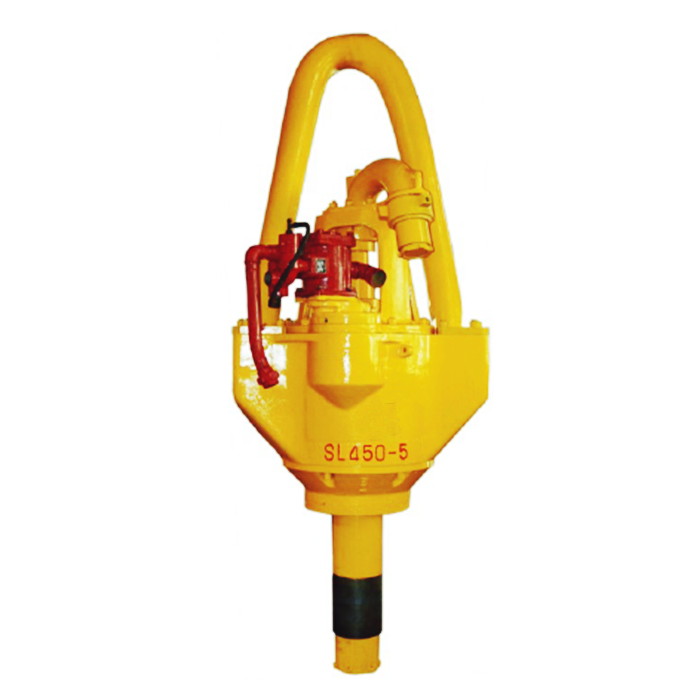

Swivel with spinner

Model	XSL225	XSL450	XSL675
Max load (kN)	2250	4500	6750
Main axle rated (kN)	1500	2500	4500
Angle between center line and vertical line of gooseneck pipe	15°
Goose neck pipe thread	4 1/2" TBG	4" NPT, 4" union	4" NPT, 4" union
Lower thread of joint	6 5/8" REG LH	6 5/8" REG LH	6 5/8" REG LH
Max working pressure (MPa)	35	35	52
Central pipe drift dia.mm	76	76	102
