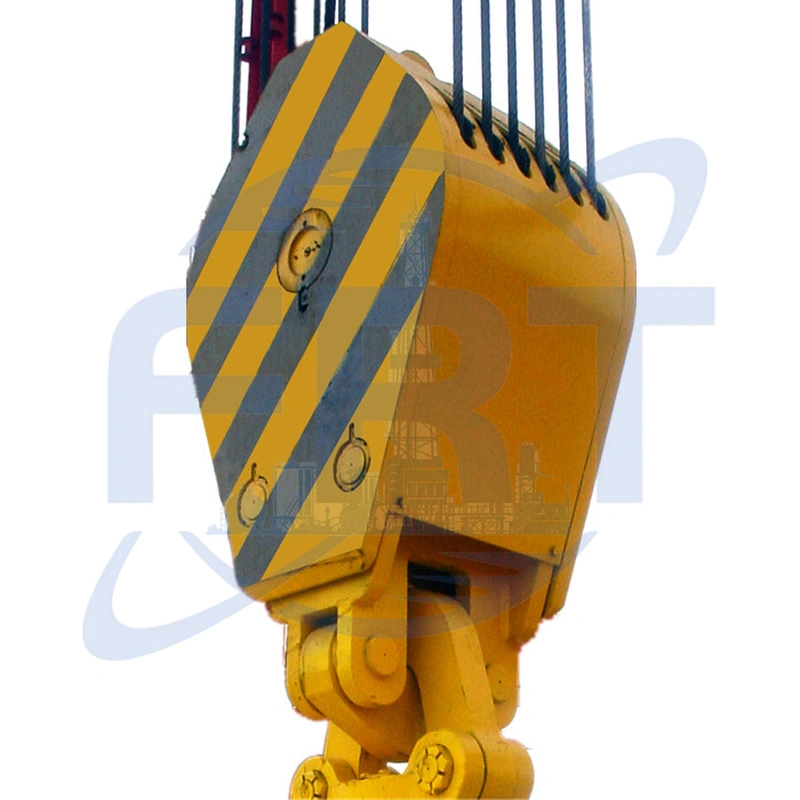

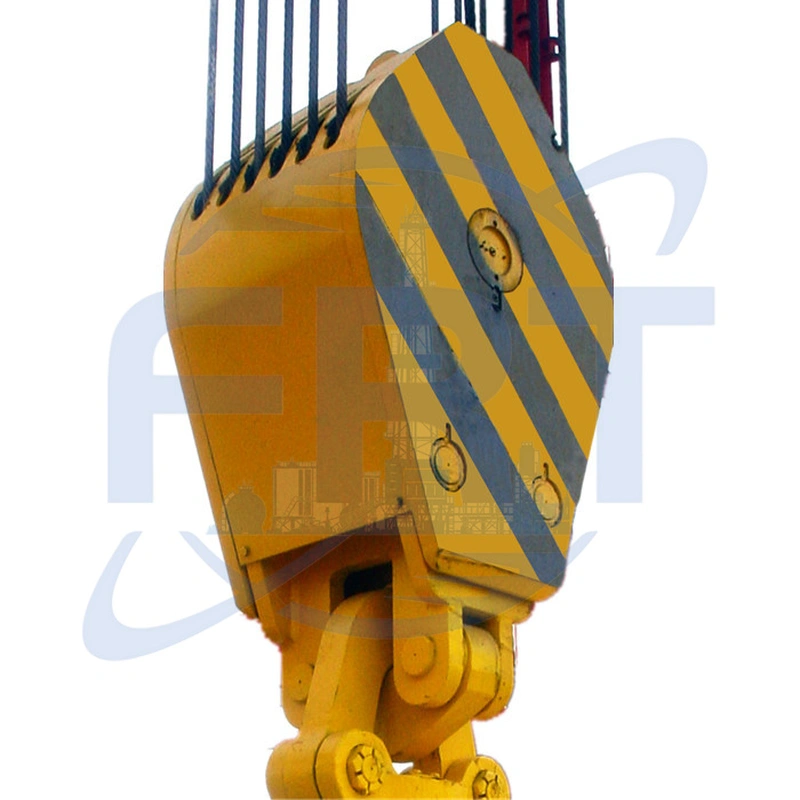

Drilling rig spare parts API 8C oilfield YC travelling blocks

The side plate assembly is made of thick steel plate.

When hoisting or lowering the unloaded elevators, the wire line is always kept taut to facilitate the line spooled on the drum and the empty hook lowered.

The sheave grooves are intermediate frequency quenched so as to improve surface hardness and extended the service life.

Quenched & tempered alloy steel shaft with lubrication hole of each bearing.

Equipped with double-row conical roller bearings and each bearing has individual lubricating channel.

Heavy duty wire line guard.

The travelling blocks conform to API Spec. 8A/8C.

Description

The side plate assembly is made of thick steel plate.

When hoisting or lowering the unloaded elevators, the wire line is always kept taut to facilitate the line spooled on the drum and the empty hook lowered.

The sheave grooves are intermediate frequency quenched so as to improve surface hardness and extended the service life.

Quenched & tempered alloy steel shaft with lubrication hole of each bearing.

Equipped with double-row conical roller bearings and each bearing has individual lubricating channel.

Heavy duty wire line guard.

The travelling blocks conform to API Spec. 8A/8C.

Model	YC225	YC315	YCF315	YC450	YC585	YC675
Max. hook load kN	2250	3150	3150	4500	5850	6750
O.D. of sheaves mm (in)	1120 (44)	1120 (44)	1270 (50)	1524 (60)	1524 (60)	1524(60)
Number of sheaves	5	6	6	6	7	7
Dia. of wire line mm(in)	29 (11/8) 32 (11/4)	32 (11/4) 35 (13/8)	35 (13/8)	35 (13/8) 38 (11/8)	42 (15/8)	45 (13/4) 42 (15/8)
Overall dimension (LxWxH) mm	2294x1190x630	2680x1350x974	2145x1380x1635	3075x1600x800	3086x1600x953	3087x1600x970

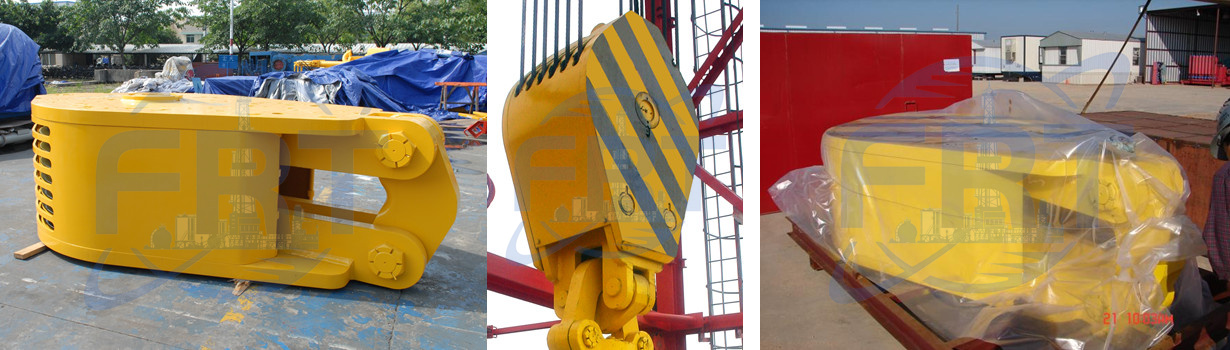

Packing&Shipping

By wooden case, wooden pallet, or as customer's requrements.

Goods will be delivered by sea, train, truck, air, etc.
