API 11B oil production sucker rod OD 3/4''x4FT

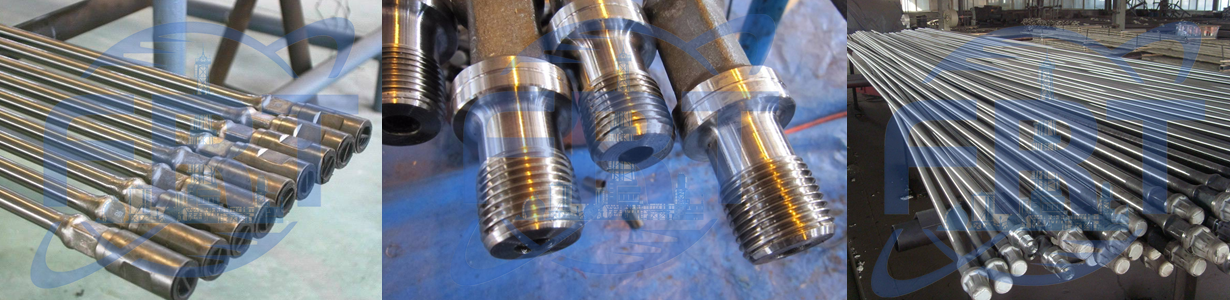

Description

Sucker rod is an important part of a sucker rod pumping equipment. Sucker rods connect with coupling to be a rod string, and up through polished rod connection on the pumping unit or PCP motor, down connection on the pump piston or PCP, its role is to ground the reciprocating movement of the pumping unit horsehead suspension point is passed to the downhole pump or pass the rotation of the PCP motor torque to downhole PCP.

According to mechanical properties, sucker rods can be divided into following classes: C-class, k-class, D-class, KD class, HL class and HY class.

Sucker Rod Weight List
Size	5/8"	3/4"	7/8"	1"	1-1/8"	1-1/4"	1-1/2"
kg/m	1.68	2.4	3.2	4.2	5.3	6.4	9.5

Technical specification

Sucker Rod Nominal diameter	Φ16 (5/8")	Φ19 (3/4")	Φ22 (7/8")	25 (1")	29 (1-1/8")
Rod Body Diameter	15.88+0.18-0.36 (0.625+0.007-0.014)	19.05+0.20-0.41 (0.750+0.008-0.016)	22.23+0.20-0.41 (0.875+0.008-0.016)	25.40+0.23-0.46 (1.000+0.009-0.018)	28.58+0.25-0.51 (1.125+0.010-0.020)
Outer Diameter Of External Thread Shoulder	31.8+0.13-0.25 (1.250+0.005-0.010)	31.8+0.13-0.25 (1.250+0.005-0.010)	41.3+0.13-0.25 (1.625+0.005-0.010)	50.8+0.13-0.25 (2.000+0.005-0.010)	57.2+0.13-0.25 (2.250+0.005-0.010)
Wrench Width ±0.8 (±0.031)	22.2 (0.875)	25.4 (1.000)	25.4 (1.000)	33.3 (1.313)	38.1 (1.500)
Wrench Length	31.8 (1.250)	31.8 (1.250)	31.8 (1.250)	31.8 (1.250)	41.3 (1.625)
API Rod Length ±50 (±2.0)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)
Domestic Rod Length±50	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900
Upset Flange Diameter	31.1+0.13-3.17 (1.219+0.005-0.125)	35.7+0.13-3.17 (1.406+0.005-0.125)	38.1+0.13-3.17 (1.500+0.005-0.125)	48.4+0.13-3.17 (1.906+0.005-0.125)	55.6+0.13-3.17 (2.188+0.005-0.125)
AR±3.2 (±0.125)	47.6 (1.875)	57.1 (2.250)	66.7 (2.625)	76.2 (3.000)	85.7 (3.375)
CR+1.59-0.40 (+0.063-0.016)	3.2 (0.125)	3.2 (0.125)	4.8 (0.188)	4.8 (0.188)	4.8 (0.188)

Mechanical properties

Grade	Minimum Yield Strength(0.2% Residual Deformation)		Minimum Tensile Strength		Maximum Tensile Strength		Elongation 200mm %	Reduction Of Area Z%	Surface Hardness HRC
K	60000	414	90000	621	115000	793	≥13	≥50
C	60000	414	90000	621	115000	793	≥13	≥50
D	85000	586	115000	793	140000	965	≥13	≥50
KD	85000	590	115000	795	140000	965	≥13	≥50
HL	115000	795	140000	965	173339	1195	≥13	≥45
HY	/	/	140000	965	173339	1195	/	/	≥42
EHL	/	/	188500	1300	217500	1500	/	/	≥50

Chemical composition

AISI	C	Si	Mn	P	S	Cr	Ni	Mo	Cu
1541	0.36-0.45	0.15-0.35	1.35-1.65	≤0.04	≤0.04	≤0.3	≤0.35	≤0.06	≤0.35
4120	0.17-0.24	0.17-0.37	0.4-0.7	≤025	≤0.025	0.8-1.1	≤0.3	0.15-0.25	≤0.2
4130	0.26-0.33	0.17-0.37	0.4-0.7	≤0.025	≤0.025	0.8-1.1	≤0.3	0.15-0.25	≤0.2
4138	0.37-0.45	0.17-0.37	0.9-1.2	≤0.025	≤0.025	0.9-1.2	≤0.3	0.2-0.3	≤0.2
4138M	0.37-0.45	0.17-0.37	0.9-1.2	≤0.025	≤0.025	0.9-1.2	≤0.3	0.2-0.3	≤0.2
4140	0.38-0.45	0.17-0.37	0.5-0.8	≤0.025	≤0.025	0.9-1.2	≤0.3	0.15-0.25	≤0.2
4142	0.38-0.45	0.17-0.37	0.5-0.8	≤0.025	≤0.025	0.9-1.2	≤0.3	0.15-0.25	≤0.2
3130	0.22-0.29	0.15-0.35	0.71-1.0	≤0.025	≤0.025	0.42-0.65	0.72-1.0	0.01-0.06	≤0.2
4320	0.18-0.42	0.15-0.35	0.8-1.0	≤0.025	≤;0.025	0.7-0.9	1.15-1.5	0.2-0.3	≤0.35
4330	0.3-0.35	0.15-0.35	0.8-1.1	≤0.025	≤0.025	0.8-1.1	1.65-2.0	0.2-0.3	≤0.2
4621	0.18-0.23	0.17-0.37	0.7-0.9	≤0.025	≤0.025	≤0.35	1.65-2.0	0.2-0.3	≤0.2
4720	0.19-0.23	0.15-0.35	0.85-1.05	≤0.025	≤0.025	0.8-1.05	0.9-1.2	0.22-0.30	0.40-0.60

Packing&Shipping

Company Introduction

The market share of FRT Machinery is growing steadily and rapidly. Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa.

FRT regards continuous learning ability as one of the company"s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills. We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.

FRT has a skilled and experienced after sales team geared up for fast response and superior services to our customers at any time. Our Long distance monitoring center is equipped to monitor, diagnose, serve and manage the units delivered. XRR also provides technical training to our customers at regular intervals.

FAQ

1. Are the sucker rods in stock?
A: Some are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the sucker rods according to my requirements?
A: Yes, we can produce sucker rods as per your requirements, but all need to be discussed before signing the contract.

5. Can we visit your company before placing order?
Welcome to our company any time you like.
