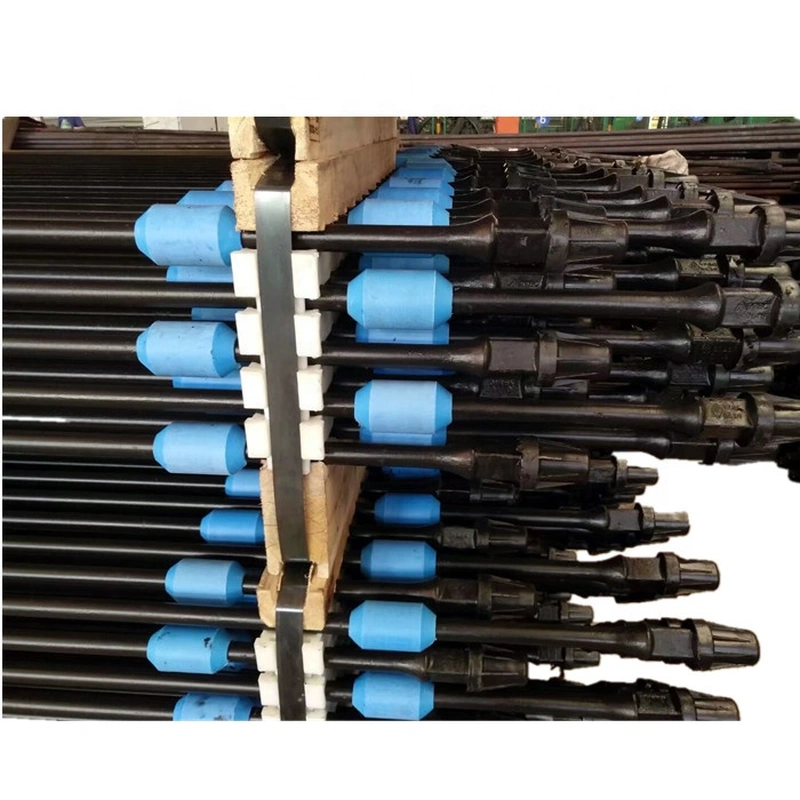

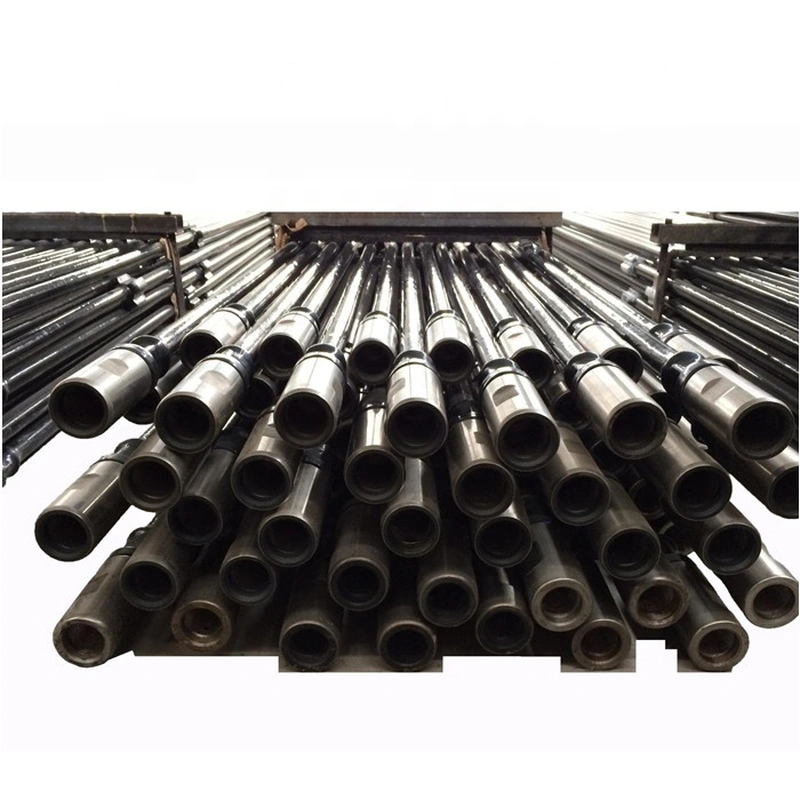

API 11B sucker rod pump rod

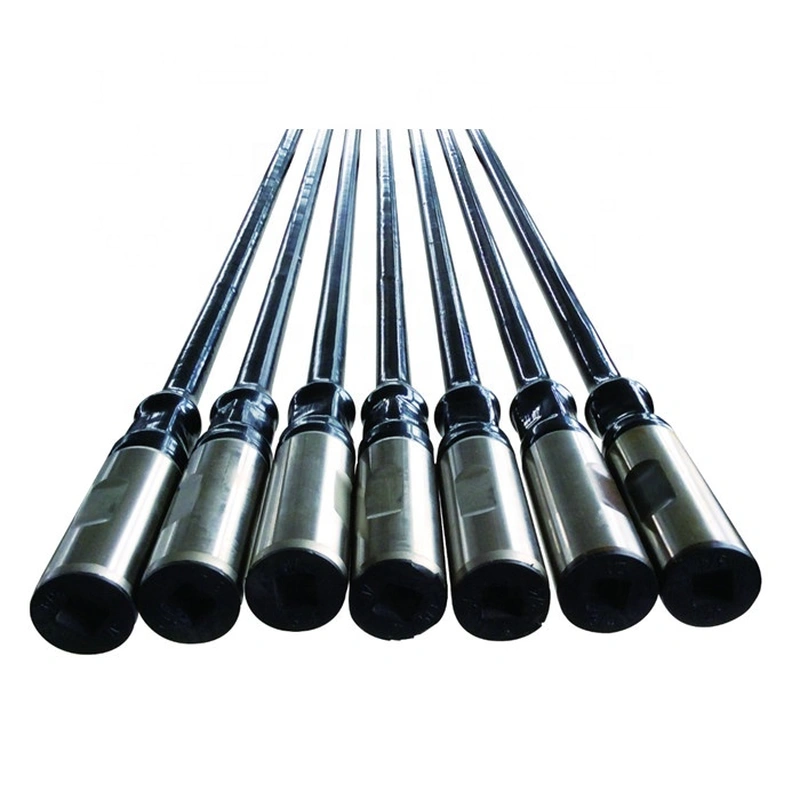

Description

Sucker rod is an important part of a sucker rod pumping equipment. Sucker Rod connect with coupling to be a rod string, and up through polished rod connection on the pumping unit or PCP motor, down connection on the pump piston or PCP, its role is to ground the reciprocating movement of the pumping unit horsehead suspension point is passed to the downhole pump or pass the rotation of the PCP motor torque to downhole PCP.

According to mechanical properties, sucker rods can be divided into following classes: C-class, k-class, D-class, KD class, HL class and HY class.

Sucker Rod Weight List
Size	5/8''	3/4''	7/8''	1''	1-1/8''	1-1/4''	1-1/2''
kg/m	1.68	2.4	3.2	4.2	5.3	6.4	9.5

Technical specification

Sucker Rod Nominal diameter	Φ16 (5/8")	Φ19 (3/4")	Φ22 (7/8")	25 (1")	29 (1-1/8")
Rod Body Diameter	15.88+0.18-0.36 (0.625+0.007-0.014)	19.05+0.20-0.41 (0.750+0.008-0.016)	22.23+0.20-0.41 (0.875+0.008-0.016)	25.40+0.23-0.46 (1.000+0.009-0.018)	28.58+0.25-0.51 (1.125+0.010-0.020)
Outer Diameter Of External Thread Shoulder	31.8+0.13-0.25 (1.250+0.005-0.010)	31.8+0.13-0.25 (1.250+0.005-0.010)	41.3+0.13-0.25 (1.625+0.005-0.010)	50.8+0.13-0.25 (2.000+0.005-0.010)	57.2+0.13-0.25 (2.250+0.005-0.010)
Wrench Width ±0.8 (±0.031)	22.2 (0.875)	25.4 (1.000)	25.4 (1.000)	33.3 (1.313)	38.1 (1.500)
Wrench Length	31.8 (1.250)	31.8 (1.250)	31.8 (1.250)	31.8 (1.250)	41.3 (1.625)
API Rod Length ±50 (±2.0)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)	508 (20) 1118 (44) 1727 (68) 2337 (92) 2946 (116) 7518 (296) 9042 (356)
Domestic Rod Length±50	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900	900, 1400, 1900, 2400, 2900, 3400, 7900, 9900
Upset Flange Diameter	31.1+0.13-3.17 (1.219+0.005-0.125)	35.7+0.13-3.17 (1.406+0.005-0.125)	38.1+0.13-3.17 (1.500+0.005-0.125)	48.4+0.13-3.17 (1.906+0.005-0.125)	55.6+0.13-3.17 (2.188+0.005-0.125)
AR±3.2 (±0.125)	47.6 (1.875)	57.1 (2.250)	66.7 (2.625)	76.2 (3.000)	85.7 (3.375)
CR+1.59-0.40 (+0.063-0.016)	3.2 (0.125)	3.2 (0.125)	4.8 (0.188)	4.8 (0.188)	4.8 (0.188)

Mechanical properties

Grade	Minimum Yield Strength(0.2% Residual Deformation)		Minimum Tensile Strength		Maximum Tensile Strength		Elongation 200mm %	Reduction Of Area Z%	Surface Hardness HRC
K	60000	414	90000	621	115000	793	≥13	≥50
C	60000	414	90000	621	115000	793	≥13	≥50
D	85000	586	115000	793	140000	965	≥13	≥50
KD	85000	590	115000	795	140000	965	≥13	≥50
HL	115000	795	140000	965	173339	1195	≥13	≥45
HY	/	/	140000	965	173339	1195	/	/	≥42
EHL	/	/	188500	1300	217500	1500	/	/	≥50

Chemical composition

AISI	C	Si	Mn	P	S	Cr	Ni	Mo	Cu
1541	0.36-0.45	0.15-0.35	1.35-1.65	≤0.04	≤0.04	≤0.3	≤0.35	≤0.06	≤0.35
4120	0.17-0.24	0.17-0.37	0.4-0.7	≤025	≤0.025	0.8-1.1	≤0.3	0.15-0.25	≤0.2
4130	0.26-0.33	0.17-0.37	0.4-0.7	≤0.025	≤0.025	0.8-1.1	≤0.3	0.15-0.25	≤0.2
4138	0.37-0.45	0.17-0.37	0.9-1.2	≤0.025	≤0.025	0.9-1.2	≤0.3	0.2-0.3	≤0.2
4138M	0.37-0.45	0.17-0.37	0.9-1.2	≤0.025	≤0.025	0.9-1.2	≤0.3	0.2-0.3	≤0.2
4140	0.38-0.45	0.17-0.37	0.5-0.8	≤0.025	≤0.025	0.9-1.2	≤0.3	0.15-0.25	≤0.2
4142	0.38-0.45	0.17-0.37	0.5-0.8	≤0.025	≤0.025	0.9-1.2	≤0.3	0.15-0.25	≤0.2
3130	0.22-0.29	0.15-0.35	0.71-1.0	≤0.025	≤0.025	0.42-0.65	0.72-1.0	0.01-0.06	≤0.2
4320	0.18-0.42	0.15-0.35	0.8-1.0	≤0.025	≤;0.025	0.7-0.9	1.15-1.5	0.2-0.3	≤0.35
4330	0.3-0.35	0.15-0.35	0.8-1.1	≤0.025	≤0.025	0.8-1.1	1.65-2.0	0.2-0.3	≤0.2
4621	0.18-0.23	0.17-0.37	0.7-0.9	≤0.025	≤0.025	≤0.35	1.65-2.0	0.2-0.3	≤0.2
4720	0.19-0.23	0.15-0.35	0.85-1.05	≤0.025	≤0.025	0.8-1.05	0.9-1.2	0.22-0.30	0.40-0.60

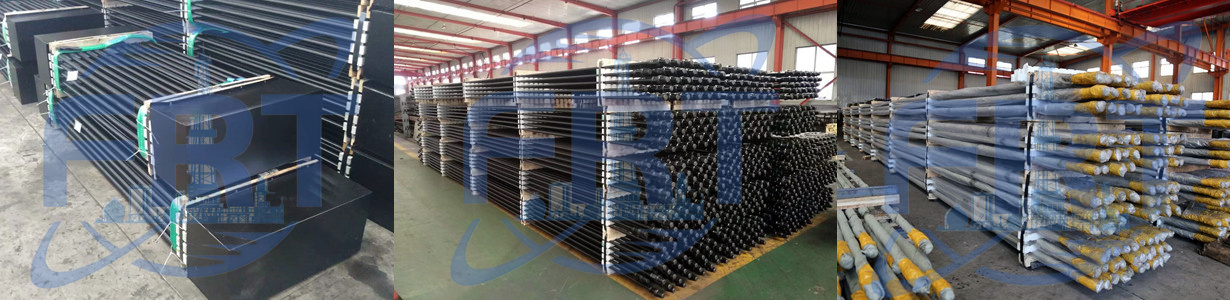

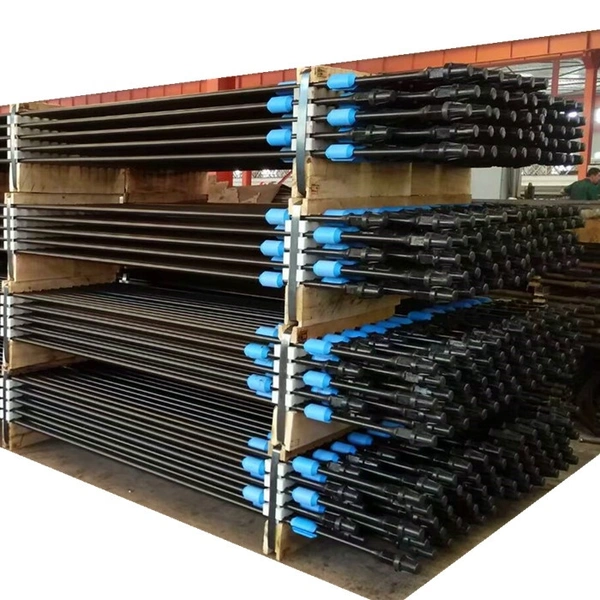

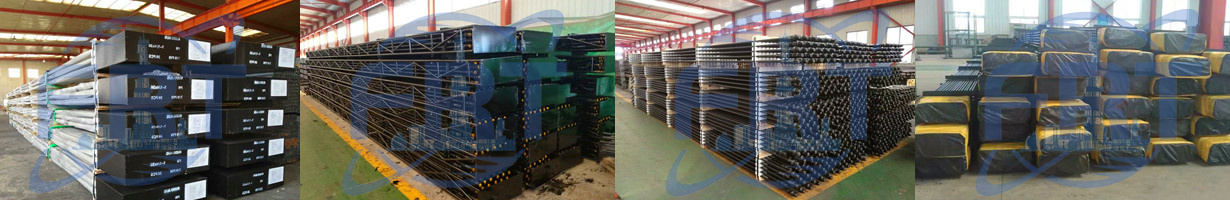

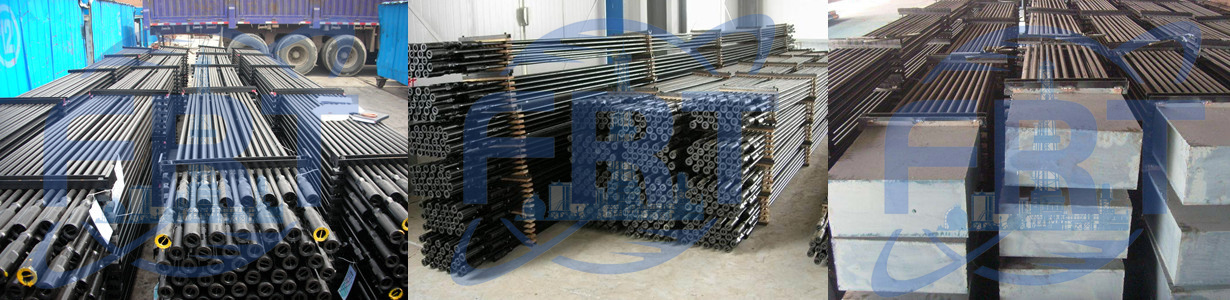

Packing&Shipping
