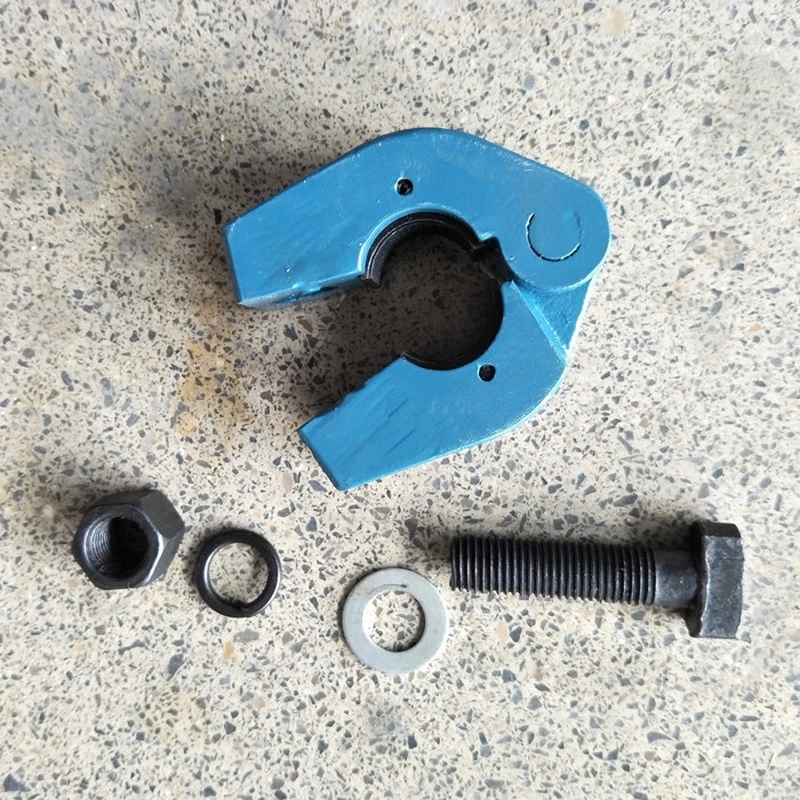

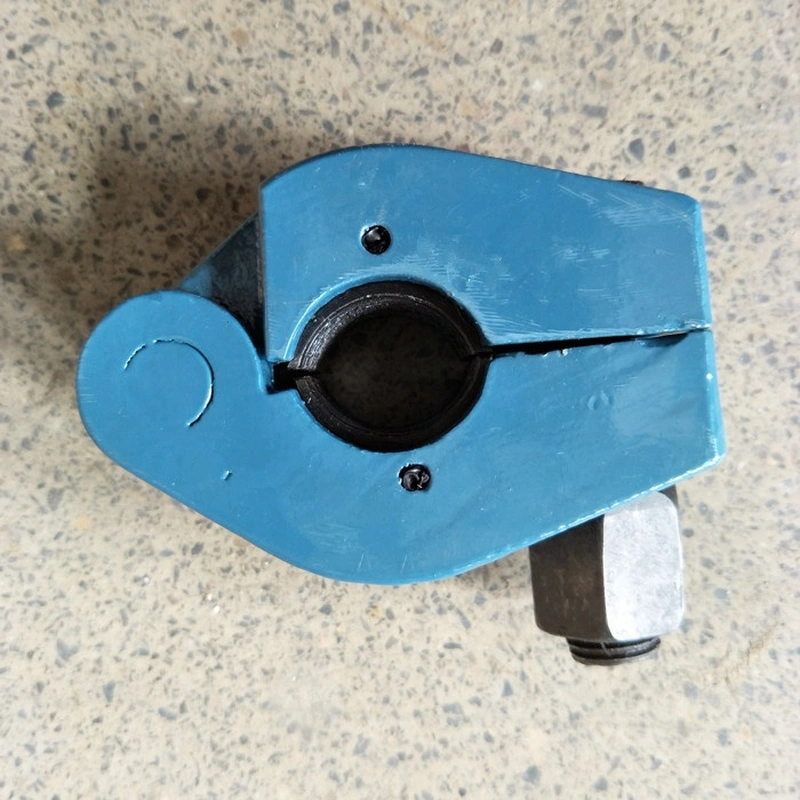

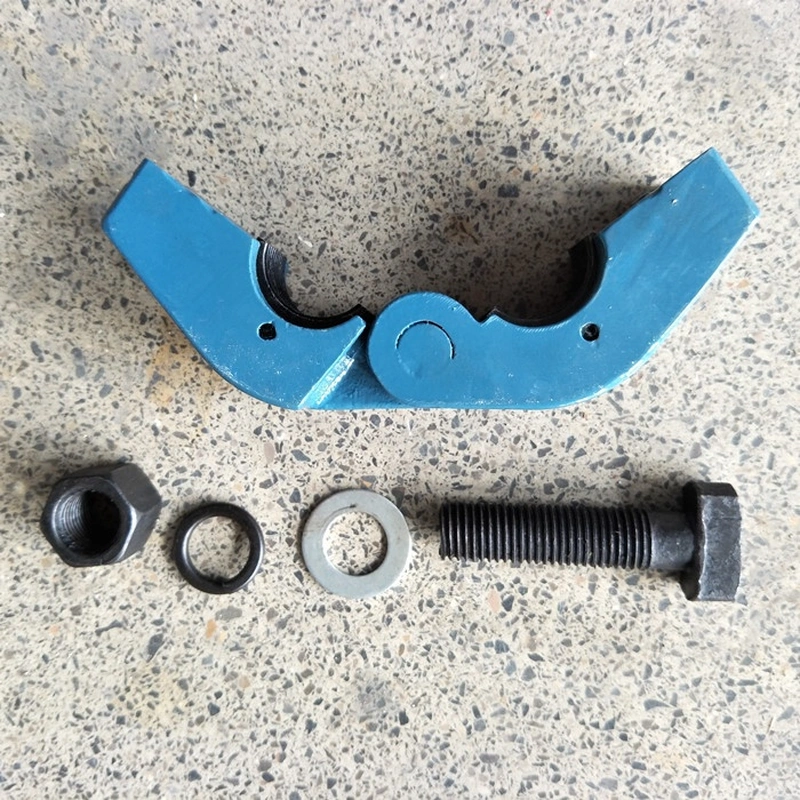

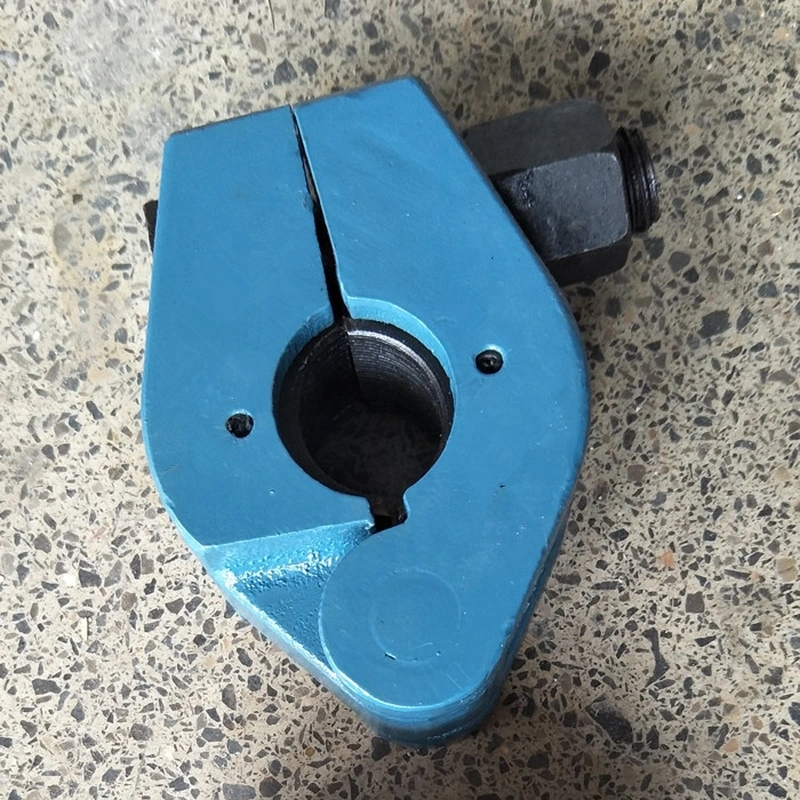

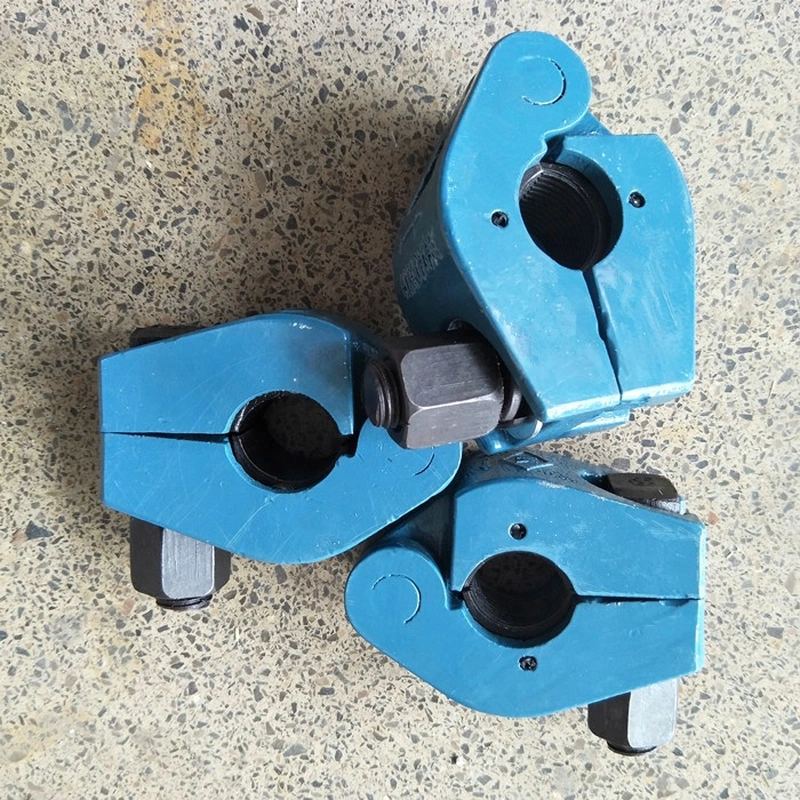

Oilfield wellhead API single bolt polished rod clamp

Description

The polished rod clamp is fixed in proper place through block teeth and the polished rod is hanged through polished rod eye and made to bear the load of the sucker rod. The product has the advantages of simple structure, anti loosing function, safe and convenient use, and good practicability.

Rated polished rod load (KN): 160-800KN

Size mm (in)	Overall dimension (mm)	Weight (KG)
15.9 (5/8")	58X72X108	2.5
19.1 (3/4")	58X72X108	2.5
22.2 (7/8")	58X72X108	2.5
25.4 (1")	58X72X108	2.5
28.6 (1-1/8")	58X82X110	2.5
31.7 (1-1/4")	58X82X110	2.5
34.9 (1-3/8")	58X82X110	3.8
38.1 (1-1/2")	58X82X110	3.8
41.3 (1-5/8")	58X82X110	3.8

Recommend Products

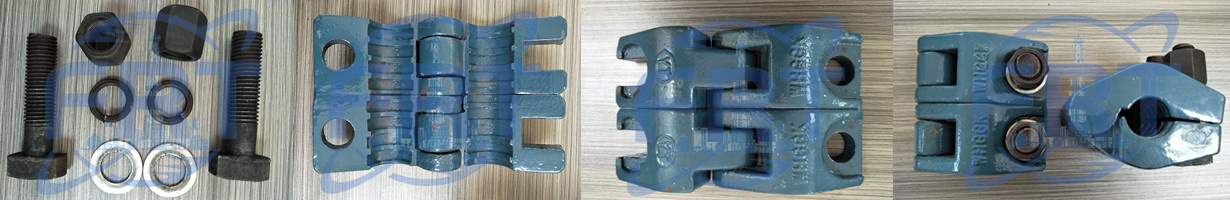

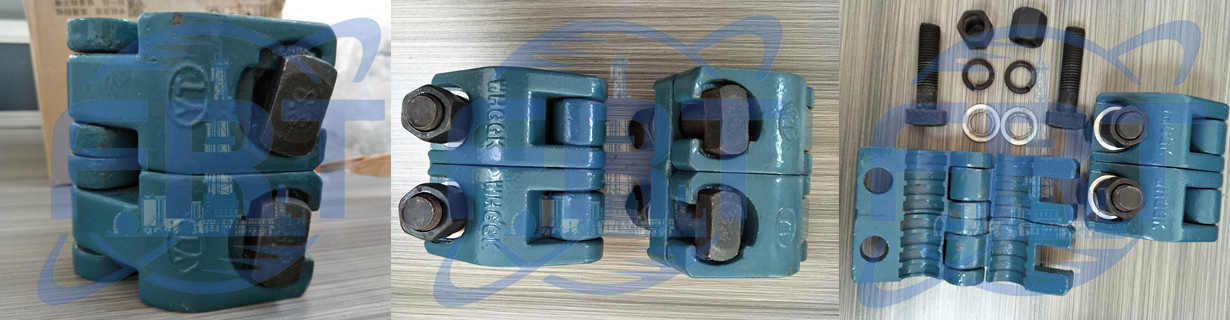

Two / Double bolt polished rod clamp

Size mm (in)	Overall dimension (mm)	Weight (KG)
15.9 (5/8")	114X100X119	5.5
19.1 (3/4")	114X100X119	5.5
22.2 (7/8")	114X100X119	5.5
25.4 (1")	114X100X119	5.5
28.6 (1-1/8")	114X100X119	5.5
31.7 (1-1/4")	114X100X119	5.5
34.9 (1-3/8")	120X110X119	8
38.1 (1-1/2")	120X110X119	8
41.3 (1-5/8")	120X110X119	8

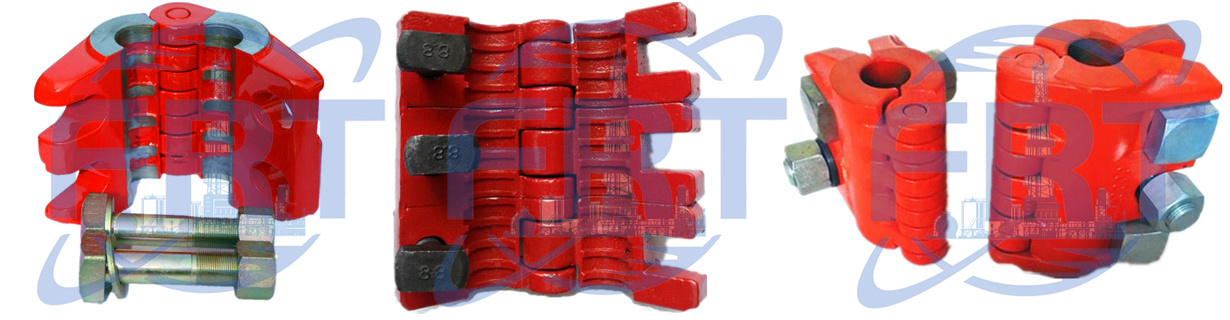

Three bolt polished rod clamp

Size mm (in)	Overall dimension (mm)	Weight (KG)
15.9 (5/8")	58X72X324	7.5
19.1 (3/4")	58X72X324	7.5
22.2 (7/8")	58X72X324	7.5
25.4 (1")	58X72X324	7.5
28.6 (1-1/8")	58X82X330	7.5
31.7 (1-1/4")	58X82X330	7.5
34.9 (1-3/8")	58X82X330	11
38.1 (1-1/2")	58X82X330	11
41.3 (1-5/8")	58X82X330	11

Structural features

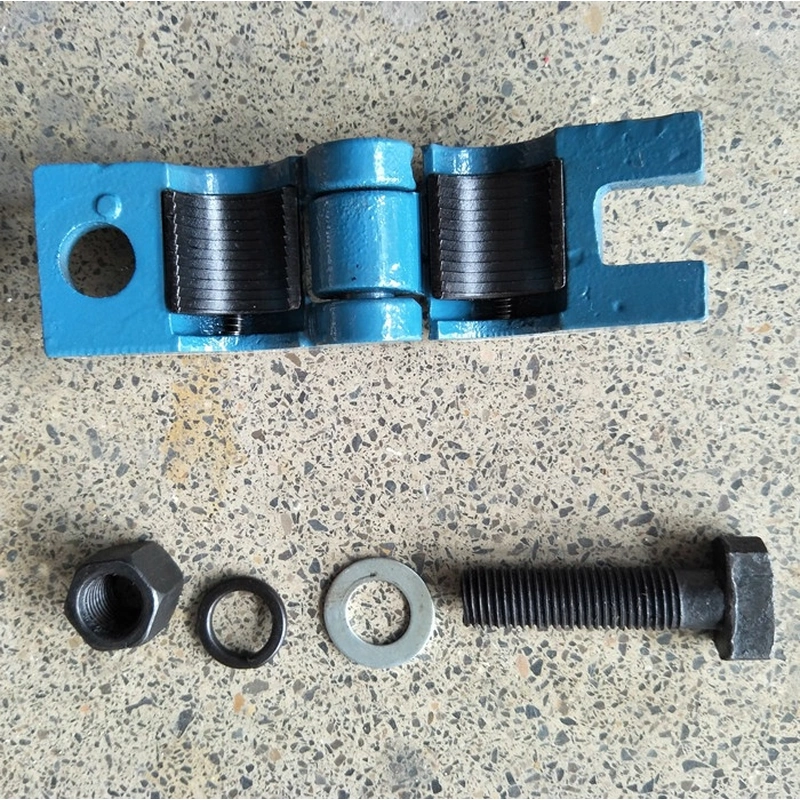

1. The product is mainly composed of slip body, clamp tooth and high-strength T-bolt, with simple structure, reliable clamping, anti loose function, safe and convenient use.

2. The product adopts the inner groove design, which is improved on the basis of the past through chute, greatly improving the strength of the slip body.

3. Using increased high-strength T-bolt can prevent the ring from stretching and cracking. 4. This product is made of 20crmoti and 25 × steel. After carburizing and quenching treatment, the surface hardness reaches HRC58-62, the core structure has good toughness, the whole bayonet has good comprehensive mechanical properties, and it is suitable for all kinds of polished rods.

Packing&Shipping

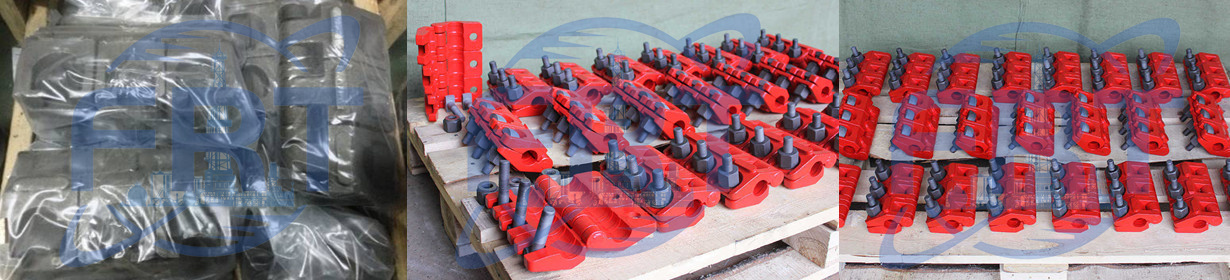

The clamps will be packed in plywood wooden box.

Goods will be deliveres by sea, air, train, truck, etc.
