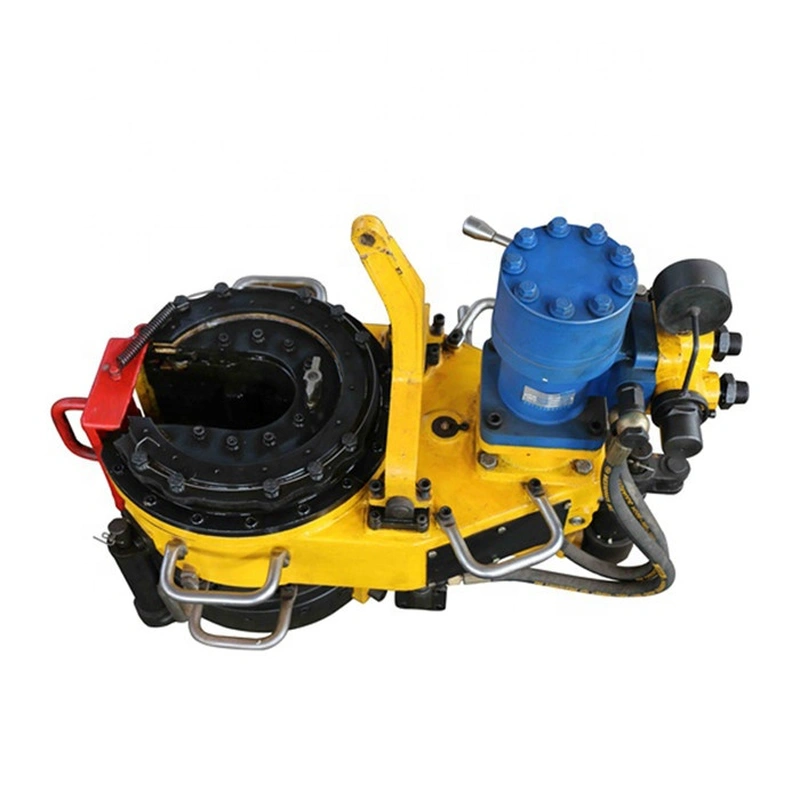

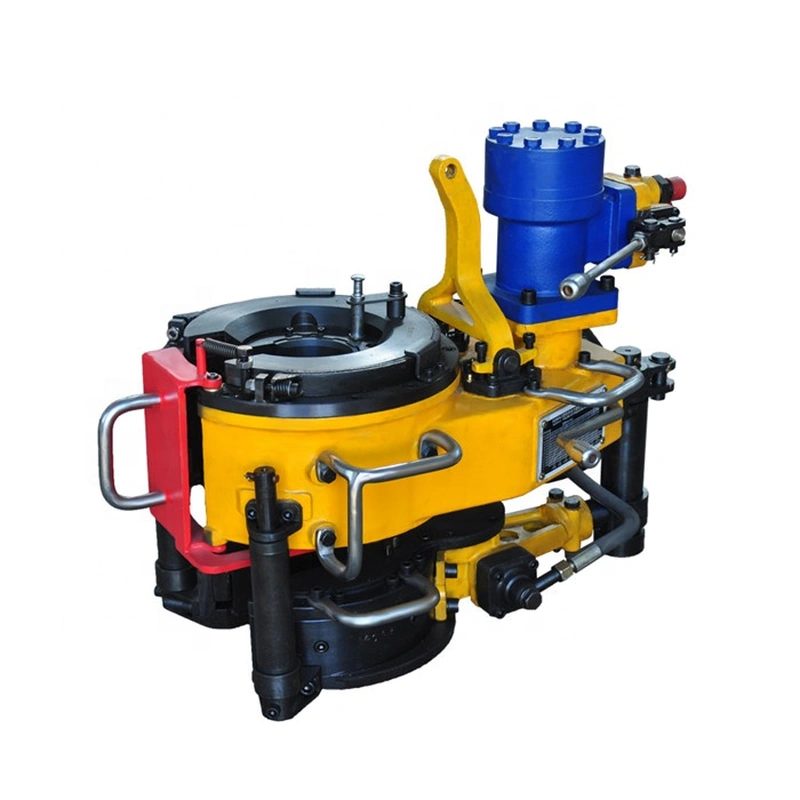

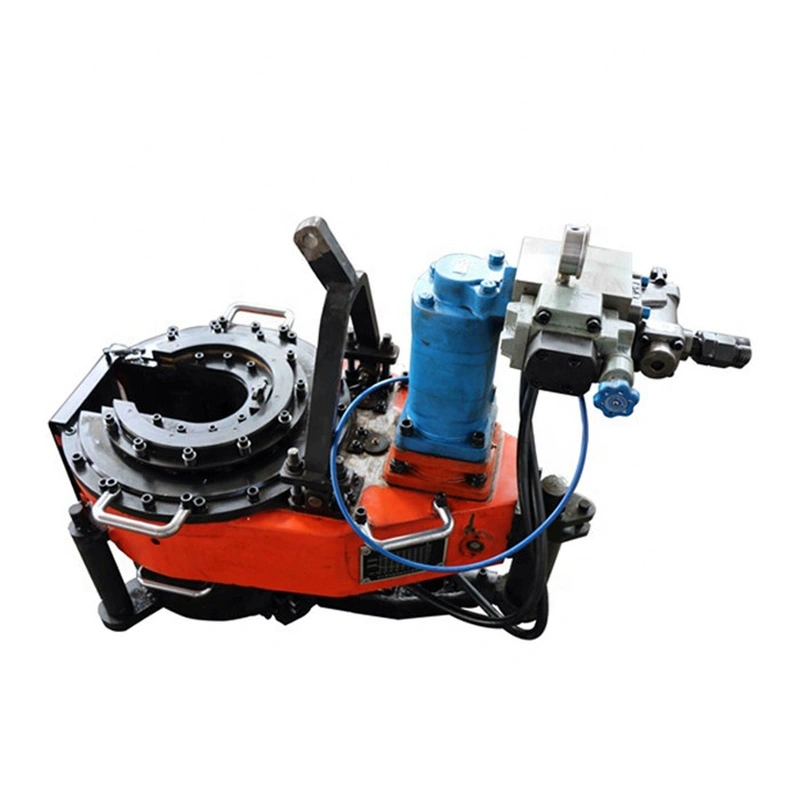

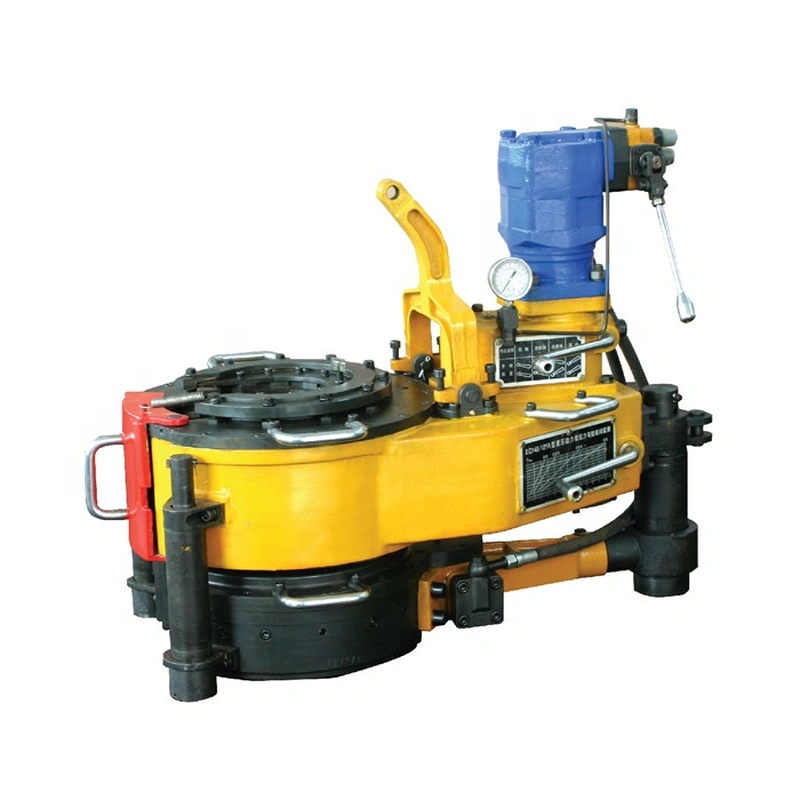

XQ series hydraulic tubing power tong

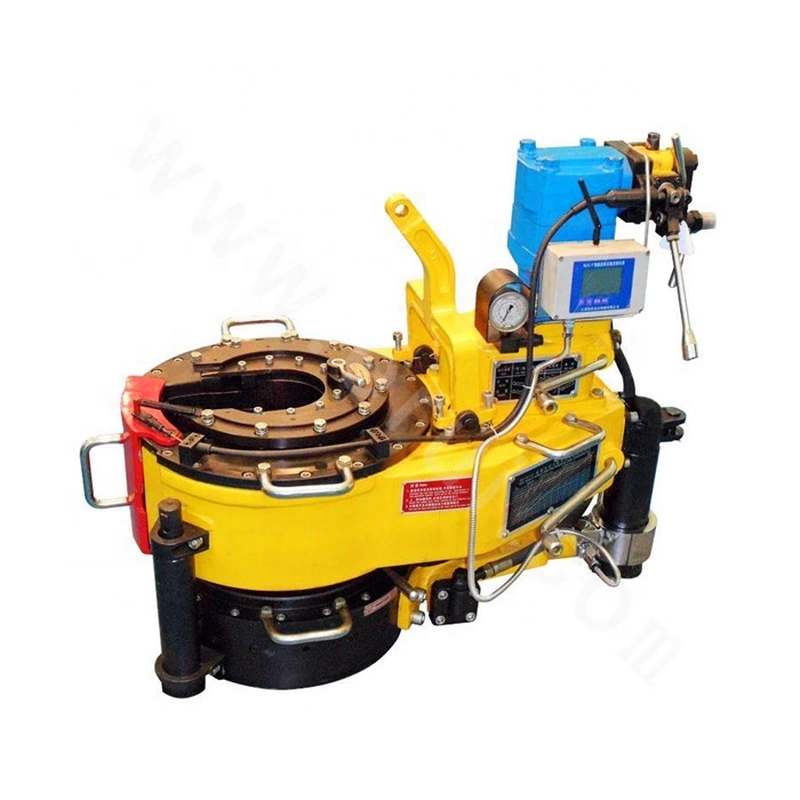

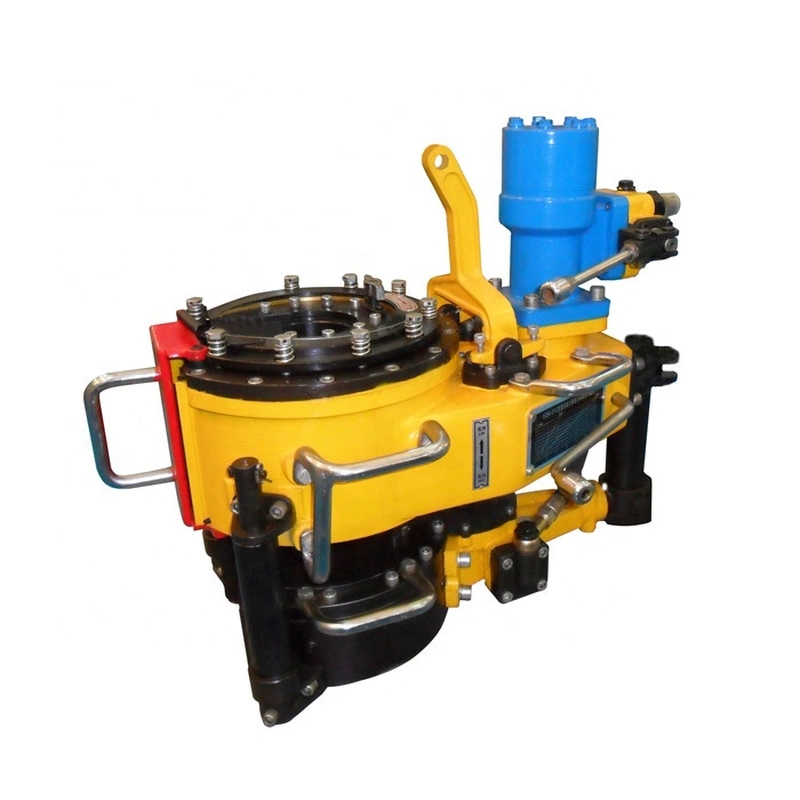

XQ series hydraulic power tongs adopt inner cam rolling-up clamping mechanism, with a hydraulic backup tong. It is an ideal tool for makeup or breakout of various of tubings, and small sizes of casings and drill pipes in workover operation. The tong with extra long rod is available for backup tong to grip tubing body. The power tong also can be equipped with automatic torque control system.

The master tongs and backup tongs will work together if workers operate the manual reversing valve. Both the master tongs and backup tongs adopt two-way clamping mechanism of the internal curved surface roller grade climbing to clamp the tubing. Their structure are simple but reliable. The master tongs are equipped with automatic safety-gates which have functions of safety and protection. The tongs have torque control systems.

Description

It can equip bilateral sequence control apparatus that is specialized in tubing tong according to the need, so it can realize that the backup tong clamps the tubing tong in advance of master tong sand it is more reliable and safer to make up or break out tubing.

Model			XQ89/3Y3YC	XQ114/6YB	XQ140/12Y	XQ140/12Y-T
Applicable range main tong		mm	60-89	60-114	60-140	48-140
Applicable range main tong		in	23/8~31/2	23/8~41/2	23/8~51/2	1.9~51/2
Applicable range backup tong		mm	60-114	73-141.5	73-156	60-156
Applicable range backup tong		in	27/8~41/8	27/8~51/8	27/8~61/8	23/8~61/8
Hi-gear rated tofque		kN.m	1100	1500	2600	2600
Hi-gear rated tofque		ft.lbf	811	1106	1918	1918
Lo-gear rated tofque		kN.m	3300	6000	12000	12000
Lo-gear rated tofque		ft.lbf	2213	4425	8851	8851
Ratek Speed	High gear	rpm	90	85	72	72
Ratek Speed	Low gear	rpm	30	20	14	14
Rated pressure		MPa	10	11	12	12
Rated pressure		psi	1450	1595	1740	1740
Max.oil supply		L/min	80	100	120	120
Max.oil supply		gpm	21	26	32	32
Size		mm	650x430x550	750x500x600	1024x582x539	1050x620x900
Size		in	25.6x16.9x21.7	29.5x19.7x23.6	40.3x22.9x21.2	41.3x24.4x35.4
Weight		kg	158	220	480	480
Weight		lb	348	485	1060	1060

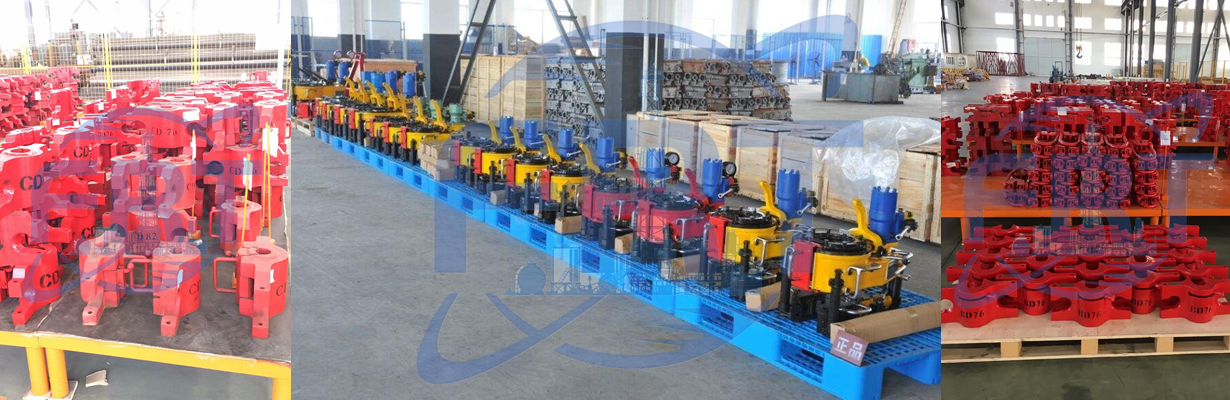

Packing&Shipping

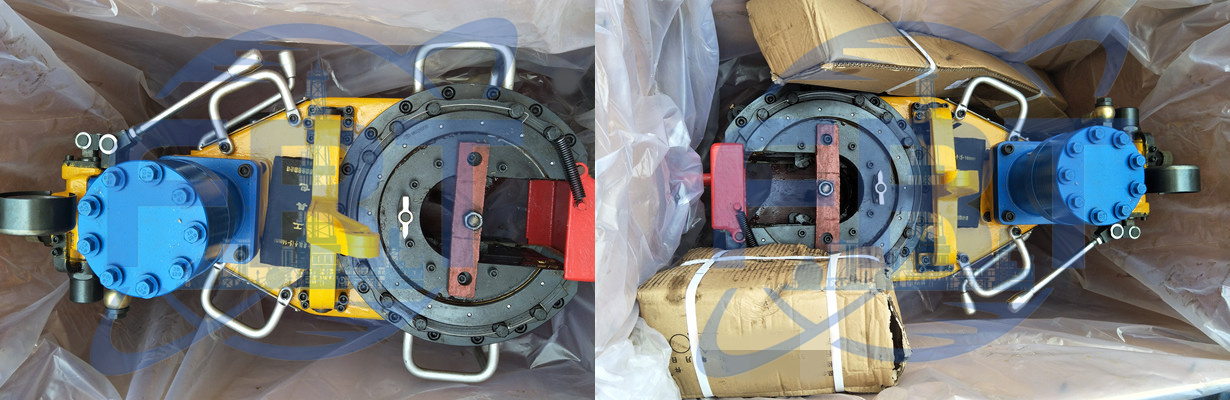

The power tong will be packed in plywood wooden box.

Goods will be delivered by sea, train, truck, etc.
