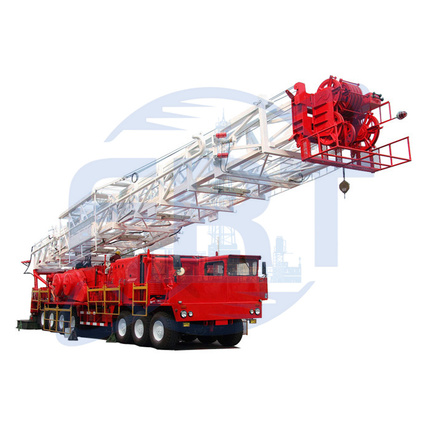

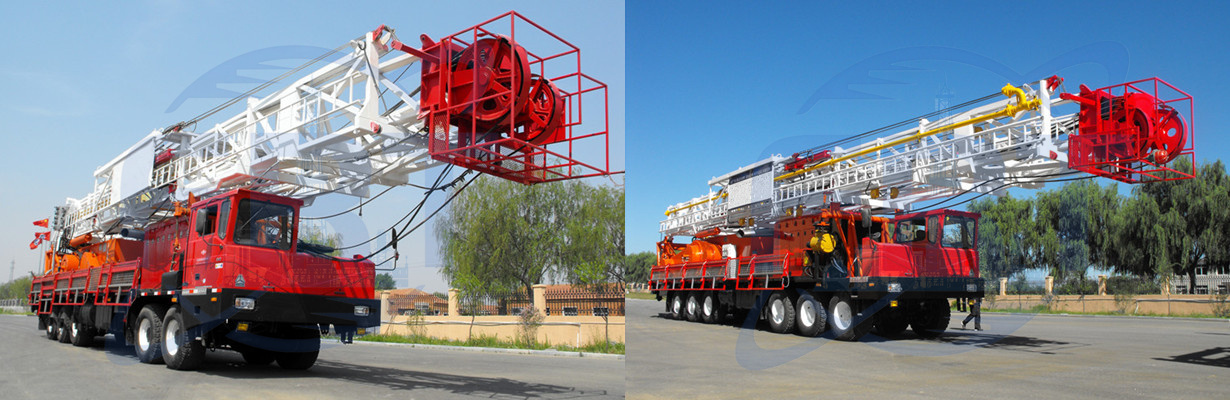

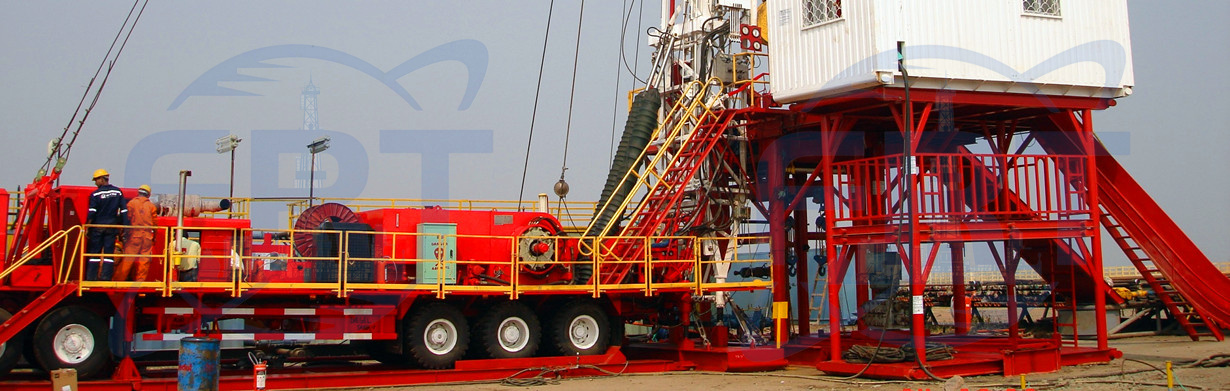

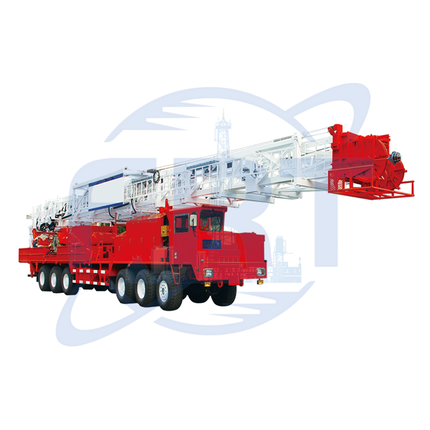

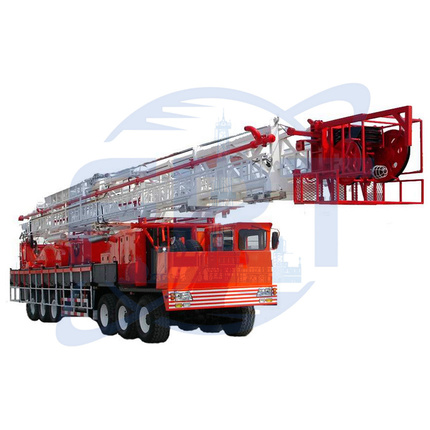

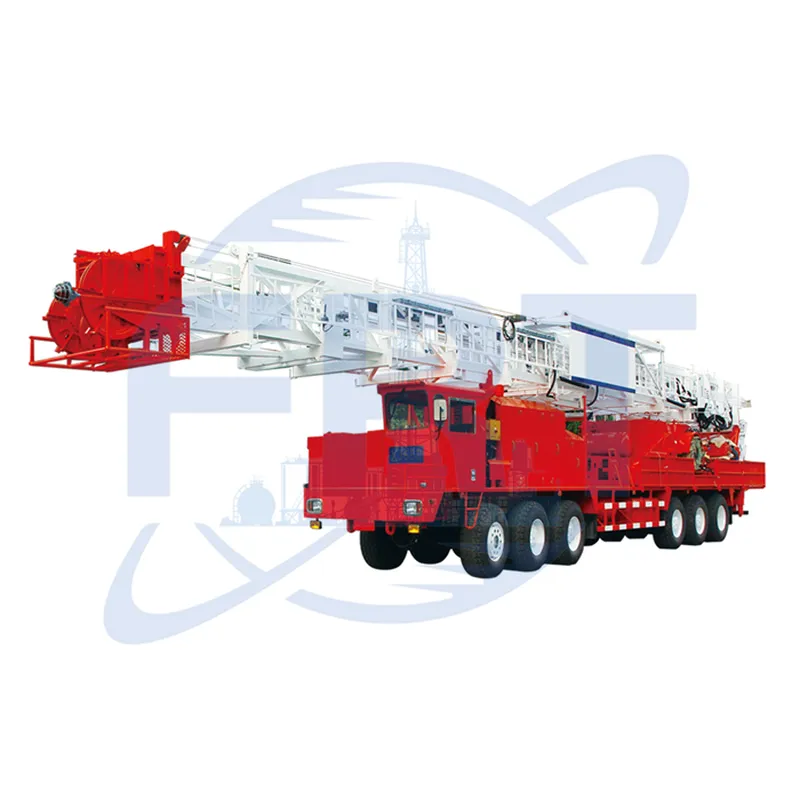

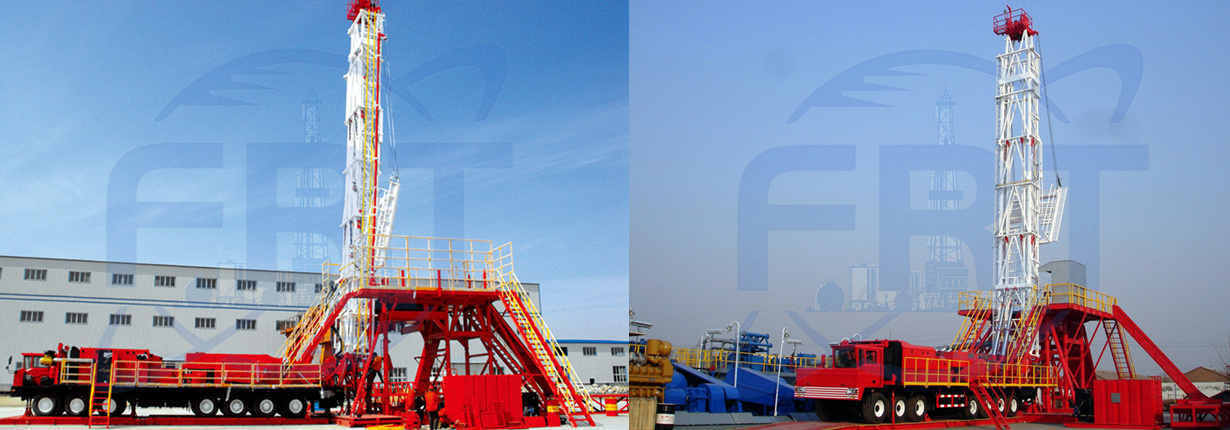

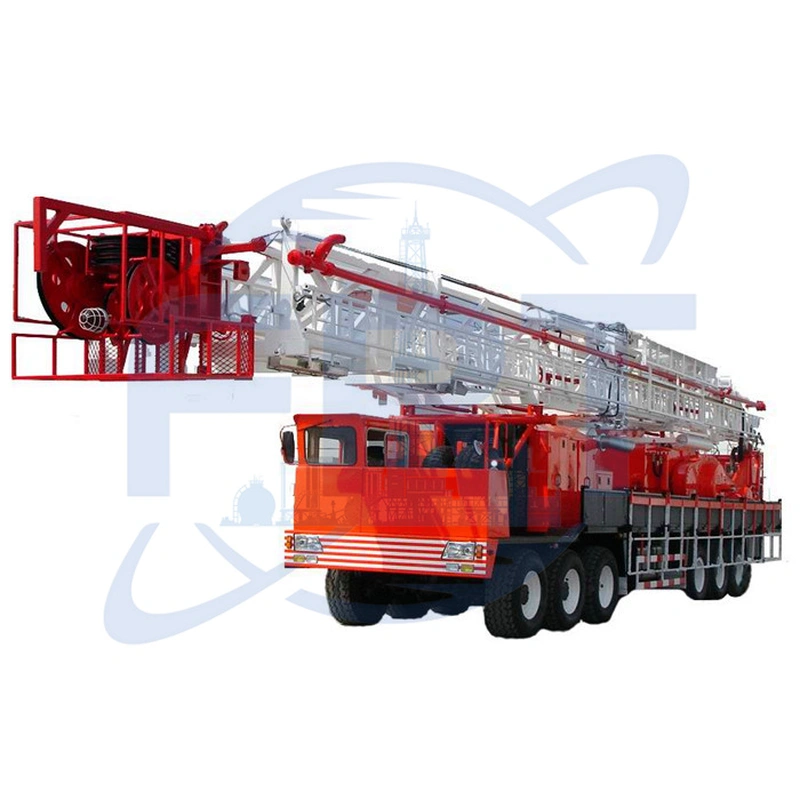

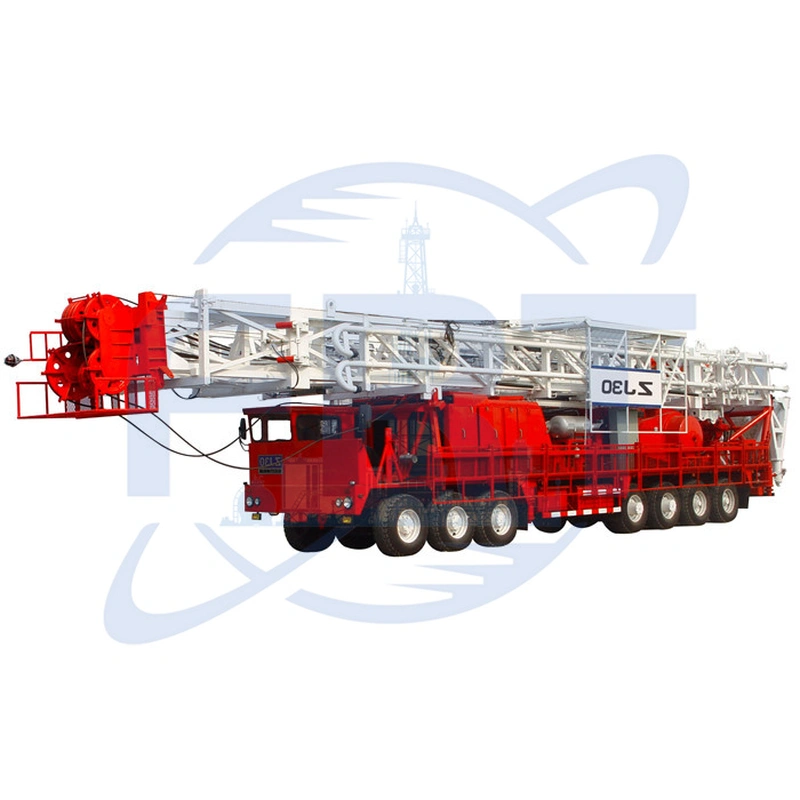

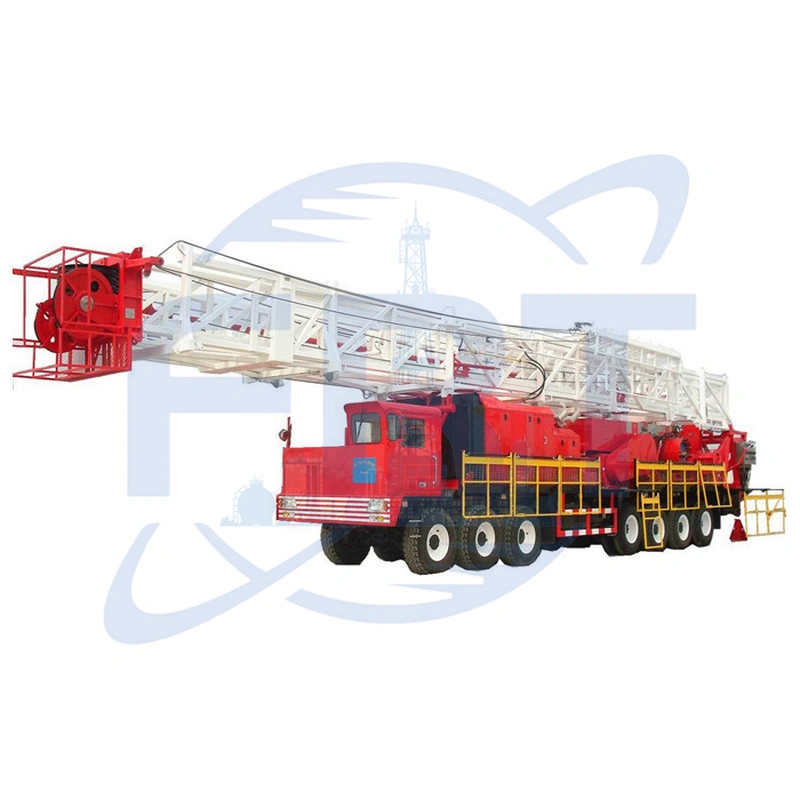

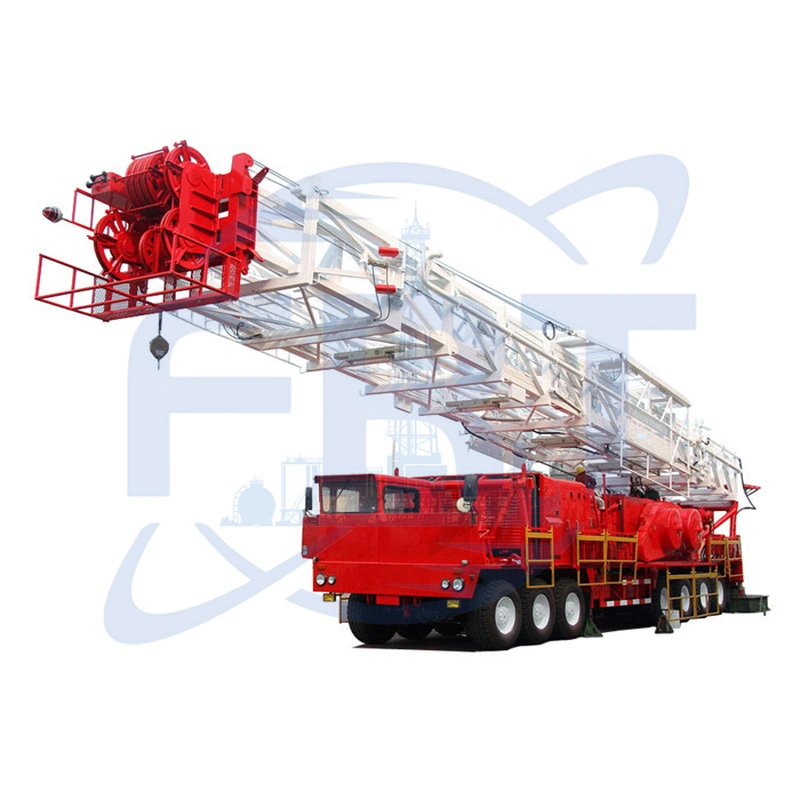

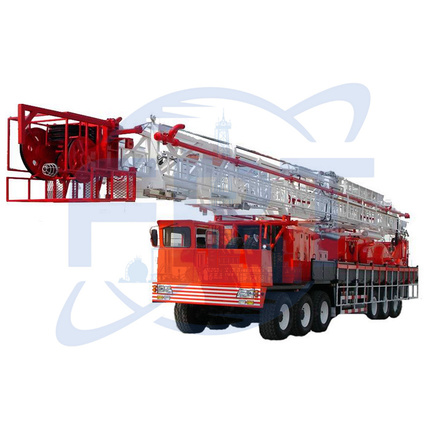

ZJ20/1580CZ truck mounted hydraulic rig is suitable for drilling operation of shallow wells which is less than 2000m, heavy repair operations of oil and gas wells and water well drilling operations. This light truck mounted mechanical drill rig self-developed by our company. Through years of technology innovation and continuous improvement, it has become more mature and reliable.
Application
Item | Technical specification | |
1 | Model | ZJ20/1580CZ |
2 | Drilling depth (4 1/2" Drill Pipe) (m) | 2000 |
3 | Overhaul depth (3 1/2" Drill Pipe)(m) | 5500 |
4 | Max. hook load (kn) | 1580 |
5 | Hook speed (m/s) | 0.2 to 1.4 |
6 | Mast (m) | 35 |
7 | Mast type | A-mast |
8 | Engine power(kW) | 470 |
9 | Hydraulic transmission box | M6620AR |
10 | Transmission type of mechanical drill equipment | Hydraulic + Mechanical |
11 | Traveling system | 5 x 4 |
12 | Main rope diameter (mm) | φ29 |
13 | Hook Block model | YG160 |
14 | Swivel model | SL160 |
15 | Rotary table model | ZP175 |
16 | Chassis model | XDP60/12x8 |
17 | Approach / departure angle | 26"/18" |
18 | Min. ground clearance(mm) | 311 |
19 | Max. Gradeability | 26% |
20 | Min. turning diameter (m) | 38 |
21 | Overall dimension (m) | 20.5 x 3.05 x 4.4 |
22 | Main unit mass (kg) | 65000 |
Our company is committed to study the unconventional oil and gas equipment, and oil and gas exploration equipment under special environment such as offshore, desert, shallow, rainforest and cold weather (polar region). At the same time, mechanization and intellectualization of equipment are improved and developed continuously. We developed the cold weather drilling rigs that can adapts to the 45℃ to -60℃ temperature, the series of drilling rig are exported to high-end market such as Russia and Canada. The truck-modular rigs and free-standing drilling rigs can meet the different requirements from the customer.
