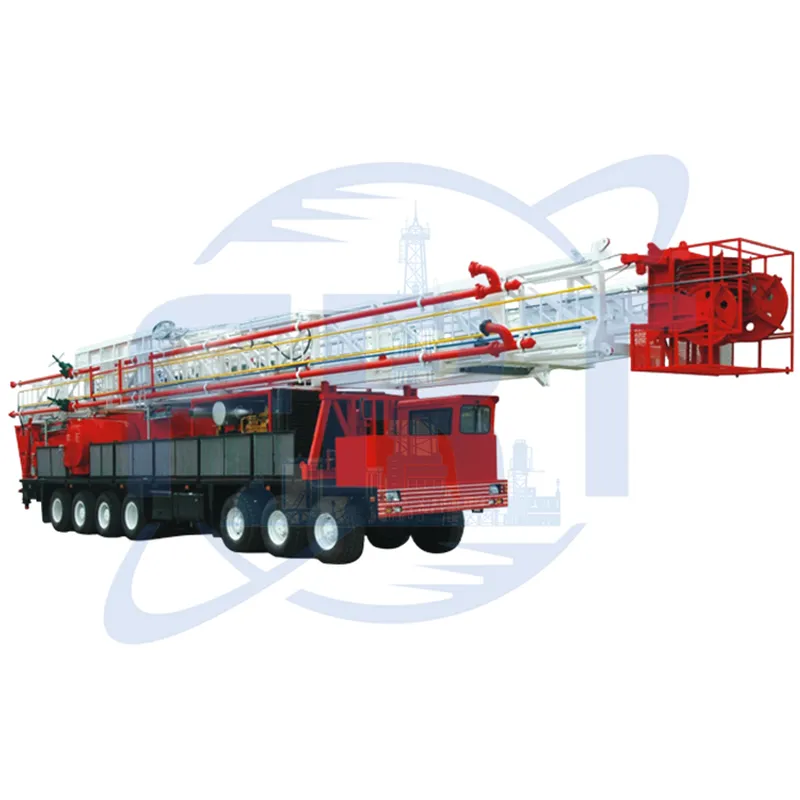

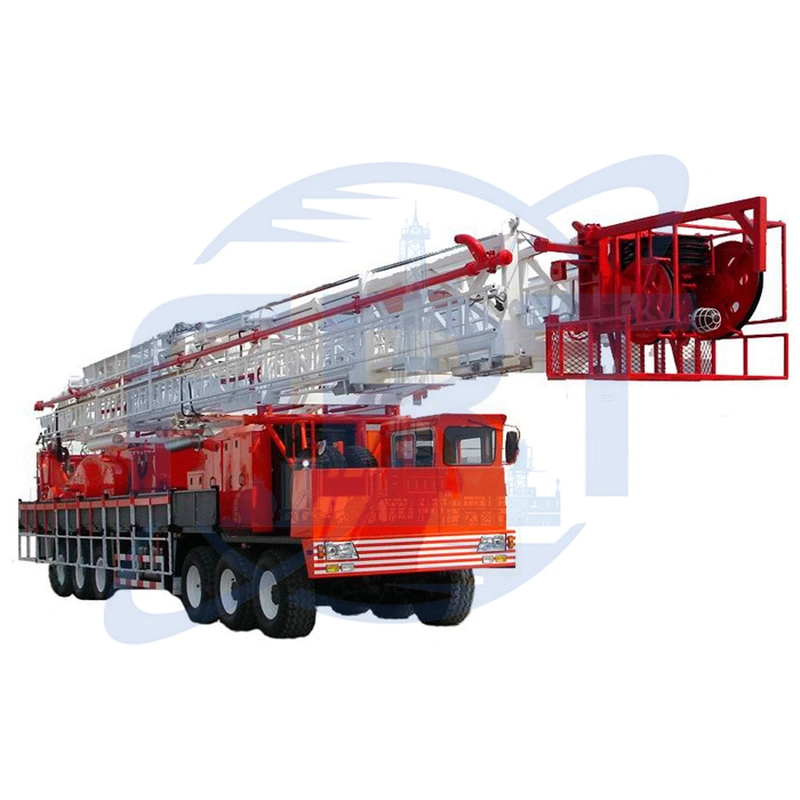

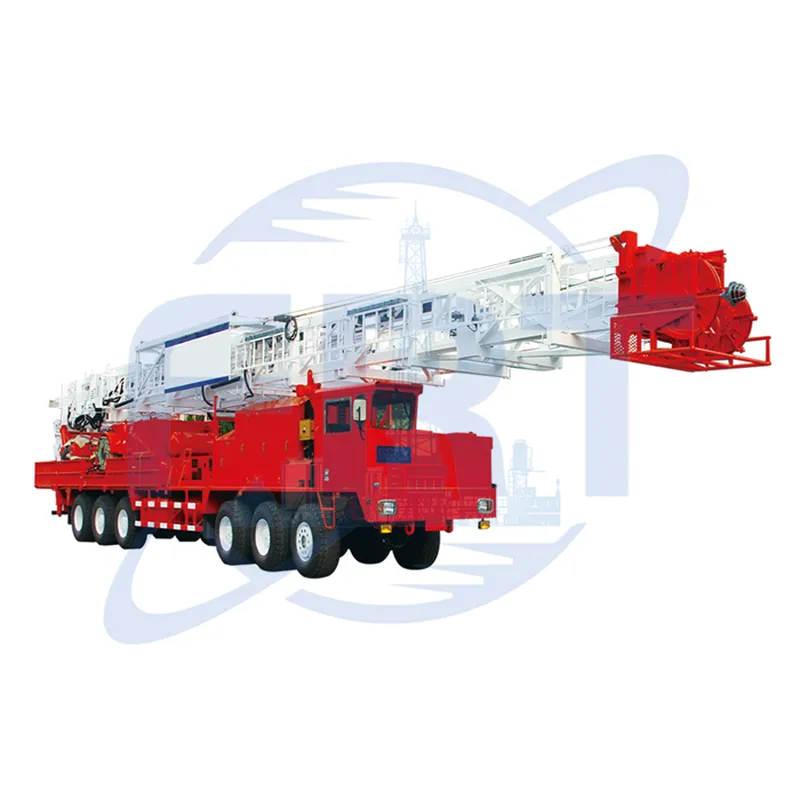

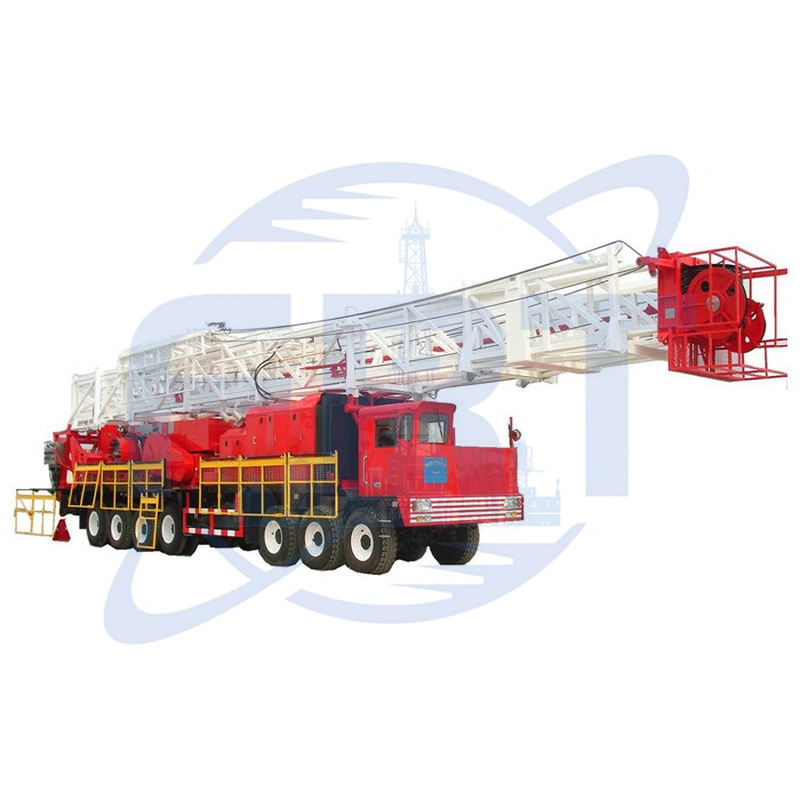

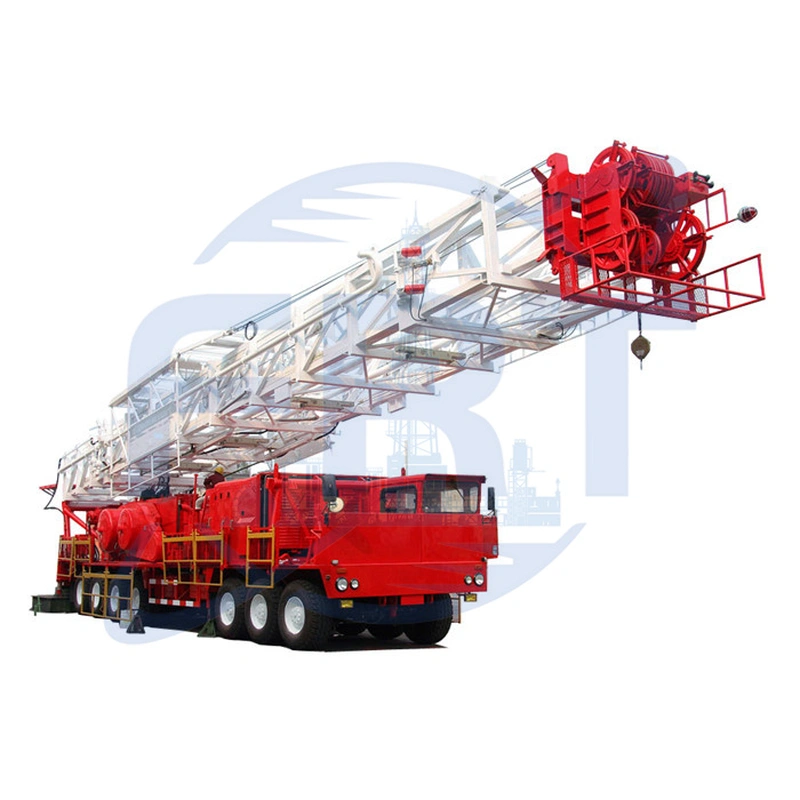

Oilfield truck-mounted drilling rig

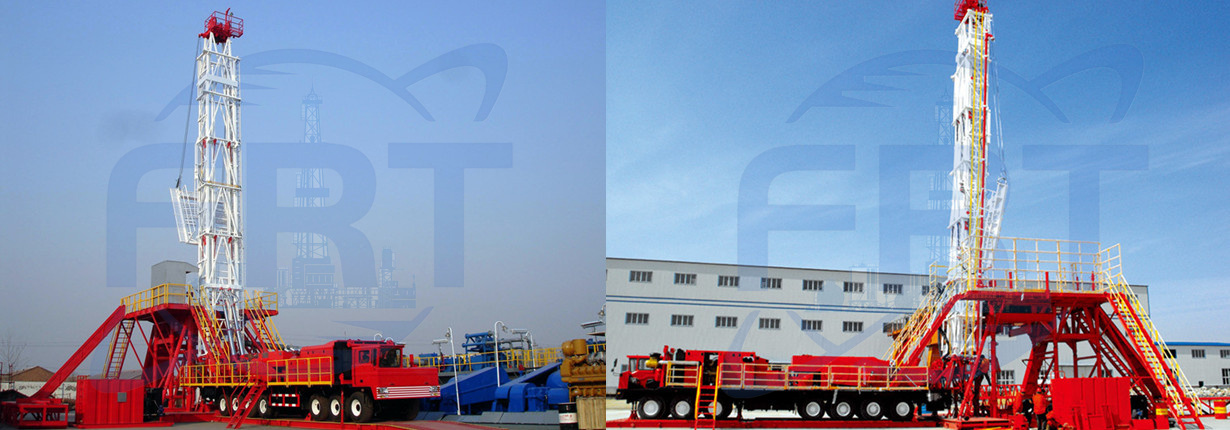

Description

The truck mounted drilling rigs put all parts of power system, draw-works, mast, traveling system and transmission system on the self-propelled chassis. It has the characteristics of heavy workload, reliable performance, strong cross-country ability, convenient for transportation, low cost for operation and moving.

Application

The truck mounted mechanical drill equipment series are with the drilling depth of 1000m, 1500m, 2000m, 3000m and 4000m, which can adapt to middle and shallow well drilling operation. We can also design rigs applicable to cold, desert, plateau and other special environmental requirements of customers.

Product Paramenters

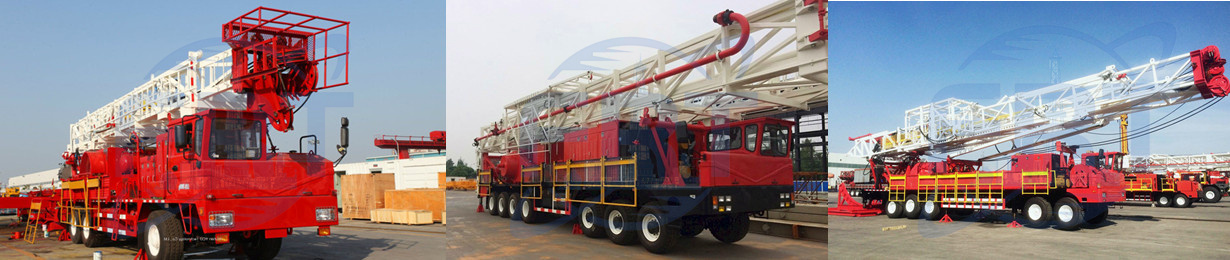

Features of Truck Mounted Drilling Rig

1. The power system uses world famous engine with reliable performance.

2. The transmission system adopts Allison transmission case with flexible connection, which features smooth transmission, little impact and long duration.

3. The truck adopts petroleum-purposed vehicle chassis and uses many vehicle design technologies, such as heavy load wide axles, low-profile tires, high intensity main beam, hydraulic steering mechanism, double line brake system, etc.

4. The truck has good cross-country and driving performance, which can satisfy the complicate conditions of oilfields.

6. The mast is two-section front open and front tilting mast. The raise and fall down of the mast is realized by hydraulic cylinders, which design and manufacture meet with API 4F specification.

5. Centralized control of electricity, gas and hydraulic systems. The main components adopt imported elements of famous brands.

Item	Name	Parameter
Item	Name	ZJ10/900CZ	ZJ15/1350CZ	ZJ20/1580CZ	ZJ30/1800CZ	ZJ40/2250CZ
1	Drilling depth (4 1/2" Drill Pipe) (m)	1000	1500	2000	3000	4000
2	Overhaul depth (3 1/2" Drill Pipe)(m)	2500	4500	5500	6500	7000
3	Max. hook load (kn)	900	1350	1580	1800	2250
4	Hook speed (m/s)	0.2 to 1.4
5	Mast (m)	29/31	33	35	38/39	38/39
6	Mast type	A-mast	A-mast	A-mast	A-mast	A-mast
7	Engine power(kW)	261	403	470	2 x 403	2 x 470
8	Hydraulic transmission box	4700 OFSR	M5620AR	M6620AR	2xM5620AR	2xM5620AR
9	Transmission type of mechanical drill equipment	Hydraulic + Mechanical
10	Traveling system	4 x 3	5 x 4	5 x 4	6 x 5	6 x 5
11	Main rope diameter (mm)	φ26	φ26	φ29	φ32	φ32
12	Hook Block model	YG90	YG110	YG160	YG180	YG225
13	Swivel model	SL110	SL135	SL160	SL225	SL225
14	Rotary table model	ZP175	ZP175	ZP175	ZP275	ZP275
15	Chassis model	XDP40/8x6	XDP50/10x8	XDP60/12x8	XDP70/14x8	YG225
16	Approach / departure angle	22"/18";	30"/20"	26"/18"	26"/18"	26"/18"
17	Min. ground clearance(mm)	311
18	Max. Gradeability	26%	26%	26%	26%	26%
19	Min. turning diameter (m)	28	30	38	41	41
20	Overall dimension (m)	16.7 x 3.05 x 4.2	18.8 x 3.05 x 4.3	20.5 x 3.05 x 4.4	22.3 x 3.2 x 4.5	22.3 x 3.2 x 4.5
21	Main unit mass (kg)	50000	58000	65000	82000	85000

Company Introduction

Our products cover more than 10 series with over 180 kinds, including truck-mounted drilling rigs, skid-mounted drilling rigs, trailer-mounted drilling rigs, work over rigs, etc. Our 4000m truck-mounted drilling rig and 4000m trailer-mounted drilling rig is the largest self-propelled drilling equipment in the worldwide, with high-competitive in the international market, providing the advanced drilling equipment for factory drilling.

Our company is committed to study the unconventional oil and gas equipment, and oil and gas exploration equipment under special environment such as offshore, desert, shallow, rainforest and cold weather (polar region). At the same time, mechanization and intellectualization of equipment are improved and developed continuously. We developed the cold weather drilling rigs that can adapts to the 45℃ to -60℃ temperature, the series of drilling rig are exported to high-end market such as Russia and Canada. The truck-modular rigs and free-standing drilling rigs can meet the different requirements from the customer.

FRT regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.

We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
