API 16A BOP spare parts BOP ram seal BOP blind ram

Description

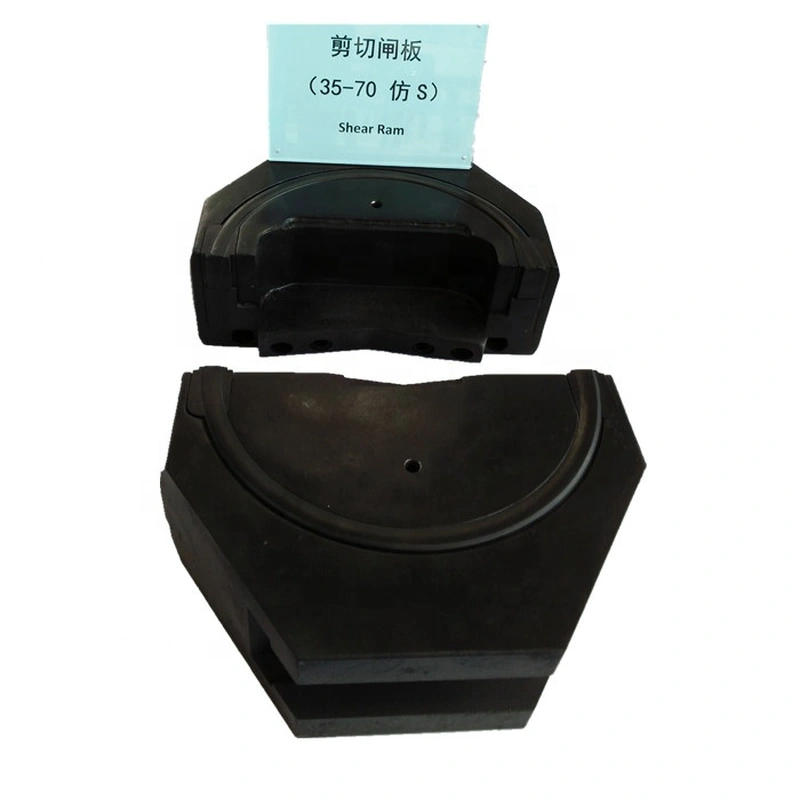

Shear ram can cut pipe the well, blindly close the wellhead, and also used as blind ram when there is no pipe in the well. The installation of shear ram is the same with the original ram.

● In the normal condition used as blind ram, in case of emergency, used as shear ram.

● Shear damper can be repeatedly cut pipe and not damage the blade, The weared the blade can be reused after the repair. We produce the shear ram with shear life in more than five times, Allowed to replace the sealing rubber.

● The ordinary ram blade is integrated with the ram body. ● The ram blade of BOP resistant to high sulfer is separated with the ram body, which is easy to change blade after blade damaged, and make the ram body be able to repeated use.

● The contact sealing surface between top seal of shear ram and blade is large, which effectively reduce the pressure on the rubber sealing surface, and prolong its life.

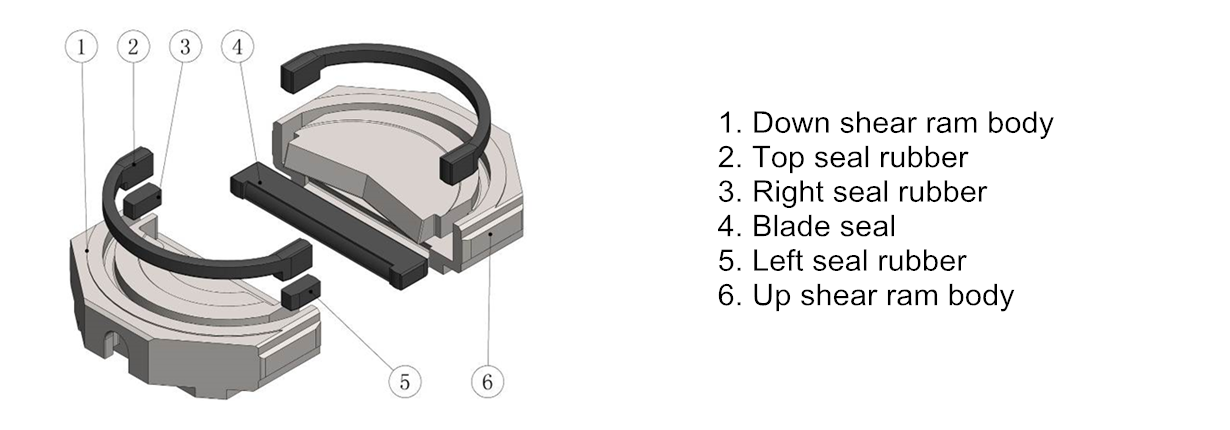

S Type BOP Shear Ram Assembly Structure

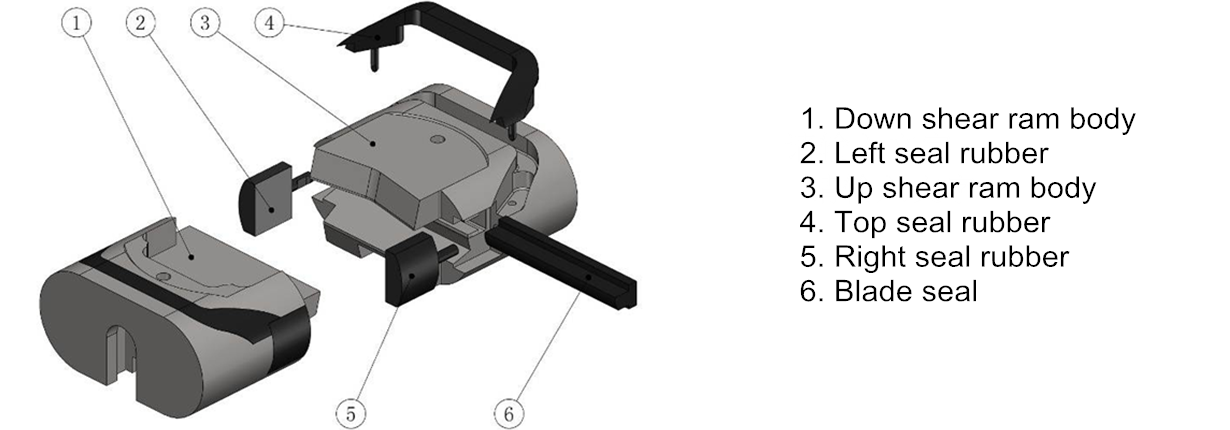

U Type BOP Shear Ram Assembly Structure

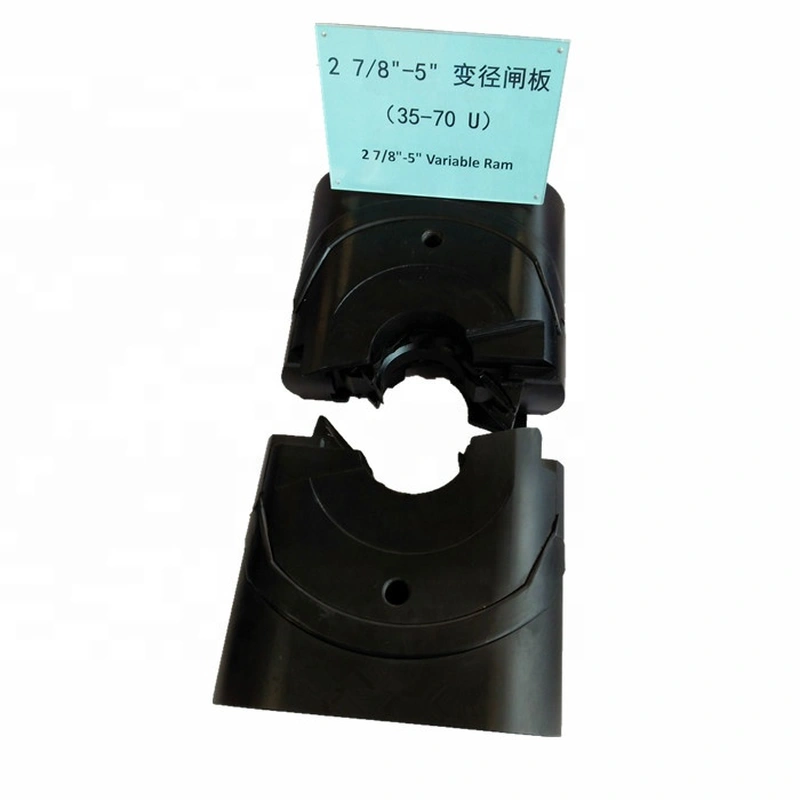

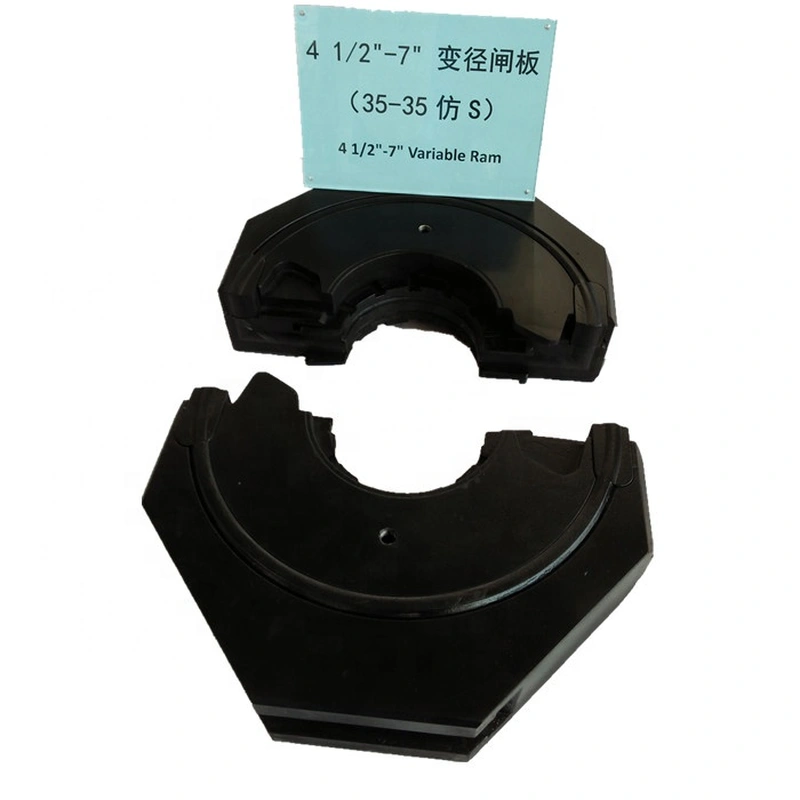

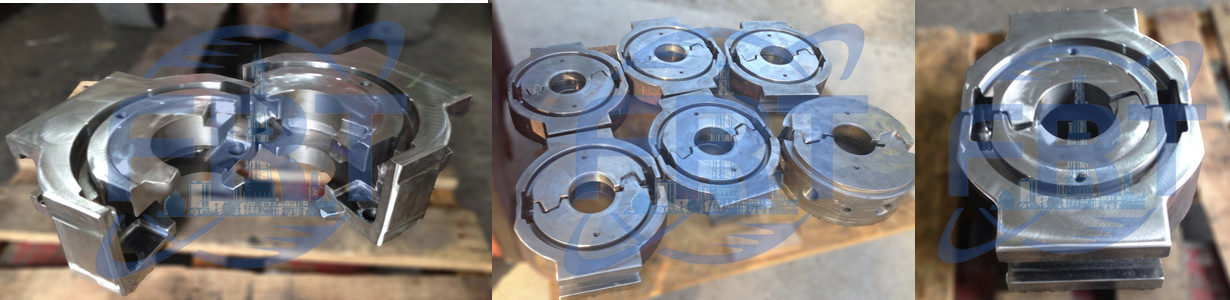

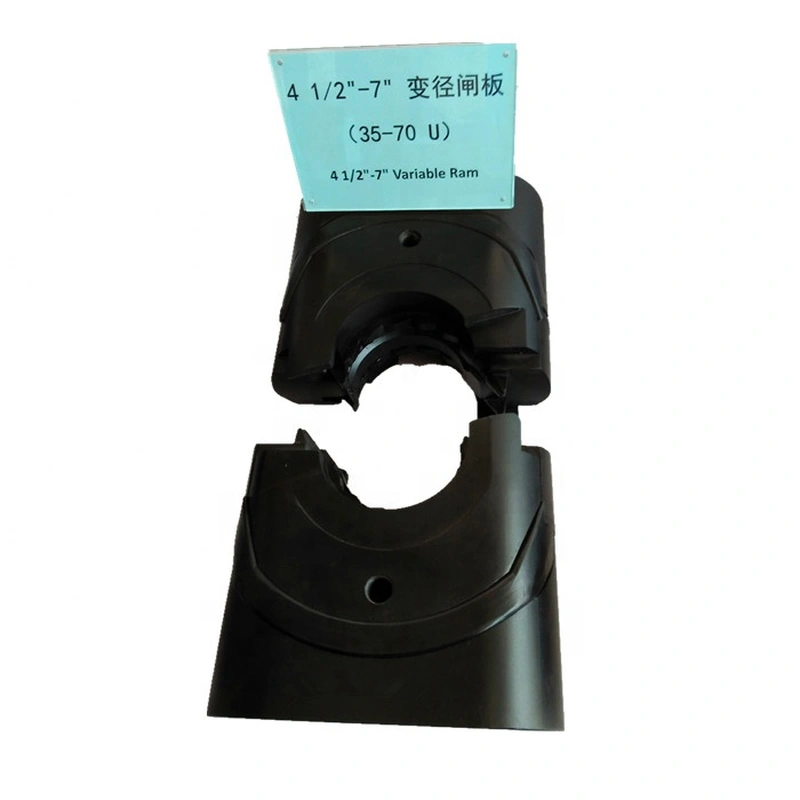

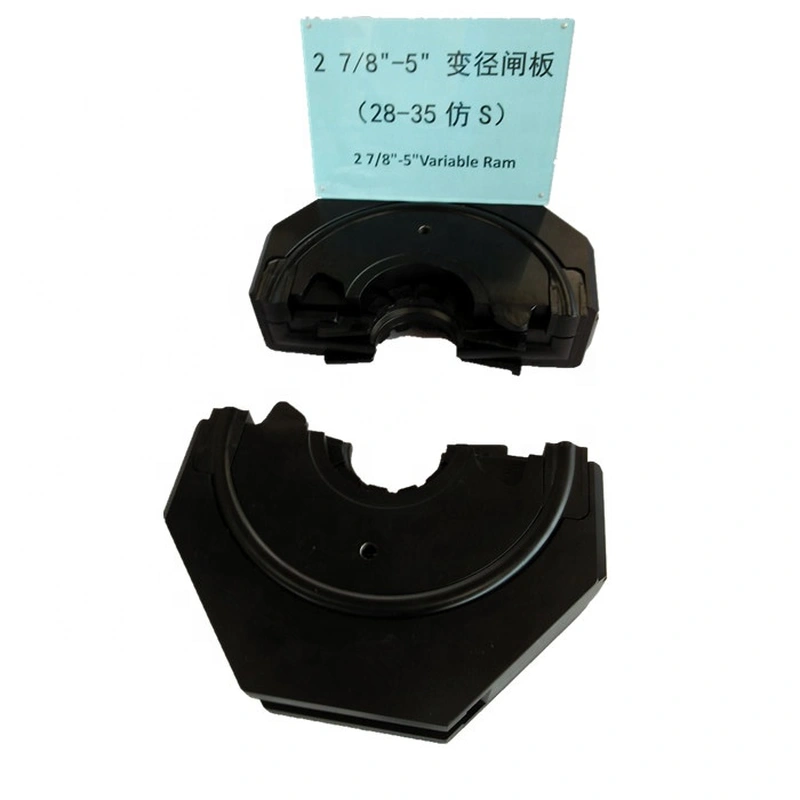

Detailed Images

Packing&Shipping

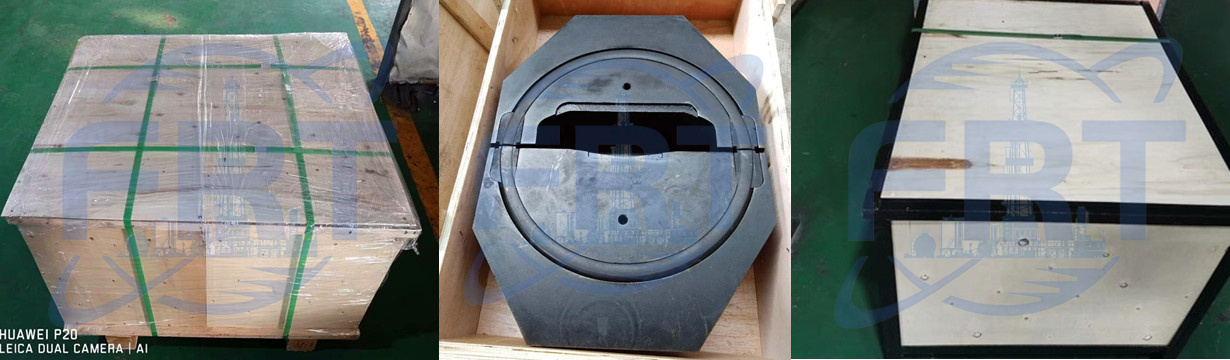

The rams will be packed in plywood wooden box.

Goods will be delivered by sea, train, truck, air, etc.
