1. Scope of application:

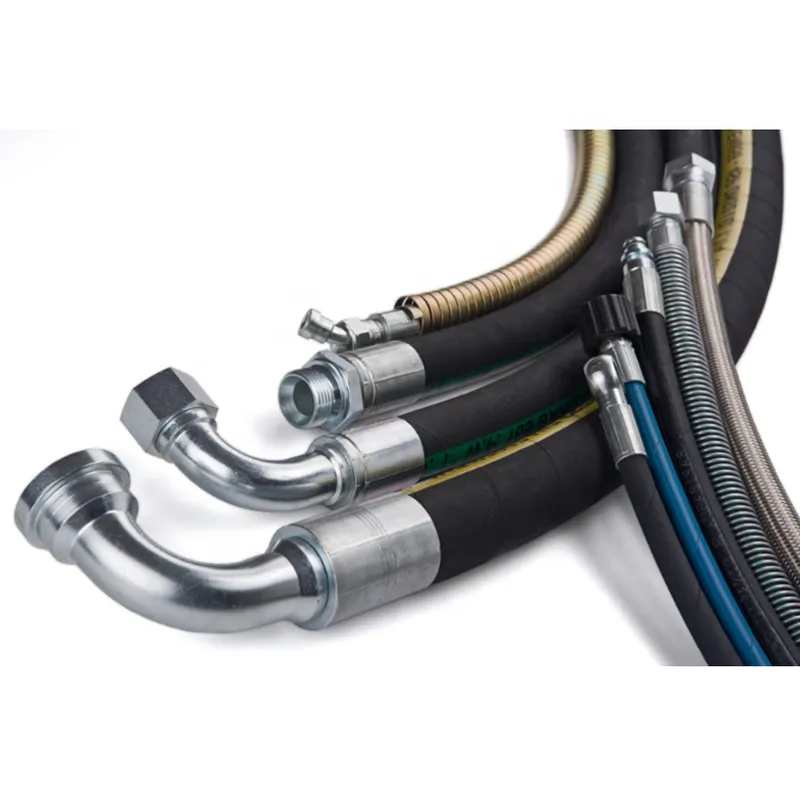

The hose for well control-GNG high-pressure, fire-resistant and heat-insulation hose assembly is mainly used for the hydraulic control of the BOP for drilling and for hydraulic transmission at high-temperature and flammable places in the metallurgic industry.
2. Product classification:

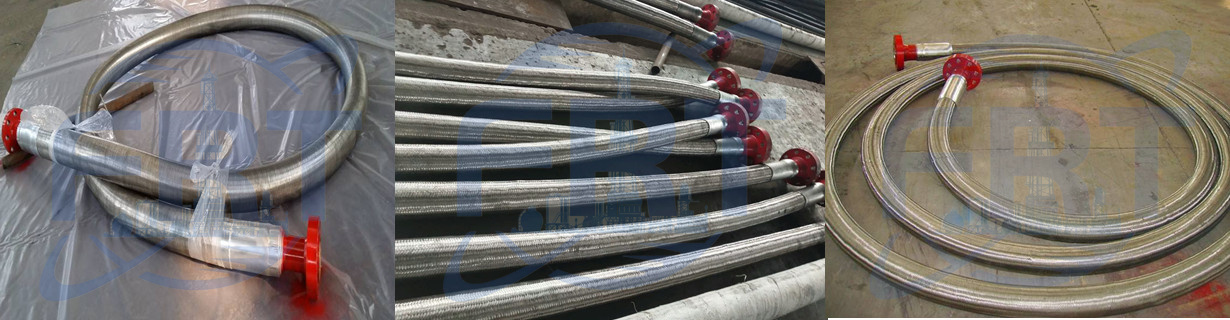

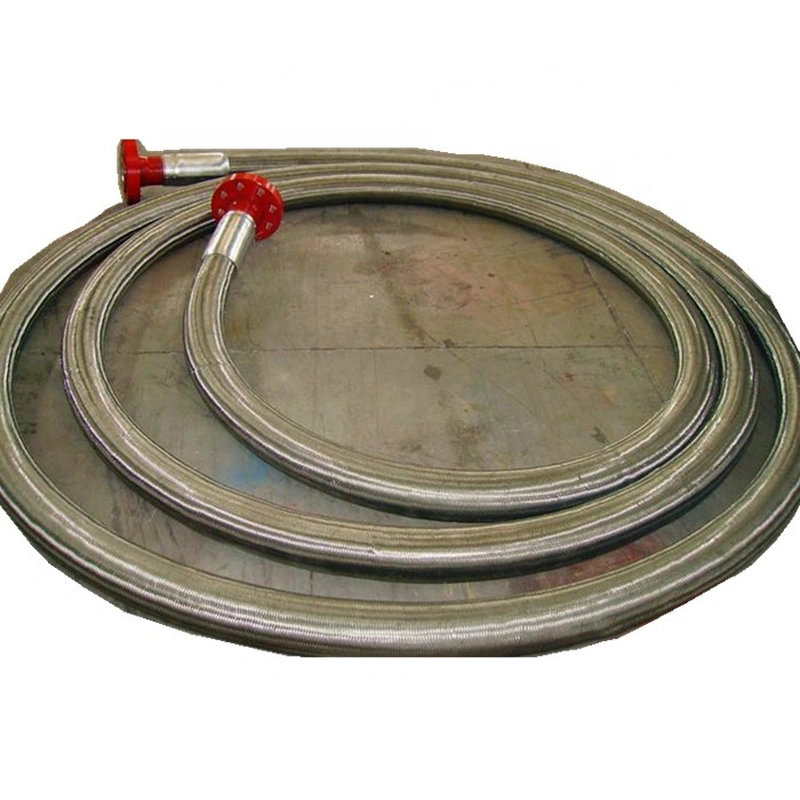

high molecular polymer jacket type, stainless steel armored jacket type and braided stainless steel wire jacket type.
3. Applicable Standard:
API Spec 16D / SY/T5053.2-2002
Specification for hose and indices for technical properties
Nominal inner dia. (mm) | Outer dia. of hose assembly (mm) | Operating Pressure (MPa) | Min. burst Pressure (MPa) | Min. bending radius (mm) | Thread | Operating time (min) with fire-resisting at 750℃ | |
Normal | Limit | ||||||
19 | 44 | 35 | 105 | 280 | NPT LP | 5 | 25 |
50 | 70 | 175 | |||||
22 | 47 | 35 | 105 | 320 | |||
53 | 70 | 175 | |||||
25 | 50 | 35 | 105 | 360 | |||
56 | 70 | 175 | |||||
31.5 | 56 | 35 | 105 | 460 | |||
62 | 70 | 175 | |||||
38 | 63 | 35 | 105 | 560 | |||
69 | 70 | 175 | |||||

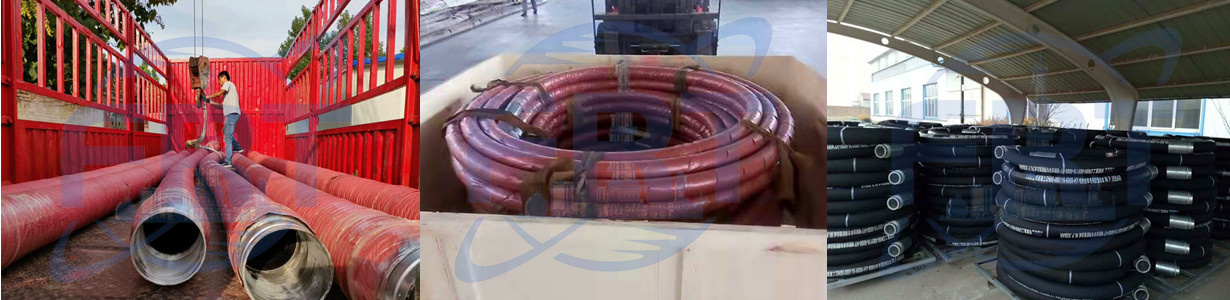

Packing & Shipping
Hoses will be packaged in cartons or plywood cases, then they will be delivered by truck, sea, air, train, etc.
Company Information
The market share of FRT Machinery is growing steadily and rapidly. Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa.
FRT regards continuous learning ability as one of the company’s core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
FRT has a skilled and experienced after sales team geared up for fast response and superior services to our customers at any time. Our Long distance monitoring center is equipped to monitor, diagnose, serve and manage the units delivered. XRR also provides technical training to our customers at regular intervals.
FAQ
1. Can I get samples?
A: Yes, the samples can be provided, but the sample fee (if need too many) and delivery costs need to be paid by your side.
2. Are the pipes in stock?
A: The common types are in stock, but others need to be produced by orders.
3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the hoses according to my own drawings?
A: Yes, we can produce hoses as per your drawings.
