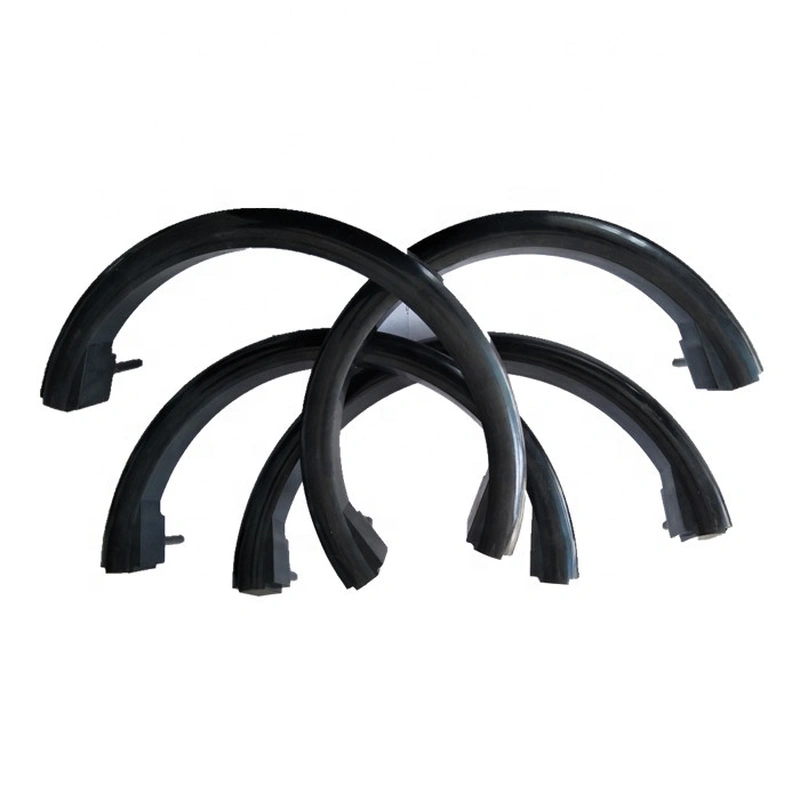

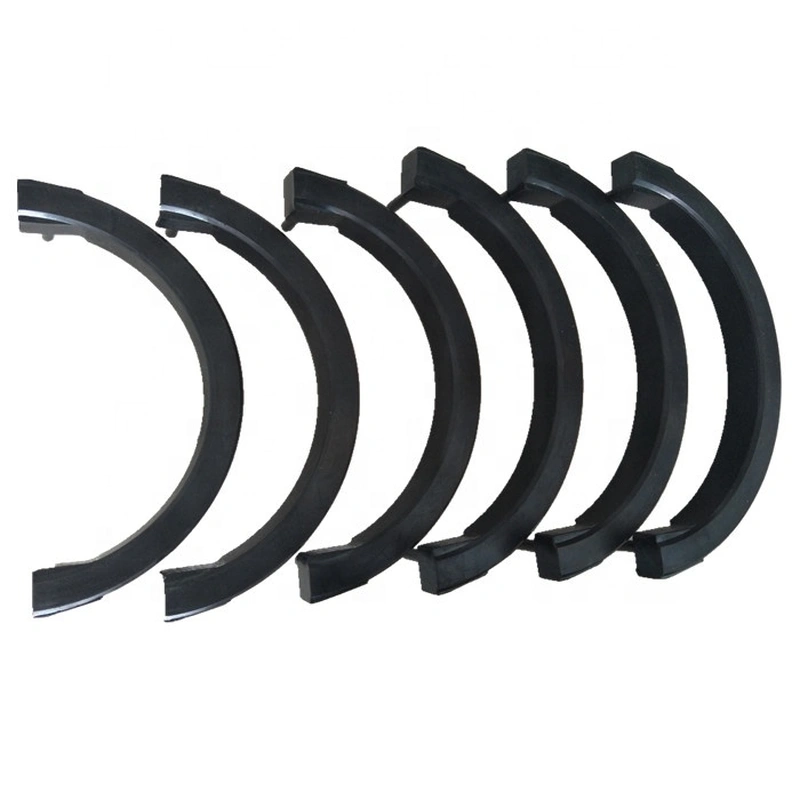

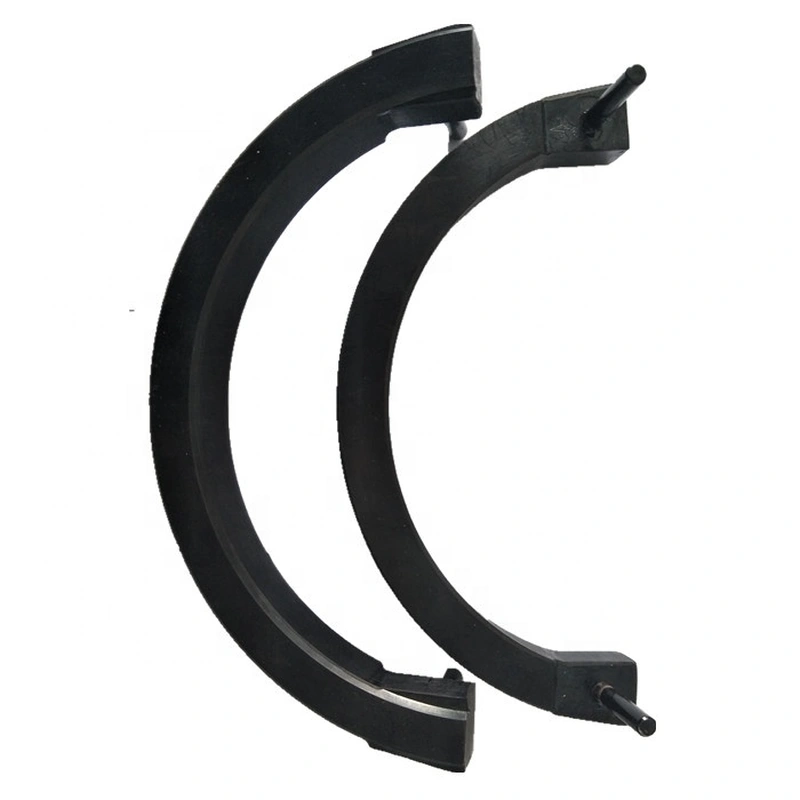

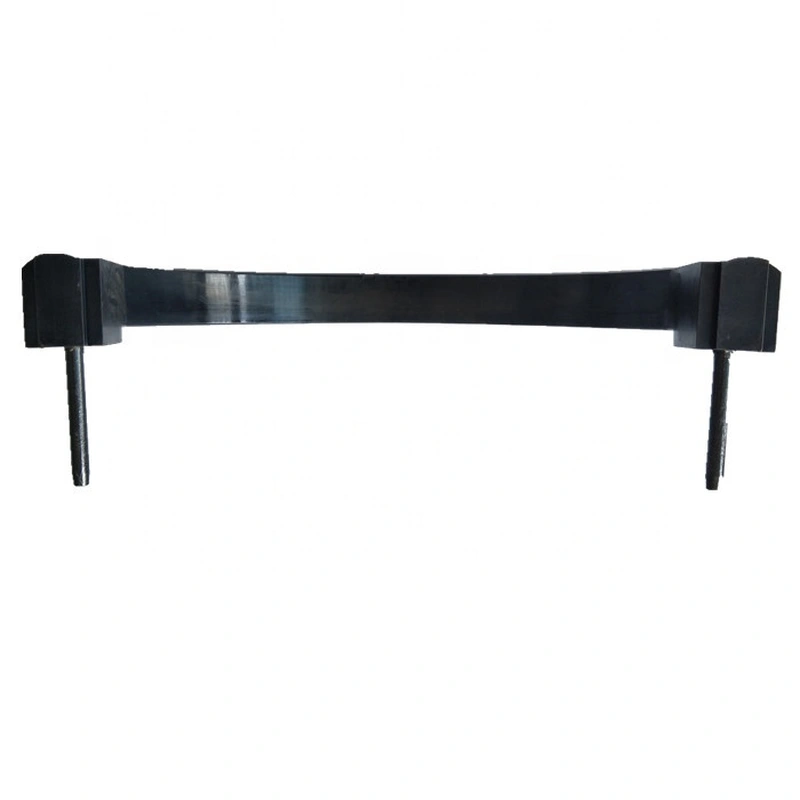

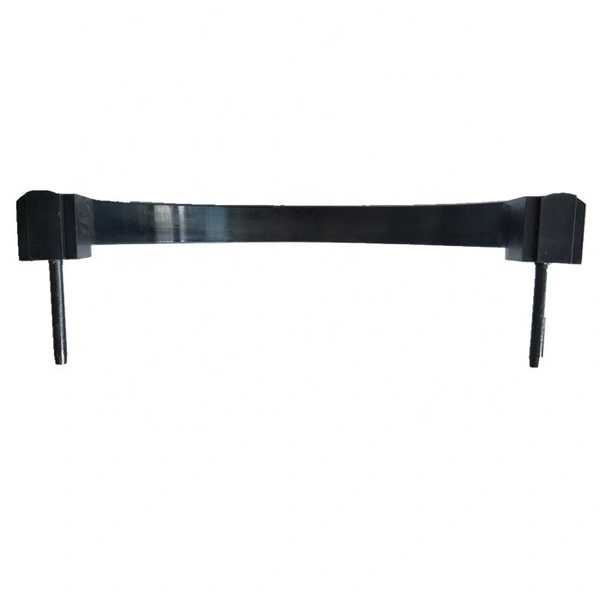

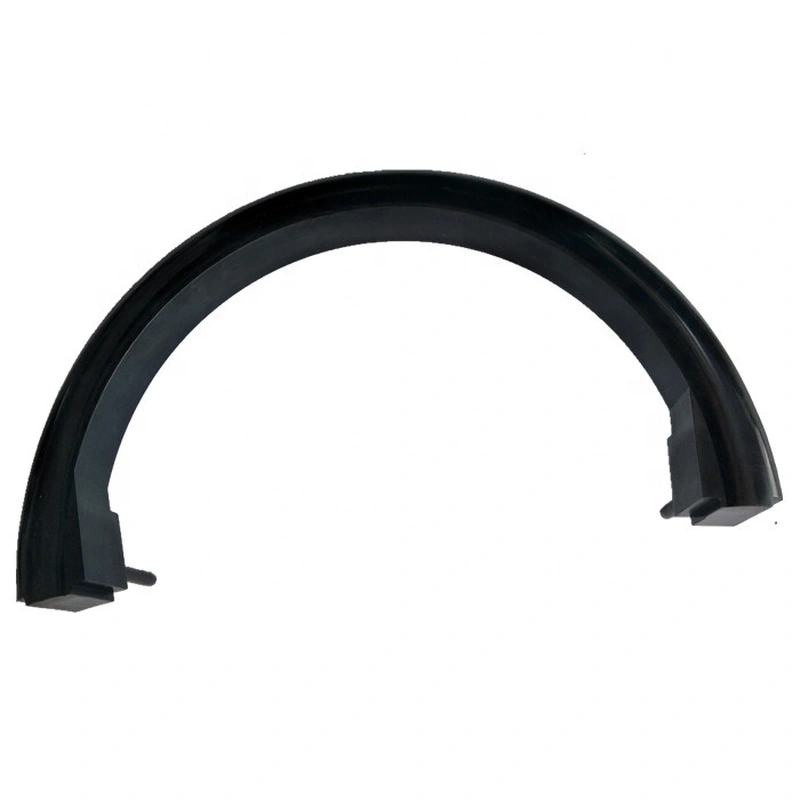

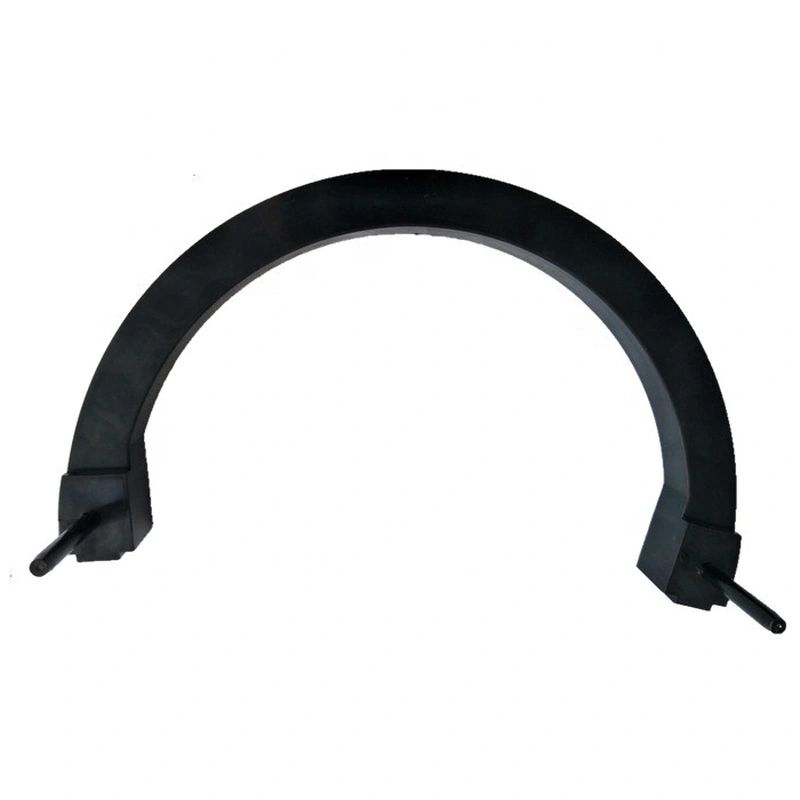

The BOP ram top seal is combined by the main body which is made up of the independent innovation rubber based polymer alloy material and the high strength metal frame, which conforms to the API 16A, SATM D412, D624, D2240 and D471 standard. It is suitable for the drilling work on the oil field, which shares a high cost performance comparing to the other same type packing elements.
Detailed Images
Product Paramenters
BOP spare parts available: top seal, front seal, pipe ram, blind ram, slip ram, shear ram, spherical packer, bonnet, piston, shell, etc.
Suitable BOP brand: SHENKAI, RONGSHENG, XINDE, SHAFFER, CAMERON, HYDRIL ETC.
Physics performance of ram rubber |
| Inspection item | Technical specification ≤35MPa | Technical specification ≥70MPa |
| toughness A | 75±5 | 85±5 |
| 300% tensile toughness Mpa | ≥10 | ≥10 |
| tensile toughness Mpa | ≥19.6 | ≥19.6 |
| elongation rate % | ≥250 | ≥200 |
| permanent distortion % | ≤25 | ≤20 |
| aging rate120℃×24h | ≥0.6 | ≥0.6 |
| brittleness temperature℃ | ≤-18 | ≤-18 |
| brittleness temperature KN/m | ≥40 | ≥40 |
| brittleness temperature Mpa | ≥4 | ≥4 |
Packing&Shipping
1. All parts will be packed in Plywood wooden box.
2. Goods will be delivered by air, truck, train, sea, etc.
The market share of FRT Machinery is growing steadily and rapidly. Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa. FRT regards continuous learning ability as one of the company's core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills.
FRT has a skilled and experienced after sales team geared up for fast response and superior services to our customers at any time. Our Long distance monitoring center is equipped to monitor, diagnose, serve and manage the units delivered. FRT also provides technical training to our customers at regular intervals.
FAQ
1. Can I get samples?
A: Yes, the samples can be provided, but the sample fee and delivery costs need to be paid by your side.
2. Are the seals in stock?
A: The common types are in stock, but others need to be produced by orders.
3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.
4. Can you produce the BOP seals according to my own drawings?
A: Yes, we can produce seals as per your drawings.
