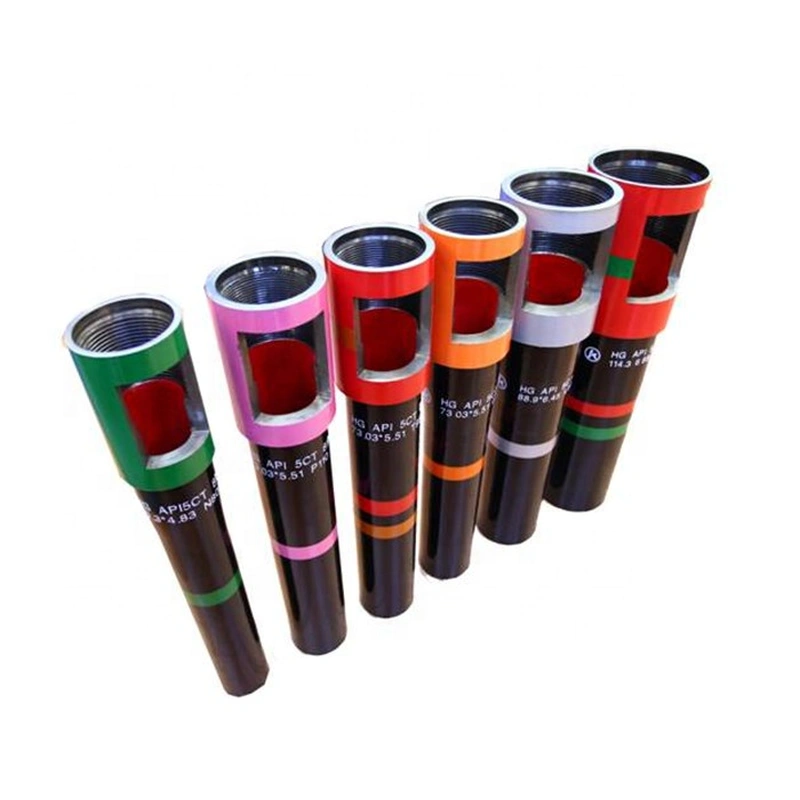

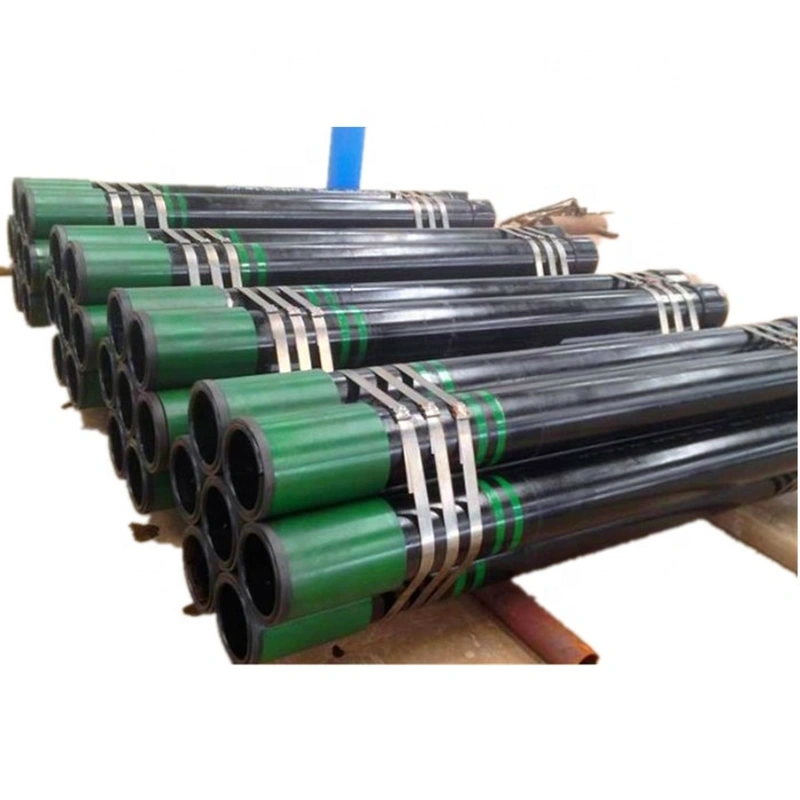

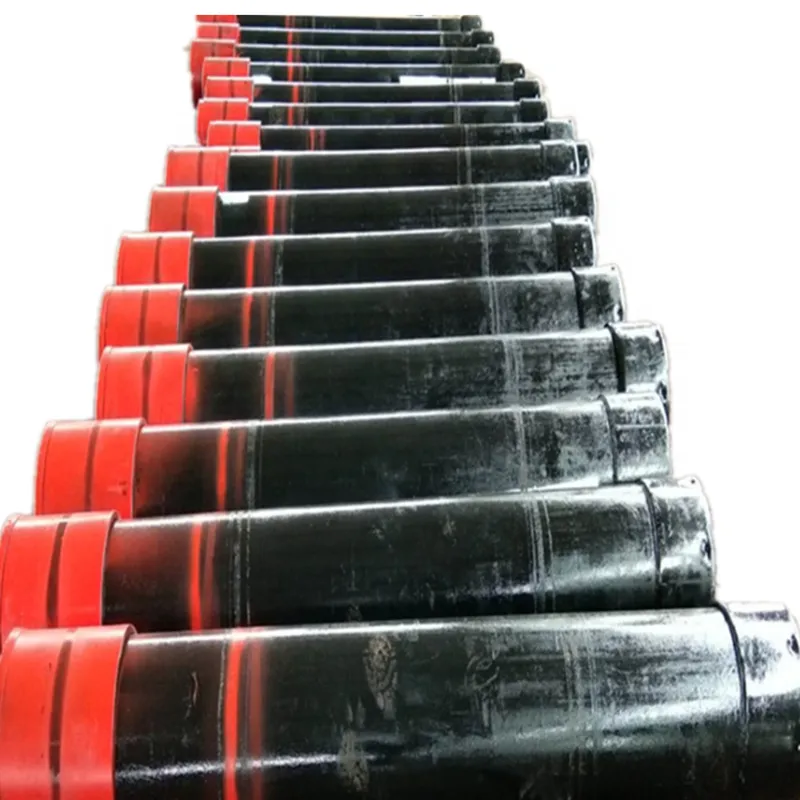

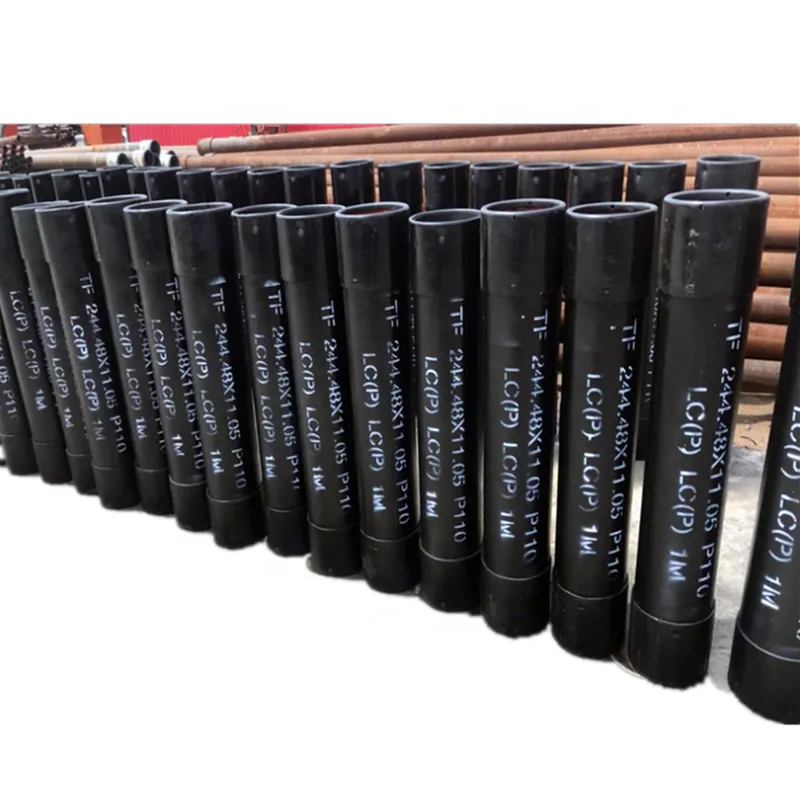

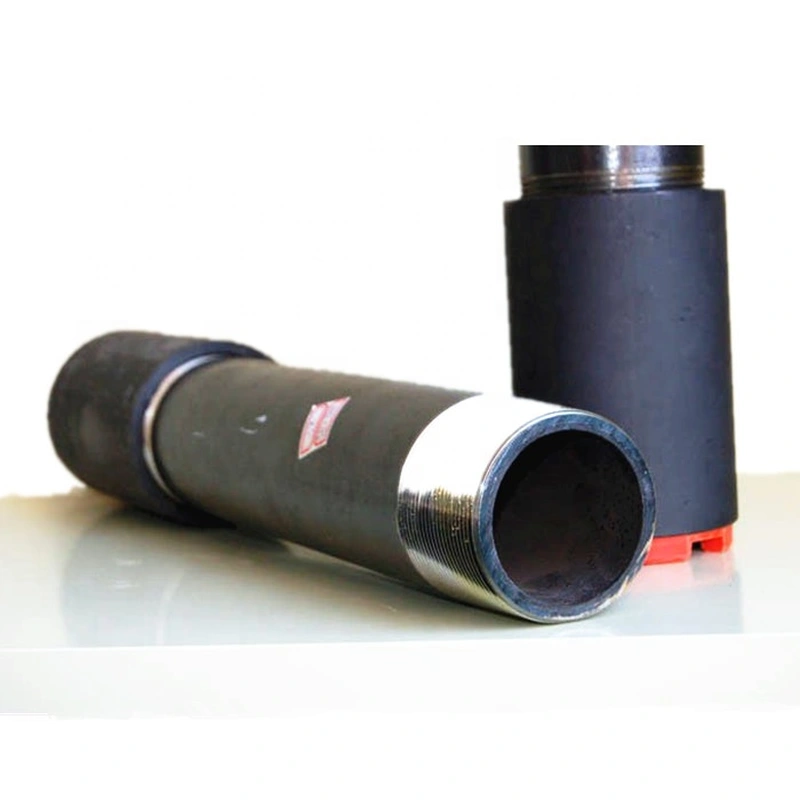

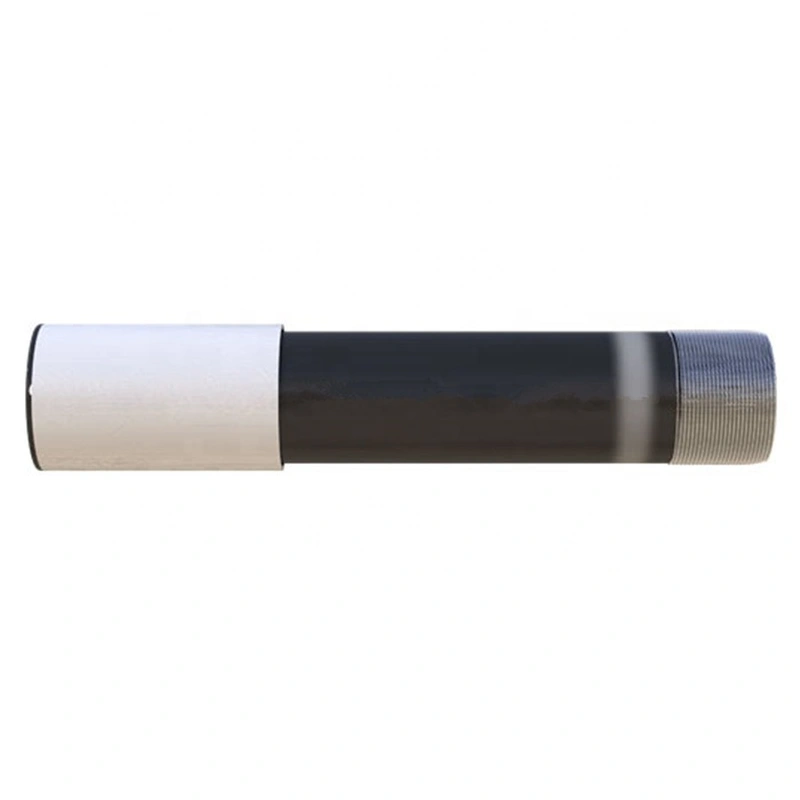

API 5CT casing pup joint casing nipple

Description

Pup Joints are used to adjust the height of full length tubing or casing strings. They are also used to adjust the depth of downhole tools.The pup joint works as one of the major tools connecting the upper and bottom drill tools, playing the function of adapting and connecting of drill string components used in oil, gas and geological drilling. The pup joint is needed if the threads of the upper and bottom drill tools are unmatched.

Name		Pup joint
Standard		API 5CT
Type		Seamless
Grade	Group.1	H40/PSL.1, J55/PSL.1, J55/PSL.2, J55/PSL.3, K55/PSL.1, K55/PSL.2, K55/PSL.3,
	Group.1	N80(1)/PSL.1, N80(1)/PSL.2, N80(Q)/PSL.1, N80(Q)/PSL.2, N80(Q)/PSL.3
	Group.2	M65/PSL.1, M65/PSL.3, L80/PSL.2, L80(1)/PSL.1, L80(1)/PSL.3, L80(9Cr)/PSL.1, L80(13Cr)/PSL.1, C90/PSL.1, C90/PSL.2, C90/PSL.3, T95/PSL.1, T95/PSL.2T95/PSL.3
	Group.3	P110/PSL.1, P110/PSL.2, P110/PSL.3,
	Group.4	Q125/PSL.1, Q125/PSL.2, Q125/PSL.3,
OD Ranges	Tubing	1.66 inch to 4 1/2 inch or 42.16mm to 114.3mm
OD Ranges	Casing	4 1/2 inch to 20 inch or 114.3mm to 508mm
Length	Tubing	<6.10m
Length	Casing	<4.88m
Thread Type	Tubing	NUE, EUE
Thread Type	Casing	STC, LTC, BTC
Surface treatment		Whole phosphating, or inside phosphating and outside coating
Packing		By carton, wooden case, wooden pallet, or as customer's requrements

Pup Joint sets are available in:

Integral Premium Thread Box-by-Pin
Pin-by-Pin with couplings boxed separately
Pin-by-Pin with couplings hand tight
Pin-by-Coupling Box
Flush joint connections

Advantage

1.we can be your trust worth supplier
2. Strict quality inspection
3. Perfect product quality
4. Fast Delivery
5. Reasonable Price
6. More perfect quality certification system
7. After-sales service

Inspection

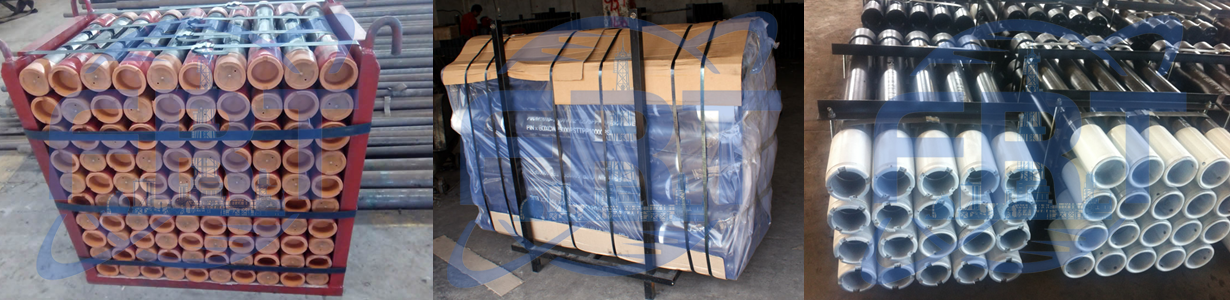

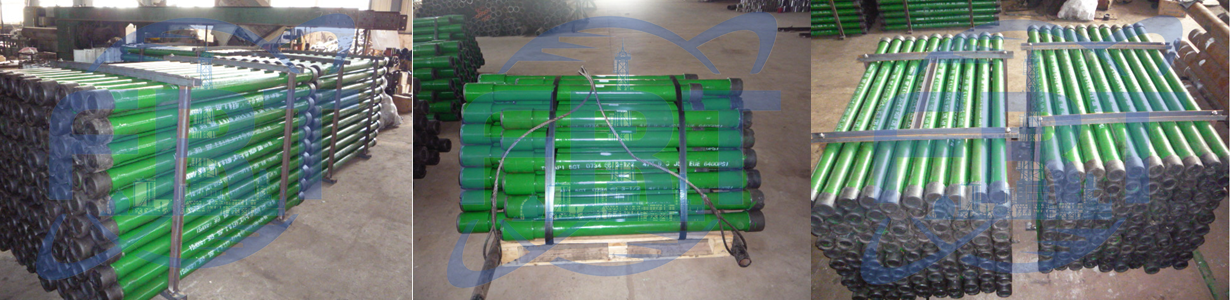

Packing&Shipping

By carton, wooden case, wooden pallet, or as customer's requrements.

Goods will be delivered by sea, train, air, truck, etc.

Company Introduction

We supply all kinds of pipe nipples & sockets, clamps, pipe couplings and stamping part with good quality and competitive price.

Main Feature:

High Precision in size and shape

Good corrosion resistance

High collapse strength

High connection strength and salability

Constant mechanical properties at high temperature

Excellent comprehensive mechanical properties

FRT Machinery regards continuous learning ability as one of the company's core competitiveness and provides regular training to employees to enhance their comprehensive abilities and skills. We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
