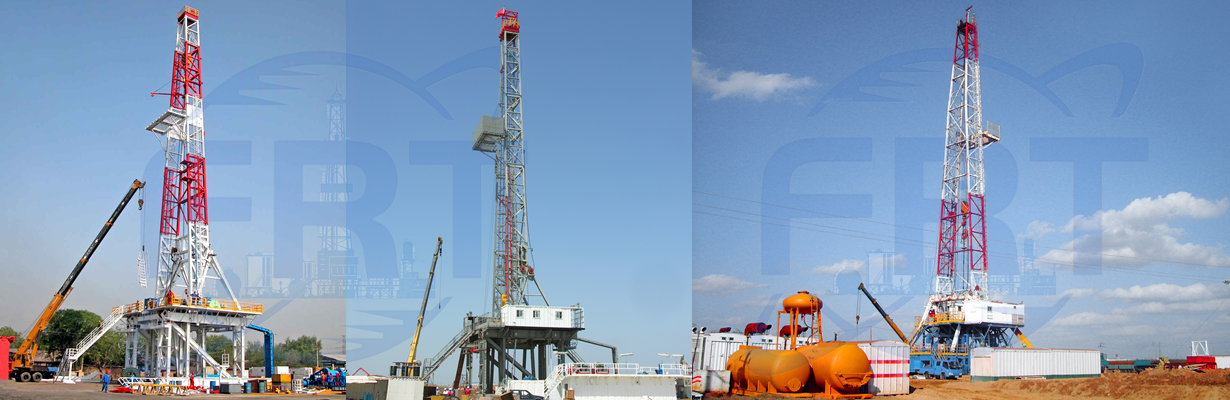

Skid mounted hydraulic rig works through PLC to realize intelligent driller control for drilling rig, and achieve data storage, printing and remote transmission. This skid mounted drilling machine is suitable for various oil, gas well drilling and exploration under 4000m at home and abroad.
Structure Principles and Features
S/N | Description | Parameters |
1 | Nominal drilling depth | 2500 to 4000m(114mm DP) 2000 to 3200m(127mm DP) |
2 | Max. hook load | 2250kN |
3 | Drawworks rated power | 800kW(1000HP) |
4 | Drawworks gears | I Gear, step-less speed regulating |
5 | Max. wireline number of Traveling system | 10 |
6 | Drilling wireline dia. | φ32 mm |
7 | Rotary table opening dia. | 698.5 mm(27 1/2) |
8 | Rotary table gears of mechanical drilling equipment | I Gear, step-less speed regulating |
9 | Mud pump type & number | F-1300 mud pumps 2 sets |

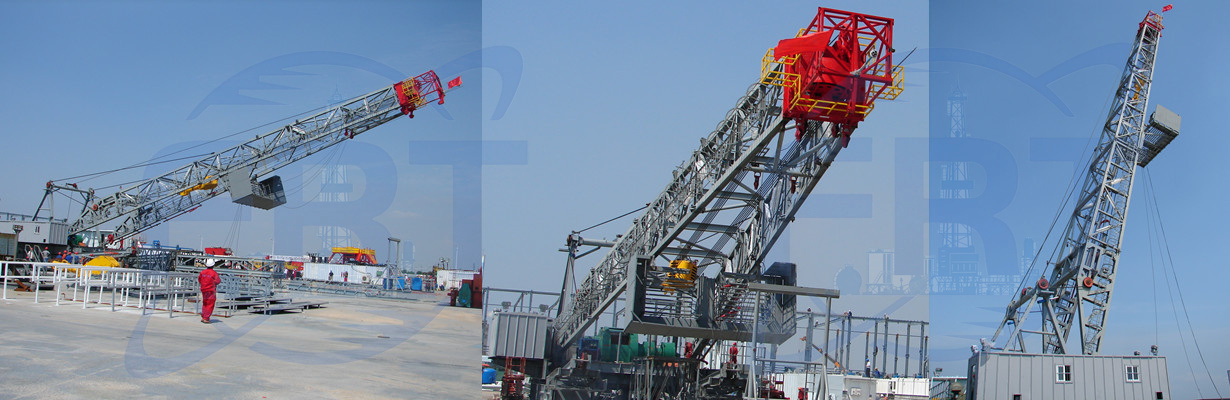

10 | Mast type and effective | Front opening type 43 m |
11 | Substructure type & | Box block type 7.5 m |
12 | Clearance | 6.3 m |
13 | Control mode | AC-DC-AC |
14 | Control mode | 1 to control 2 |
Company Introduction
Our company is committed to study the unconventional oil and gas equipment, and oil and gas exploration equipment under special environment such as offshore, desert, shallow, rainforest and cold weather (polar region). At the same time, mechanization and intellectualization of equipment are improved and developed continuously. We developed the cold weather drilling rigs that can adapts to the 45℃ to -60℃ temperature, the series of drilling rig are exported to high-end market such as Russia and Canada. The truck-modular rigs and free-standing drilling rigs can meet the different requirements from the customer.
