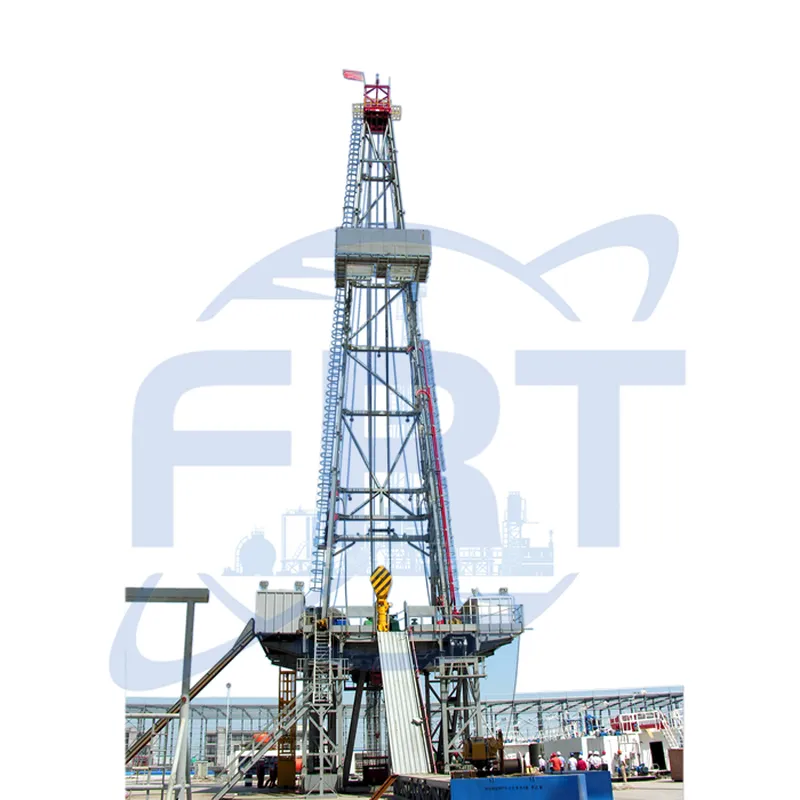

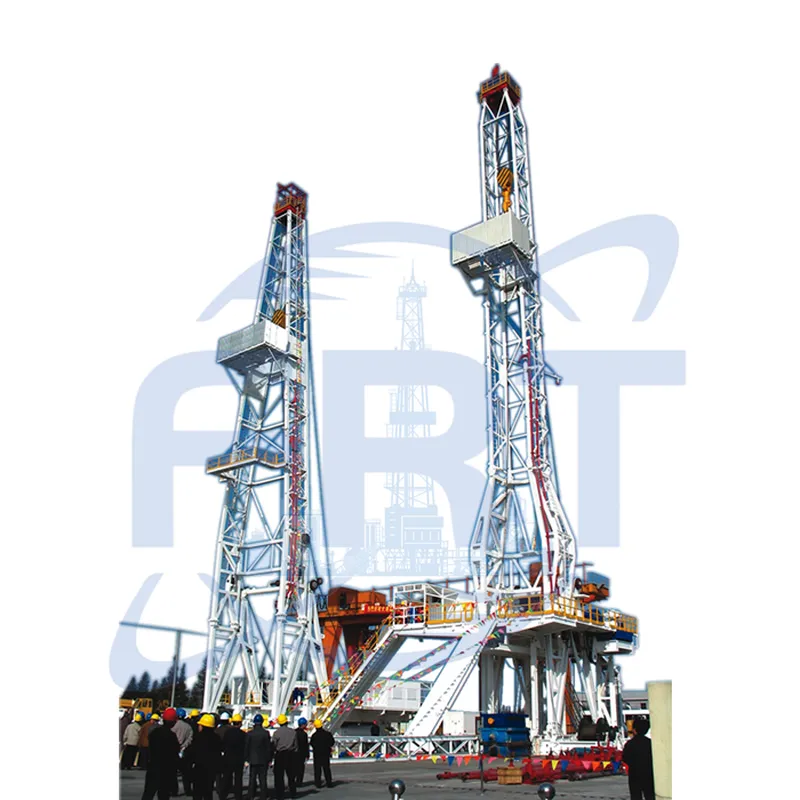

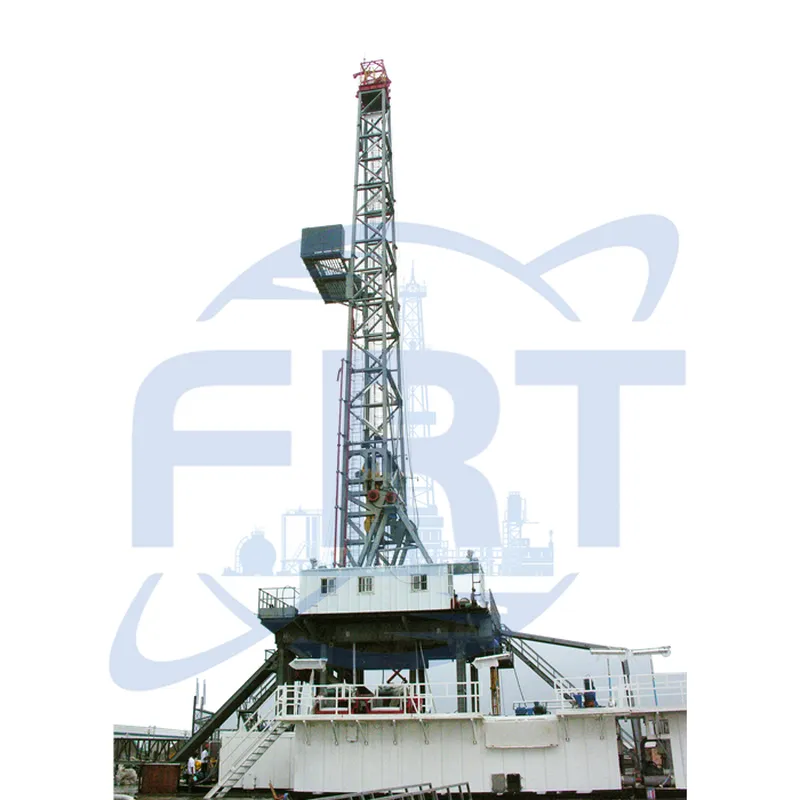

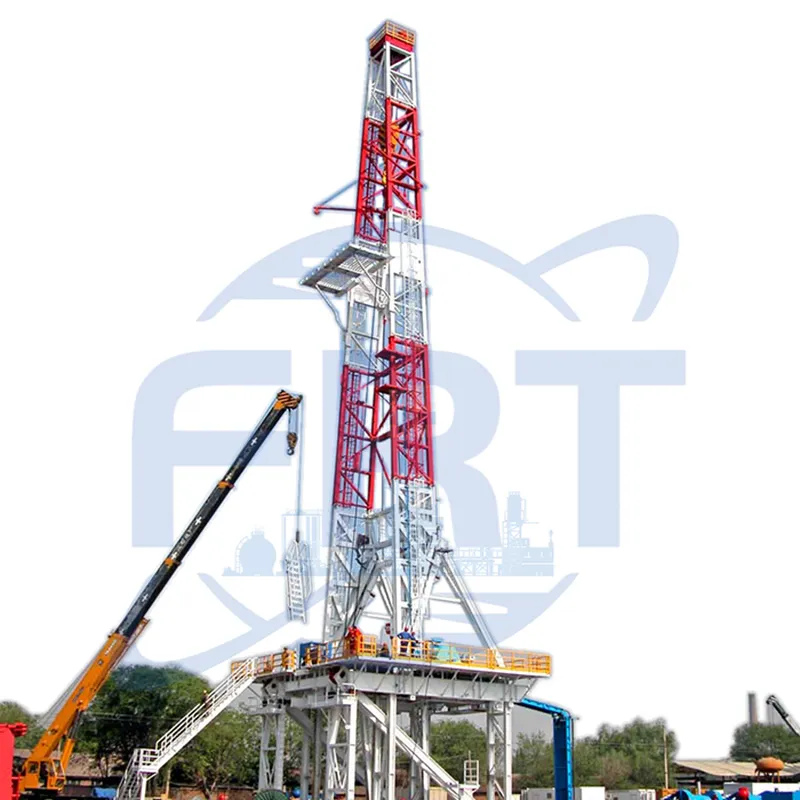

Mechanical driven on shore skid-mounted drilling rig

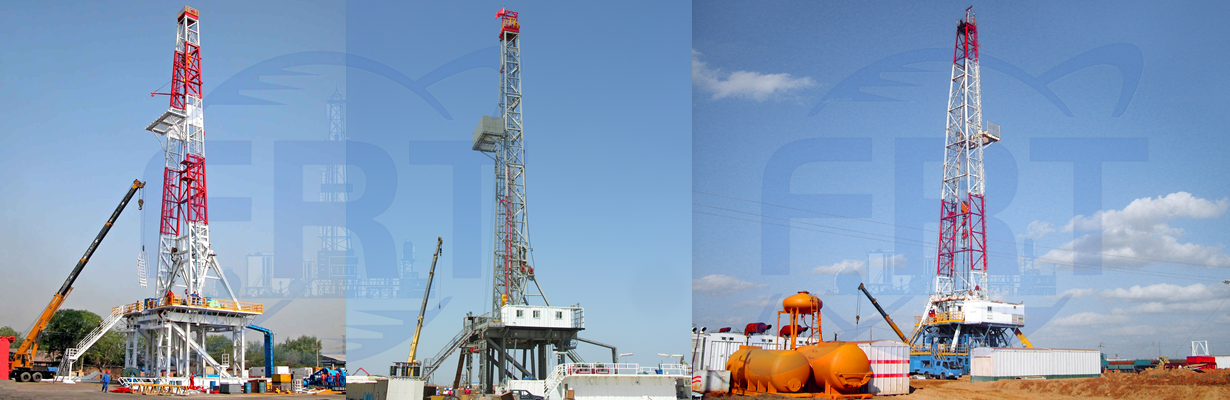

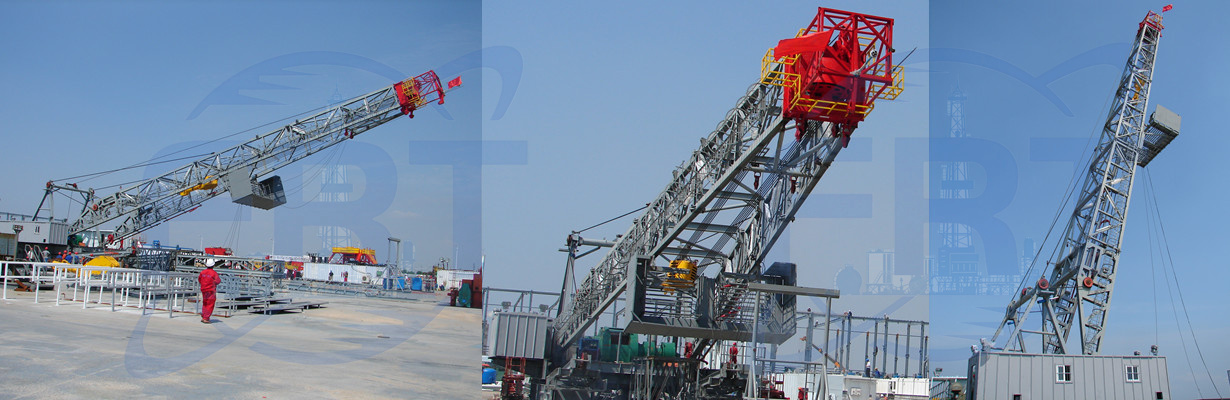

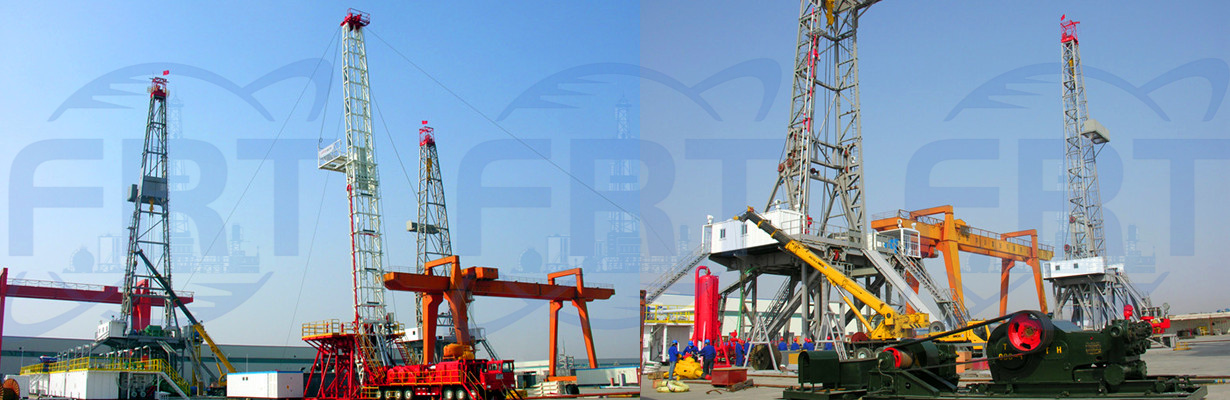

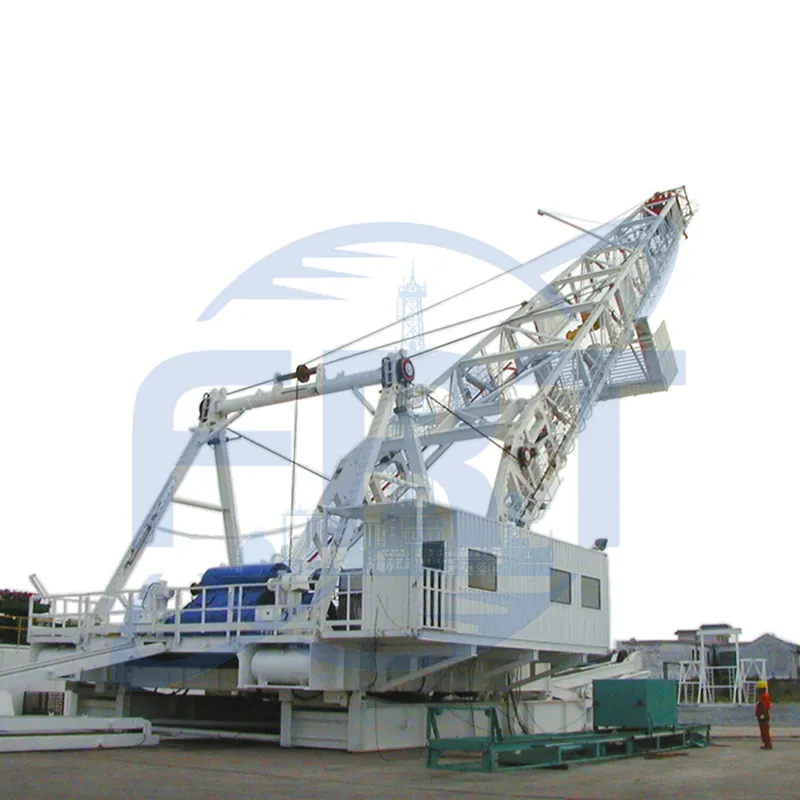

The drilling rig is driven by diesel engines,hydraulic coupling& chain compound box or diesel engines, reducers& narrow V-belt, which provides smooth mechanical power to the drawworks. A number of hoisting speeds and rotary speeds are available. The drawworks is installed at ground level.Power is transmitted through bevel gear and universal shaft to the equipment on the drill floor. It is reliable in driving and easy in assembly/disassembly. The drawworks (40 and 50 model) utilize air clutch for shifting gears, which are suitable for remote control. Either band brake or hydraulic disc brake can be considered as main brake of drawworks and either an eddy current brake or EATON brake as auxiliary brake. The chain driven rig is driven by the integral enclosed compound chain box (or narrow V-belt) and coupling. During any rig moves, it is unnecessary to dismantle the chains (or narrow V-belt) for fast installation. The mastis of open-front type without guy line. It is integrally raised and installed at ground level. The substructure is of a box-on-box type. It is simple in structure and easy to install. It is applicable for mounting BOP installations. The rotary table and the transmission unit are flush with the rig floor. The drill floor is flat and the operational area is large.
