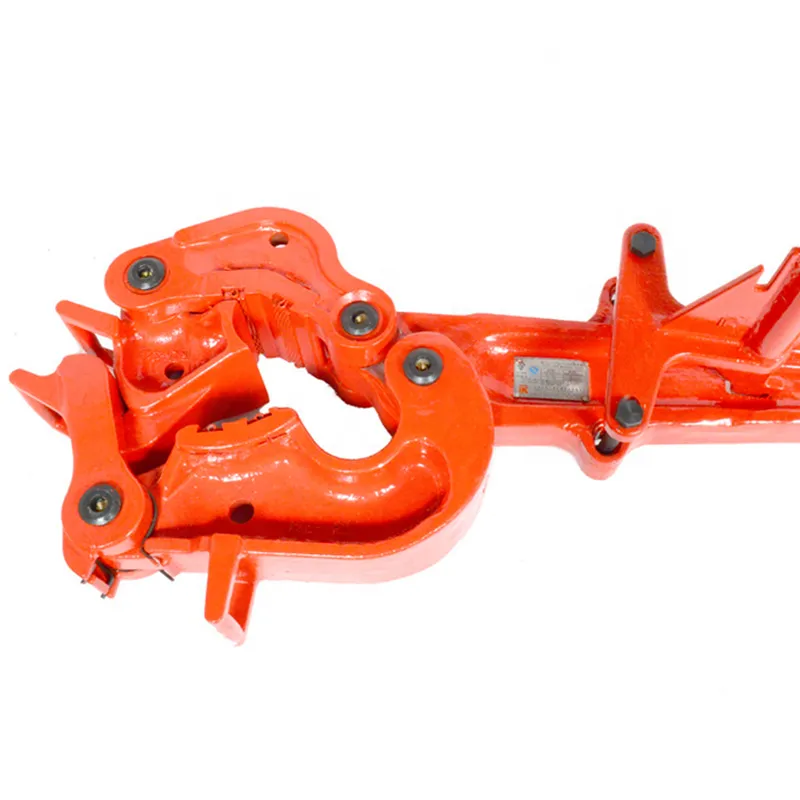

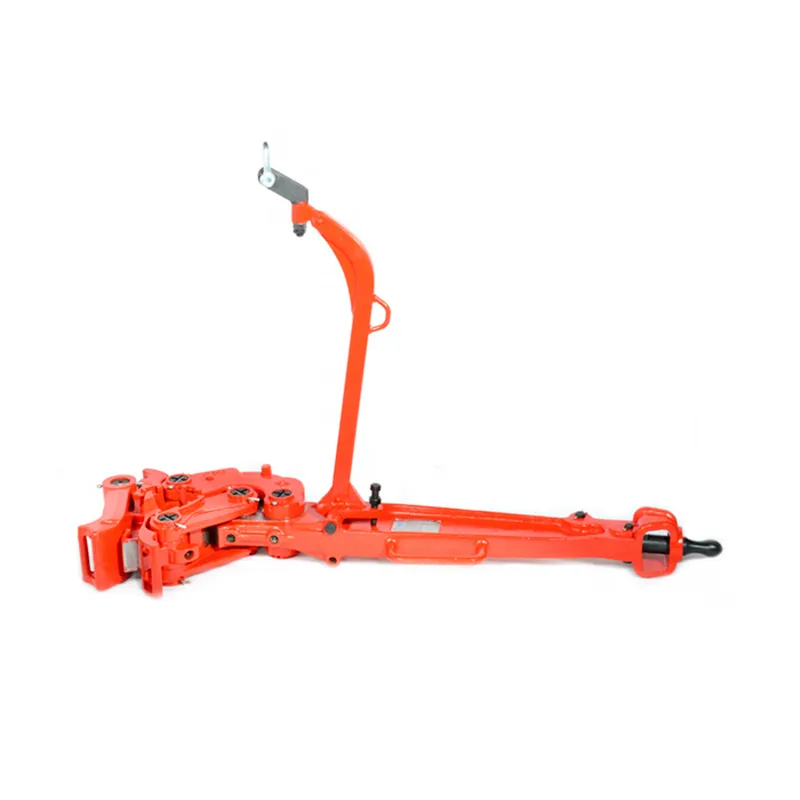

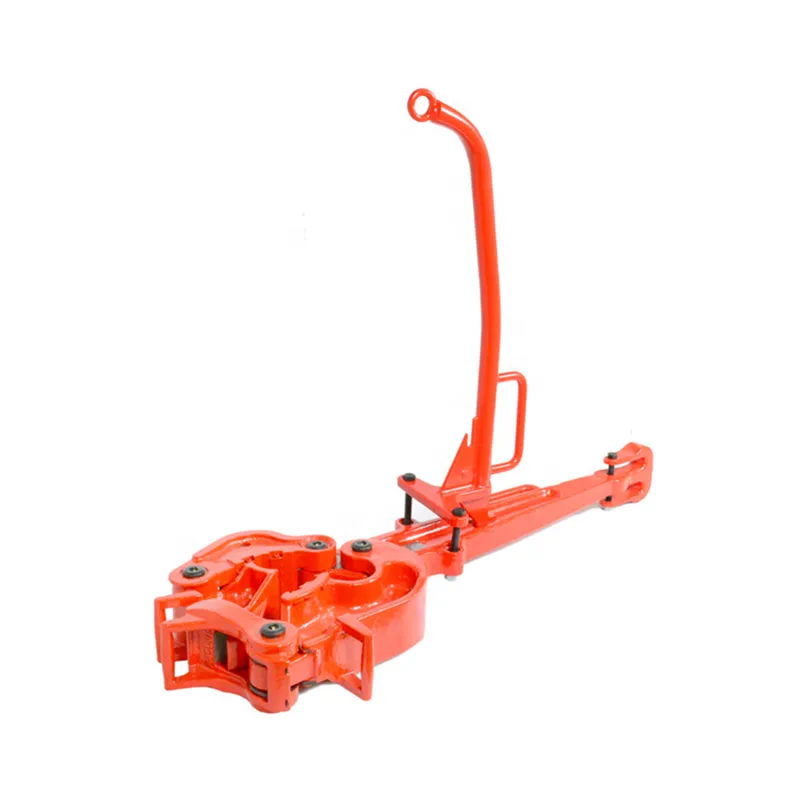

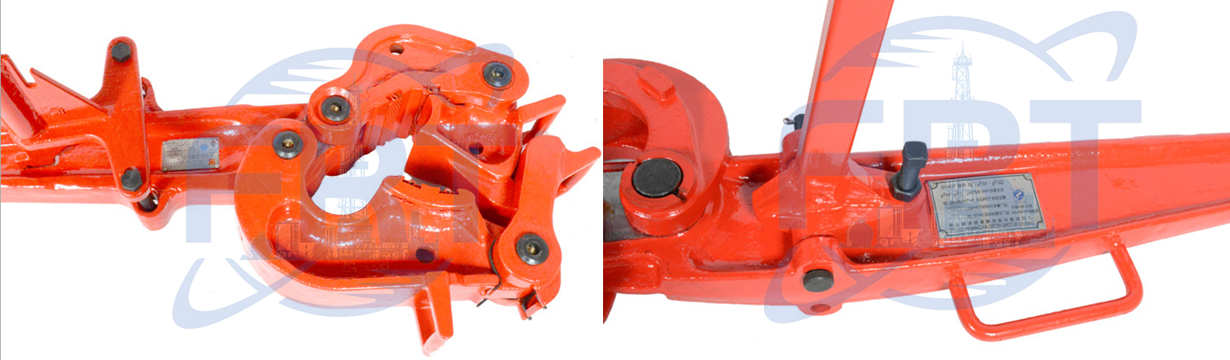

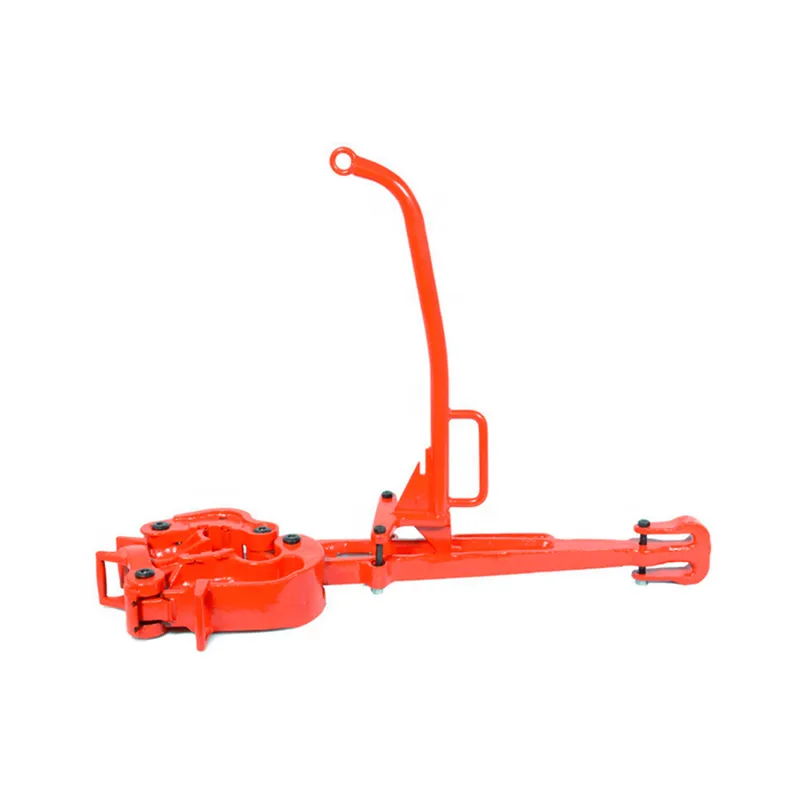

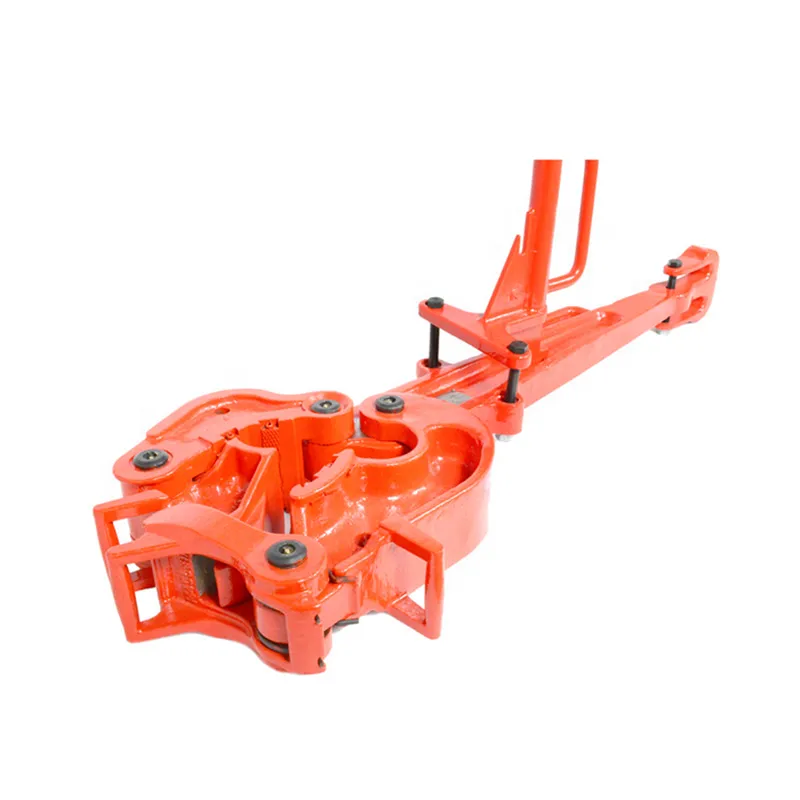

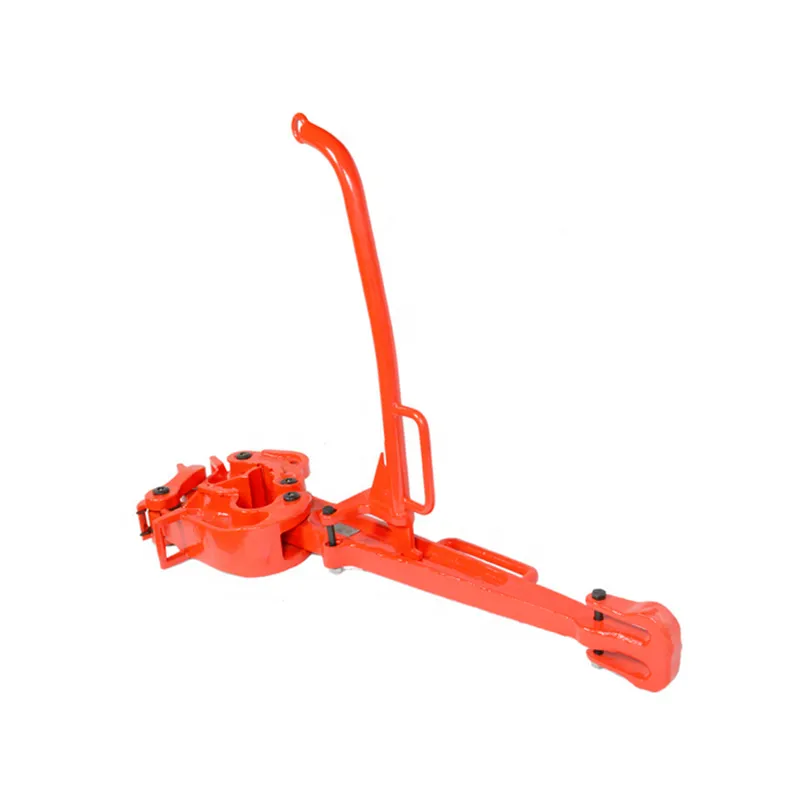

API 7K 2 3/8" - 10 3/4" manual tong type C

Manual Tongs are necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

Description

No.of Latch Lug jaw	No. of Short Jaw	No.of Hinge Jaw	Size Range(mm(in))		Rated Torque kN.m
No.of Latch Lug jaw	No. of Short Jaw	No.of Hinge Jaw	mm	in	Rated Torque kN.m
1#	1#	/	60.33-93.17	2 3/8-3.668	48
2#			73.03-108	2 7/8-4 1/4
3#			88.9-133.35	3 1/2-5 1/4
4#			139.7-177.8	5 1/2-7
5#	2#	1#	177.8-219.08	7-8 5/8
6#	2#	2#	244.5-273.05	9 5/8-10 3/4

Related Products


Packing&Shipping

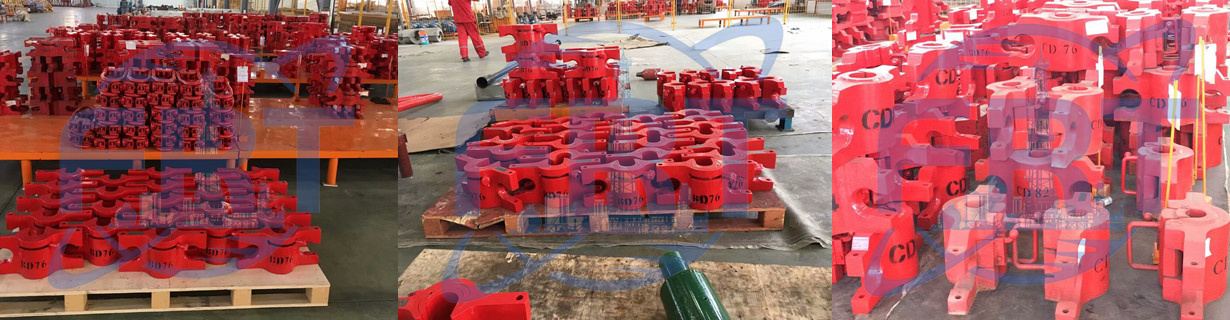

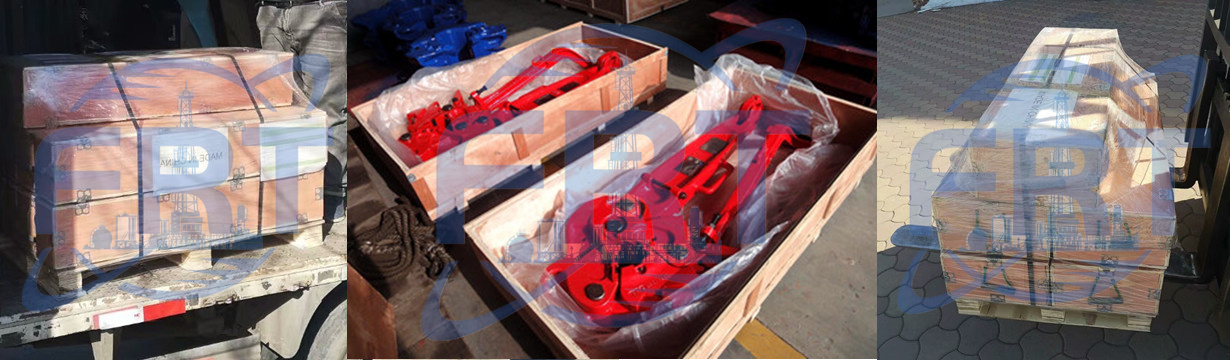

The tongs will be packed in plywood wooden box.

Goods will be delivered by sea, train, air, truck, etc.

Company Introduction

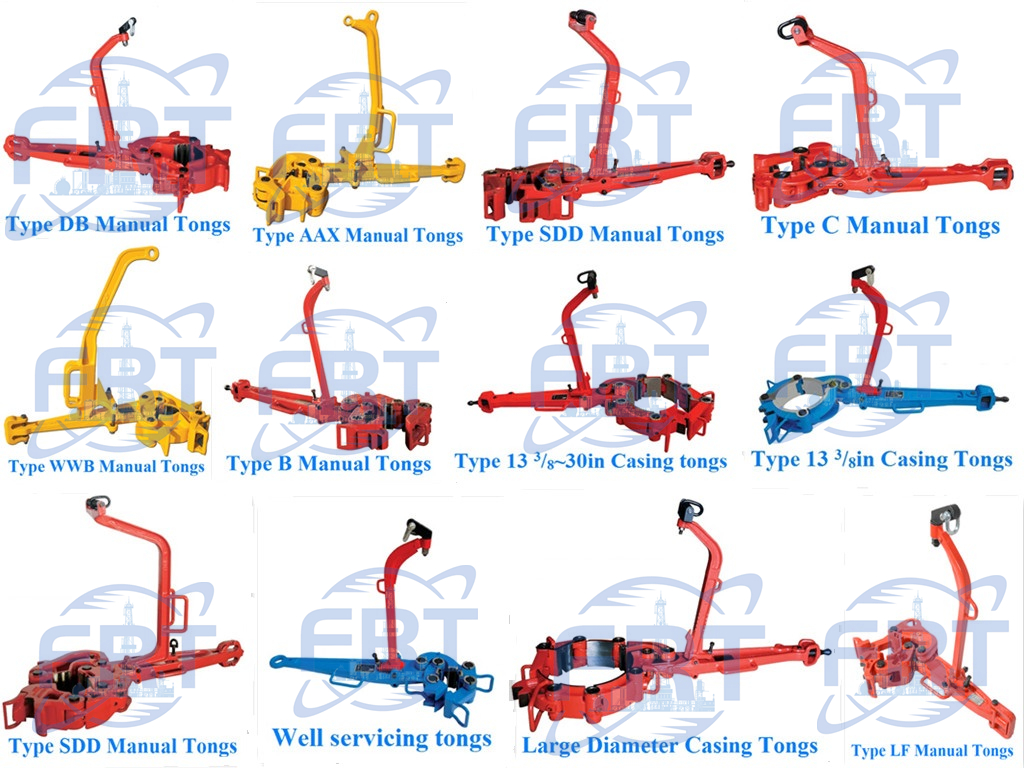

Our main products include: series of manual tong, series of slip, series of different bushings, series of casing spider, series of pneumatic spider, series of ZQ Drill Pipe Power Tong, series of TQ Casing Power Tong, etc. The products are manufactured as per the international standard and the latest national standard, we'll do our persistent efforts to supply the drilling and well servicing equipment for customers in domestic and aboard, with high quality、excellent service and reasonable price.
