API 7K Q3 1/2" - 17" manual tongs type DB

API 7K Q3 1/2" - 17" manual tongs type DB is necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

Description

No.of Latch Lug jaw	No.of Hinge Pin Hole	Size Range(mm(in))		Rated Torque kN.m
No.of Latch Lug jaw	No.of Hinge Pin Hole	mm	in	Rated Torque kN.m
1#	Ⅰ	88.9~152	3 1/2~6	90
	Ⅱ	146~178	5 3/4~7
	Ⅲ	168~210	6 5/8~8 1/4
2#	Ⅰ	203~244	8~9 5/8
2#	Ⅱ	270~286	10 5/8~11 1/4
3#	Ⅰ	298~324	11 3/4~12 3/4	55
3#	Ⅱ	340~365	13 3/8~14 3/8
4#	Ⅱ	406~432	16~17

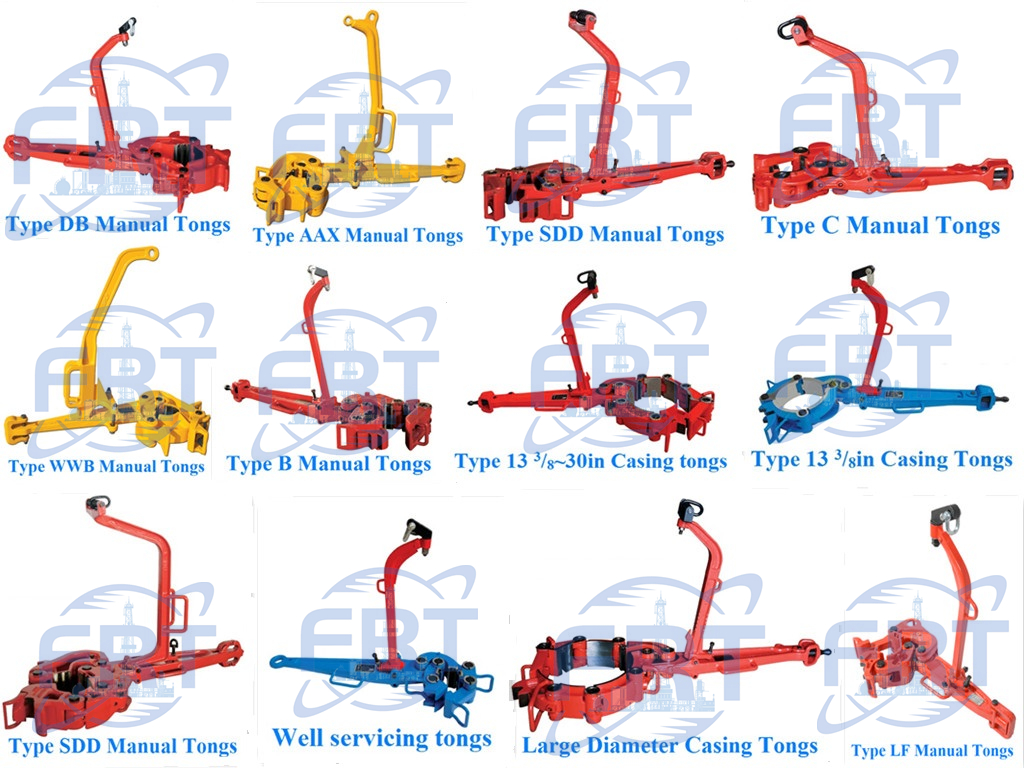

Related Products


Packing&Shipping

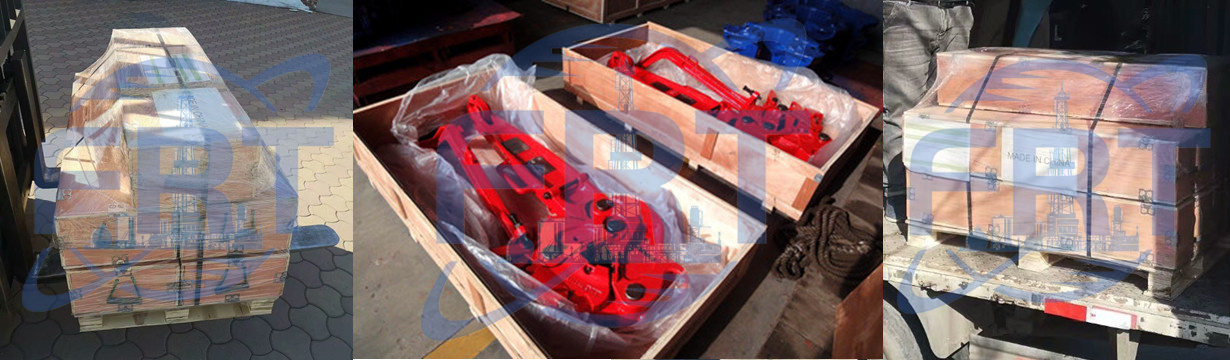

The tongs will be packed in plywood wooden box.

Goods will be delivered by sea, train, air, truck, etc.
