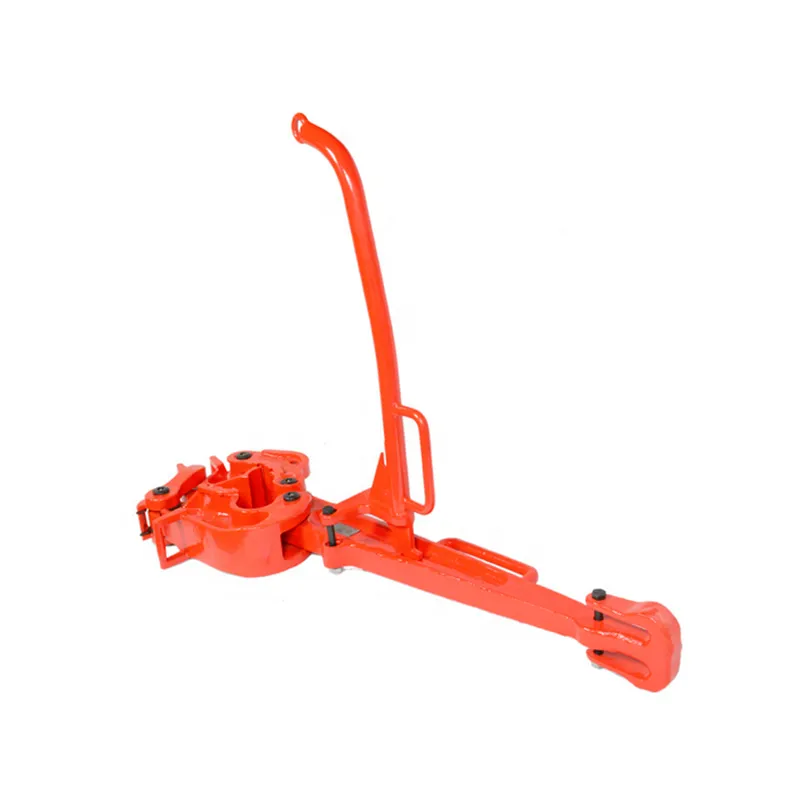

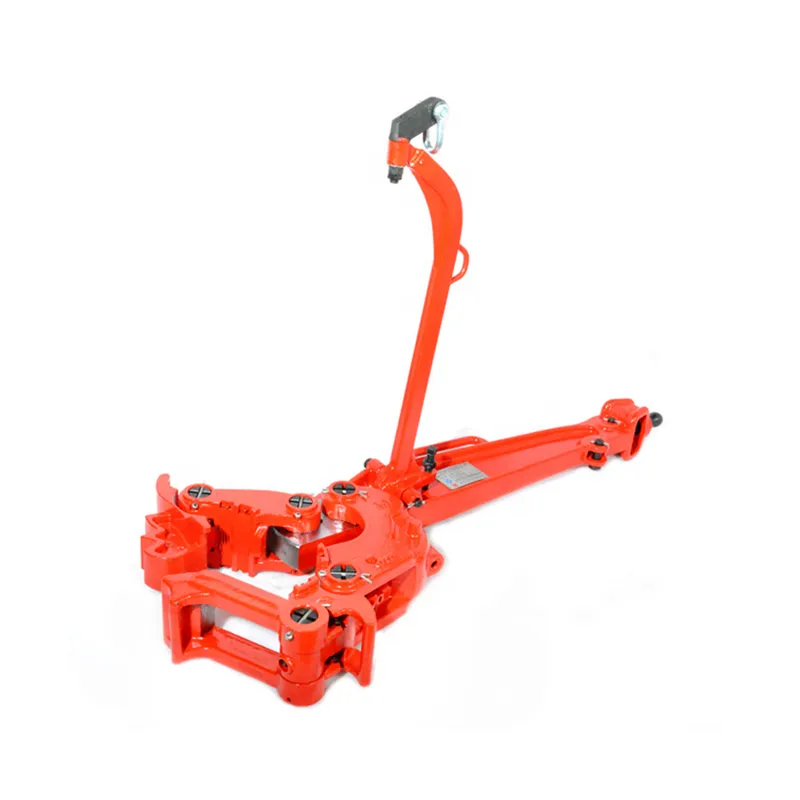

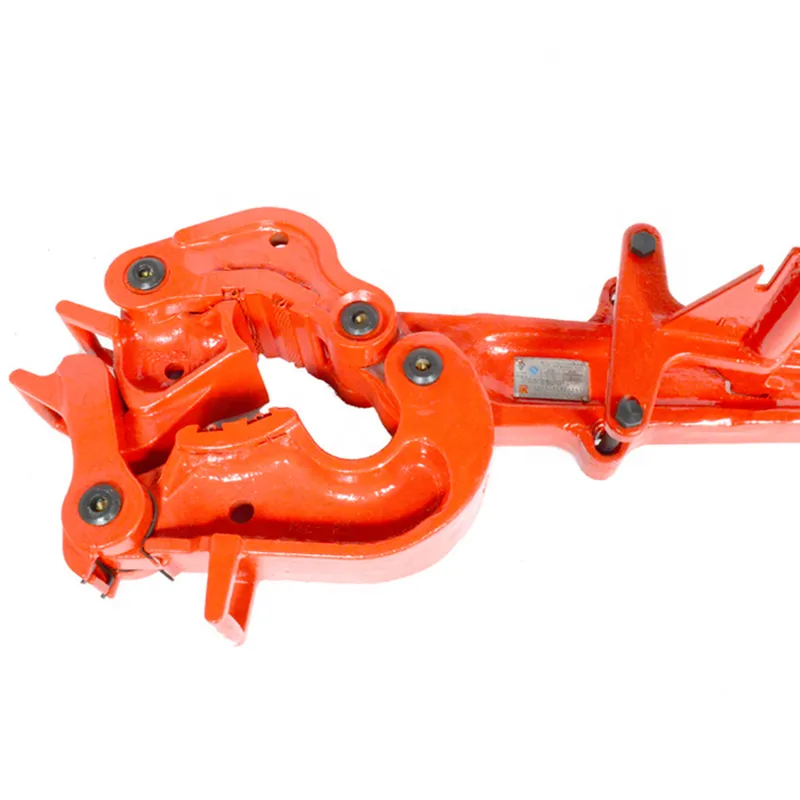

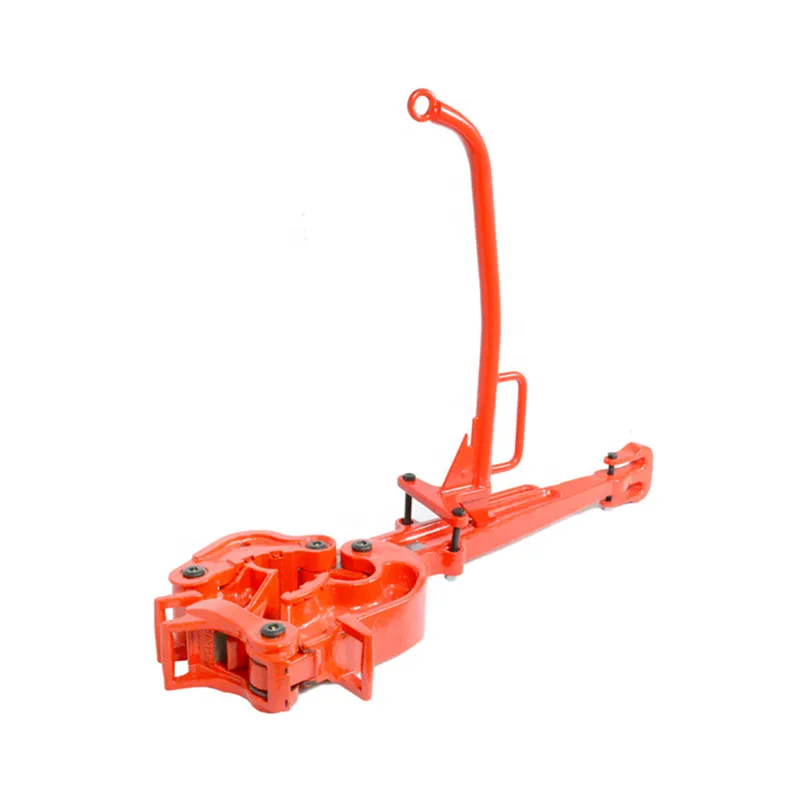

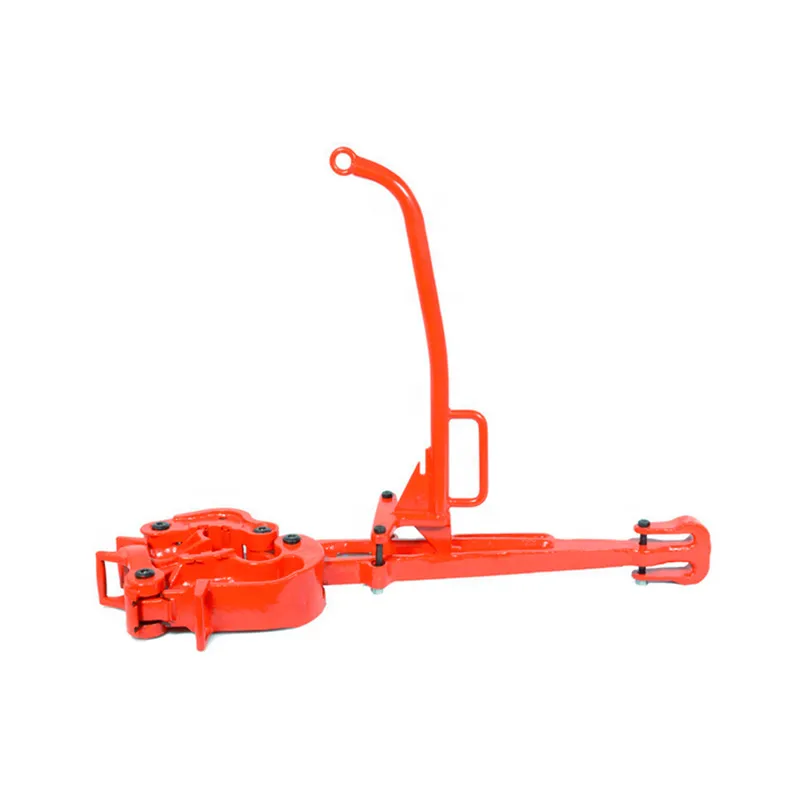

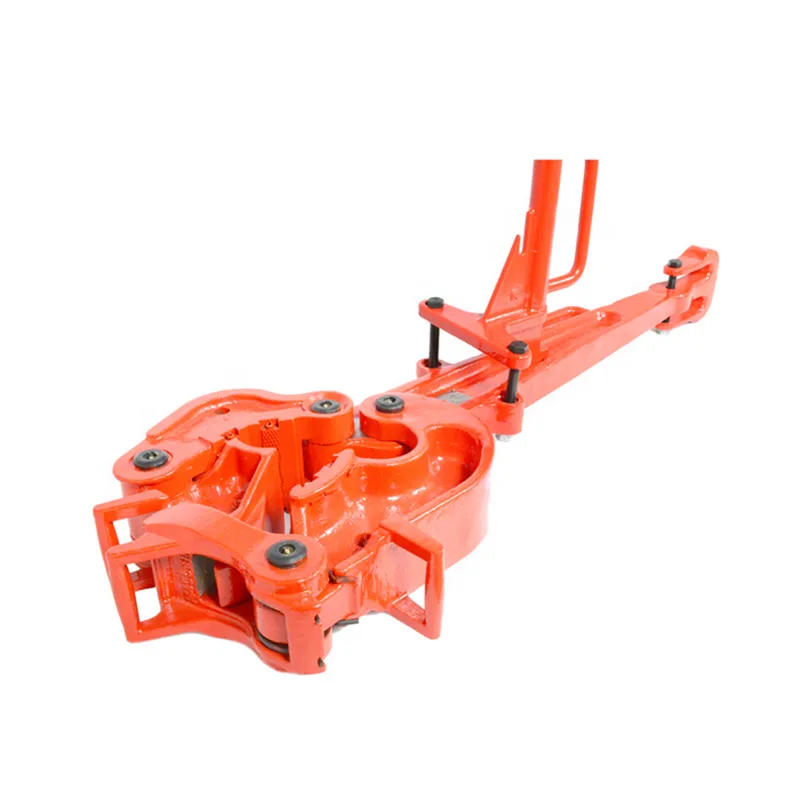

API 7K 3 3/8" - 13 3/8" Type B manual tongs for drilling rig

API 7K 3 3/8" - 13 3/8" Type B manual tongs are necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

Description

No.of Latch Lug jaw	Latch step	Size Range(mm(in))		Rated Torque kN.m
No.of Latch Lug jaw	Latch step	mm	in	Rated Torque kN.m
5a	1 2	86-105 105-133	3 3/8-4 1/8 4 1/8-5 1/4	55
5b	1 2 3	108-133 127-146 152-171	4 1/4-51/4 5-5 1/4 6-6 3/4	75
5b-1	1 2 3	133-146 146-168 168-208	5-6 6-7 7-8	75
5c	1 2 3	168-187 187-203 216-219	6 5/8-7 3/8 7 3/8-8 8 1/2-8 5/8	75 55
5d	1 2	216-244 270-273	8 1/2-9 5/8 10 5/8-10 3/4	55
5e	1 2	298 324	11 3/4 12 3/4	55
5e1	1 2	273 298	10 3/4 11 3/4	55
5e3	1	330 340	13 13 3/8	55

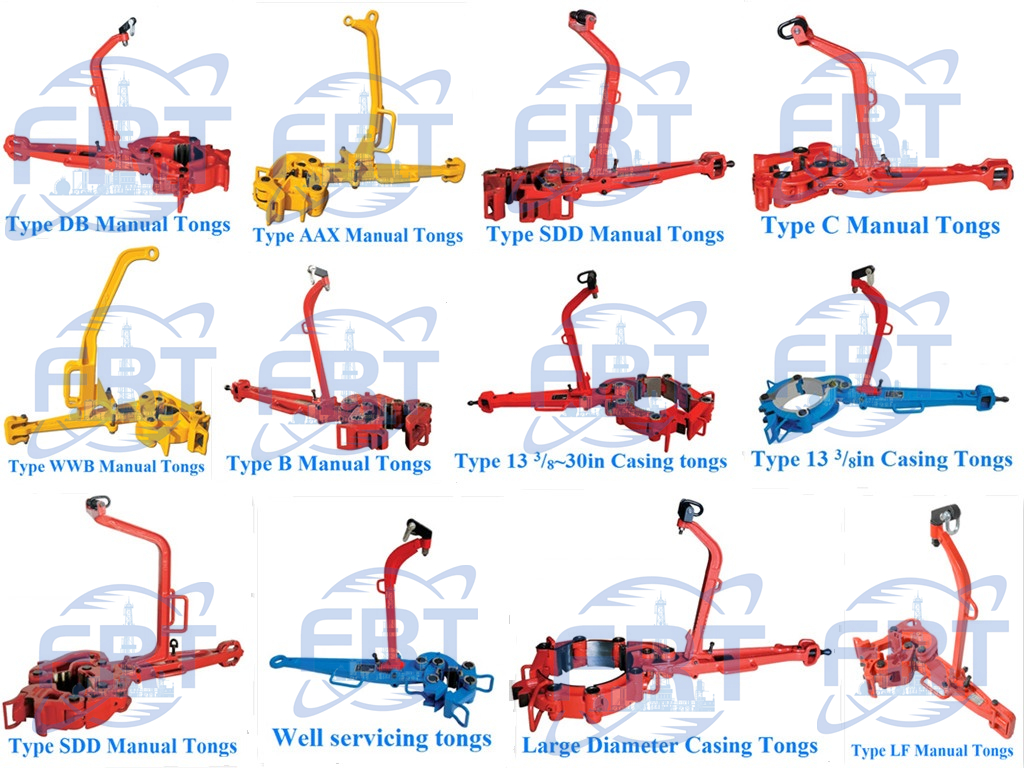

Related Products


Packing&Shipping

The tongs will be packed in plywood wooden box.

Goods will be delivered by sea, train, air, truck, etc.
