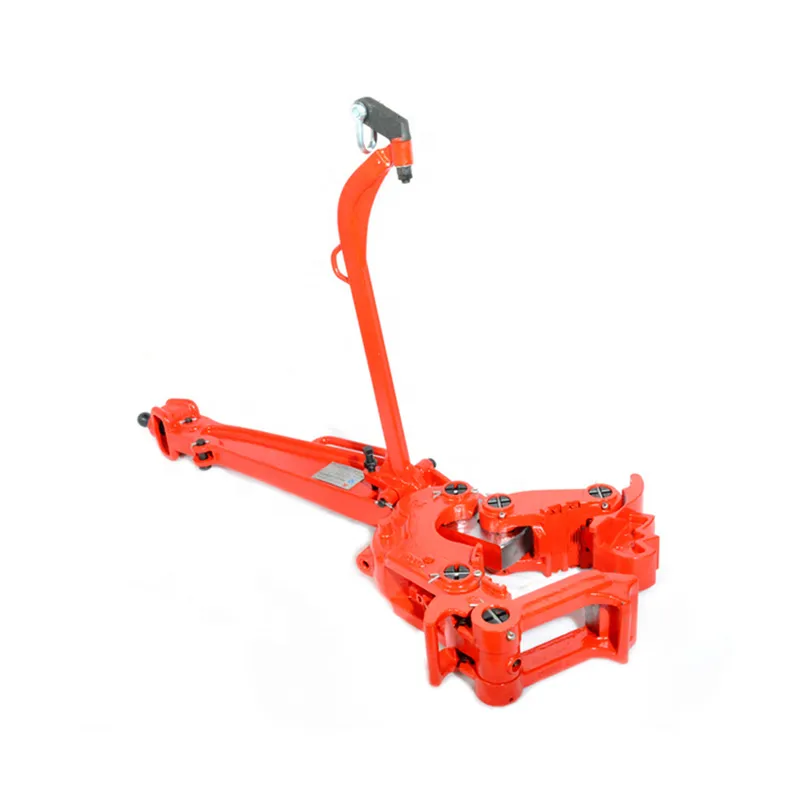

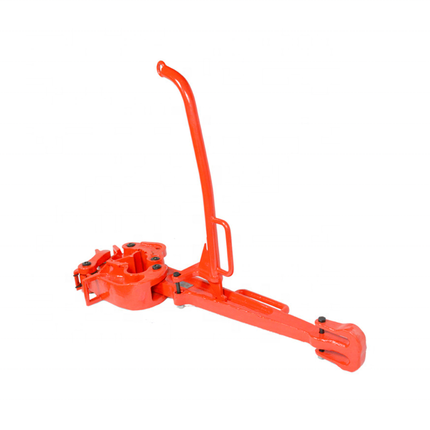

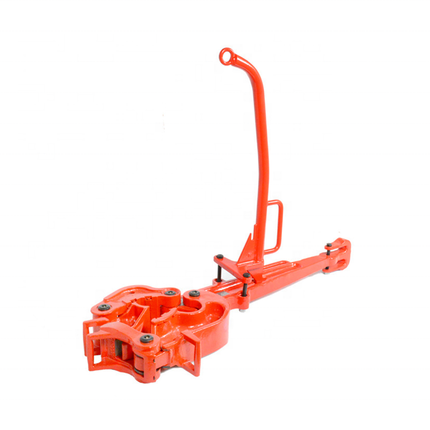

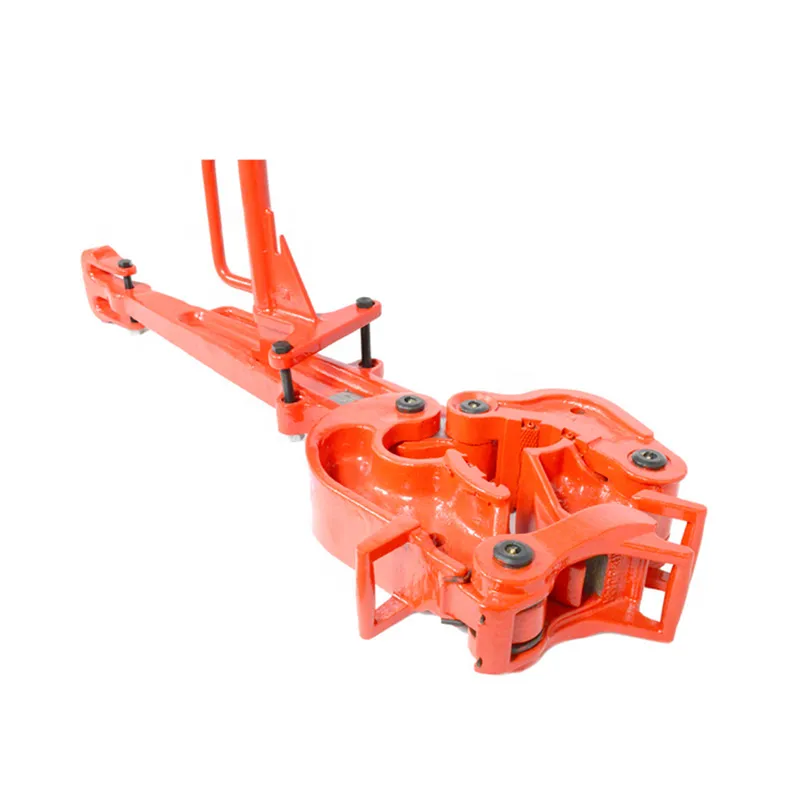

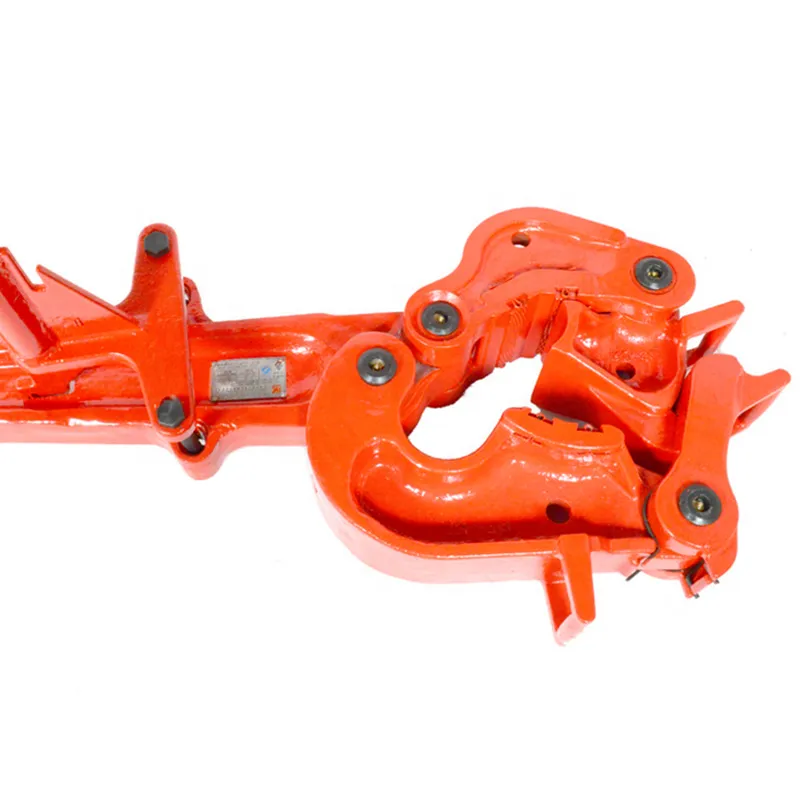

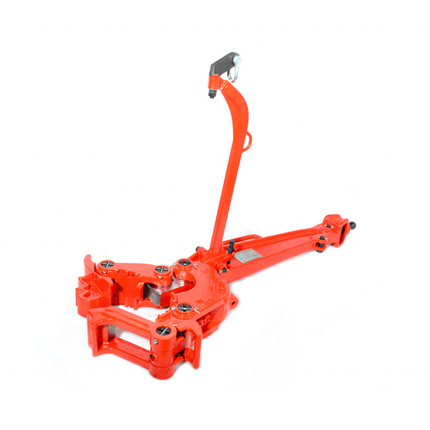

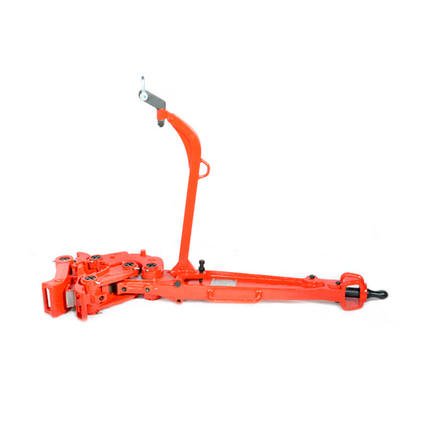

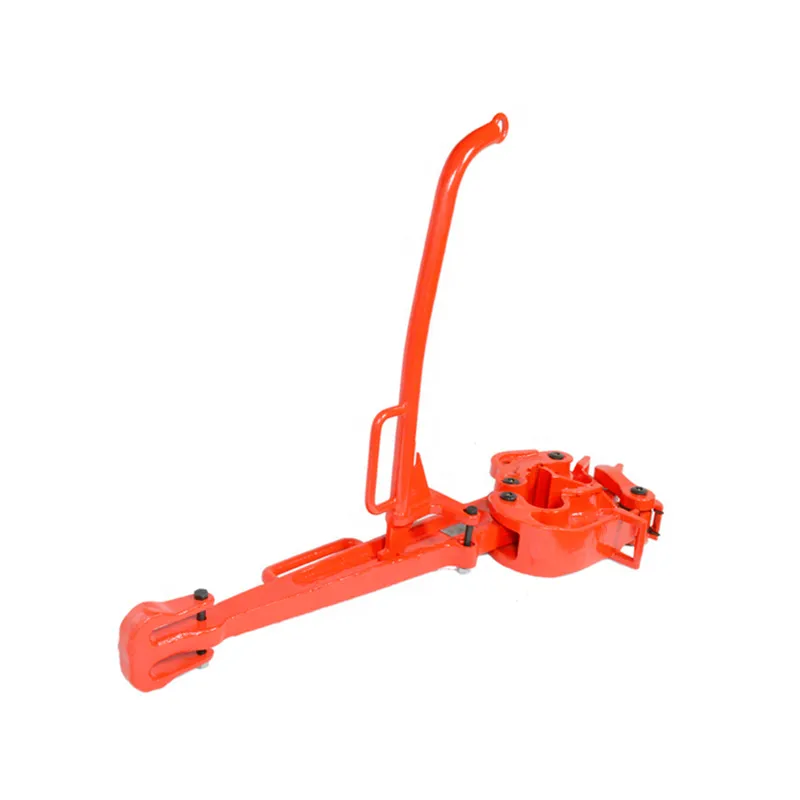

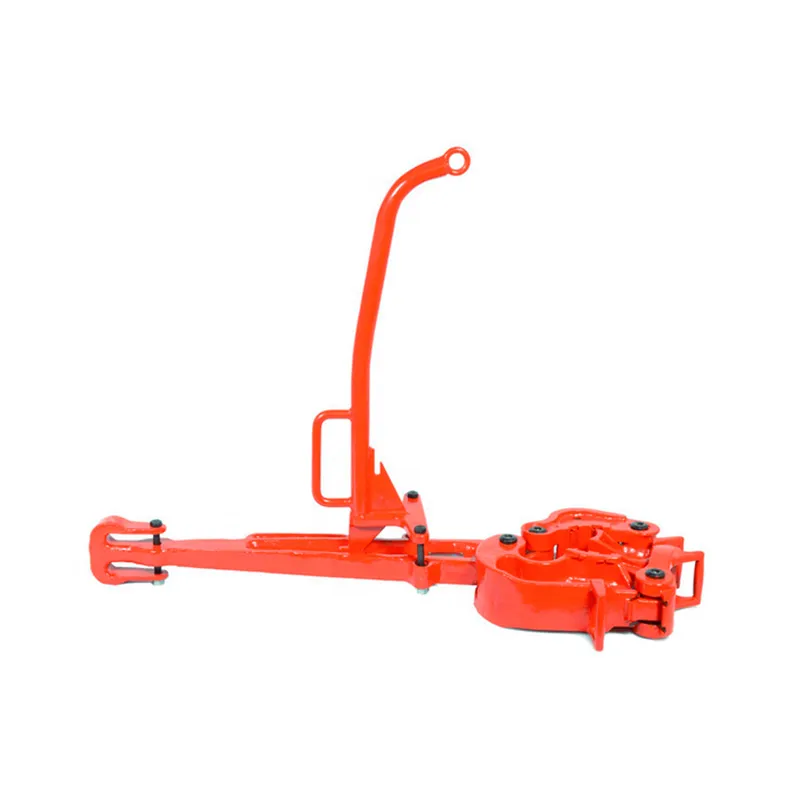

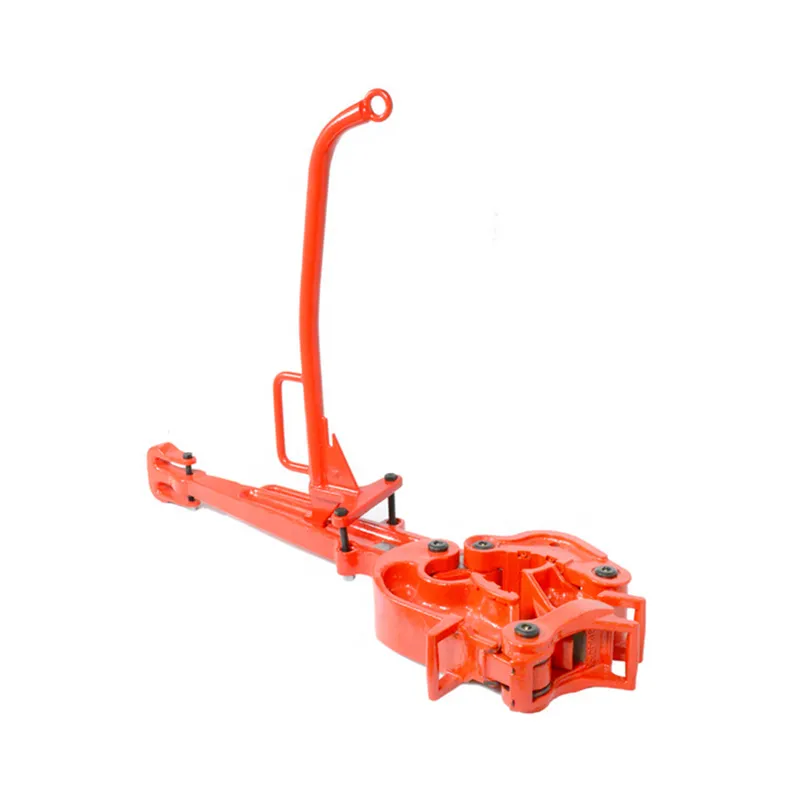

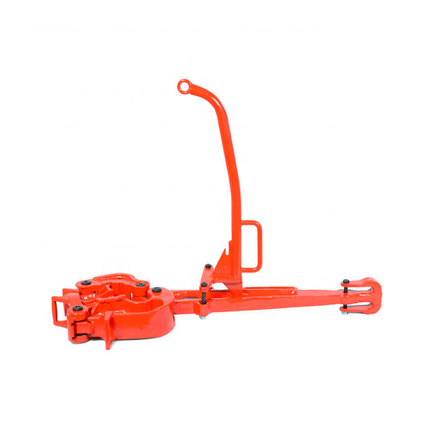

API 7K Q 4" - 17" manual tong type SDD

Description

API 7K Q 4" - 17" manual tong type SDD is necessary tools applied to make up and break out pipes.Changing lug jaws and latch steps can adjust different handling sizes of the tongs.They are designed and manufactured according to API Spec 7K Specification for drilling and well servicing equipment.

No.of Latch Lug jaw	No.of Hinge Pin Hole	Latch step	Size Range(mm(in))		Rated Torque kN.m
No.of Latch Lug jaw	No.of Hinge Pin Hole	Latch step	mm	in	Rated Torque kN.m
1#	Ⅰ	1	101.6-139.7	2.7/8-3.3/4	135
	Ⅰ	2	139.7-146	5 1/2-5 3/4
	Ⅱ	1	139.7-168.3	5 1/2-6 5/8
	Ⅱ	2	165.1-184.2	6 1/2-7 1/4
	Ⅲ	1	168.3-193.7	6 5/8-7 5/8
	Ⅲ	2	196.9-215.9	7 3/4-8 1/2
2#	Ⅰ	1	215.9-228.6	8 1/2-9
	Ⅱ	1	241.3-273	9 1/2-10 3/4
	Ⅱ	2	273-304.8	10 3/4-12
3#	Ⅰ	1	304.8-323.8	12-12 3/4	100
	Ⅱ	1	339.7-355.6	13 3/8-14
	Ⅱ	2	381	15
4#	Ⅱ	1	400	15 3/4	135
5#	Ⅱ	1	406.4	16	80
5#	Ⅱ	2	431.8	17	80

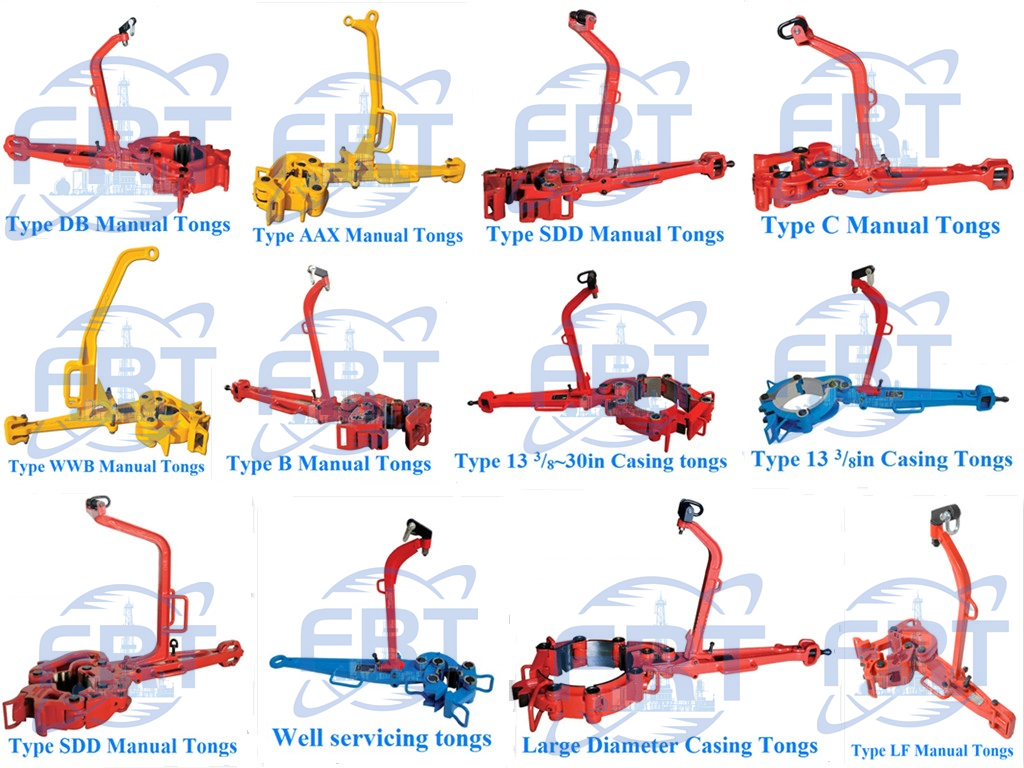

Related Products


Packing&Shipping

The tongs will be packed in plywood wooden box.

Goods will be delivered by sea, train, air, truck, etc.
