Piston assembly is the major part of the mud pump fluid end. The discharge pressure of mud pump is generated by the up-and-down motion of the piston in the cylinder. The pistons are manufactured from a specially engineered urethane compound that provides superior resistance to water, oil and synthetic based drilling fluids. The compound also provides superior resistance to tear, abrasion and extrusion and is capable of operating in fluid temperatures up to 300°F (150˚C).
Small piston—high pressure and low flow rate.Big piston—low pressure and high flow rate. Metric pump and inch pump adopts metric piston and inch piston respectively.
Advantage
• Extra strong sealing area increases run times even at pressures up to 7500 psi
• Reduced maintenance Reduced operational costs
• Specially engineered Urethane compound, provides: high resistance to water, oil and synthetic based drilling fluids
• Temperature Resistance up to 300(150˚C) • Superior resistance to tear, abrasion and extrusion
• Available in size 4”, 4.5”, 5”. 5.5”. 6”. 6.25”, 6.5”, 6.75”, 7”
• Well-designed piston body for strong bonding with urethane and reduced weight
• Bonded design prevents fluid migration and abrasion between liner body and Pistons

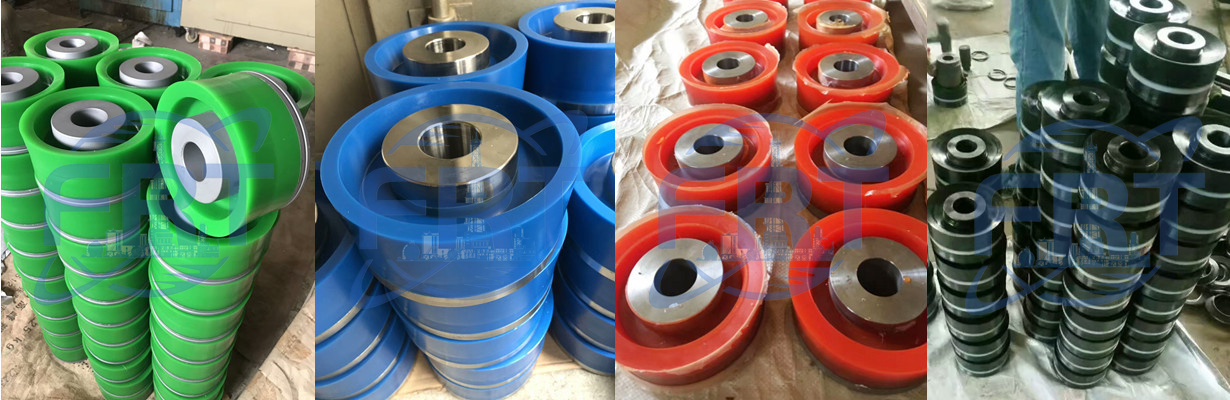

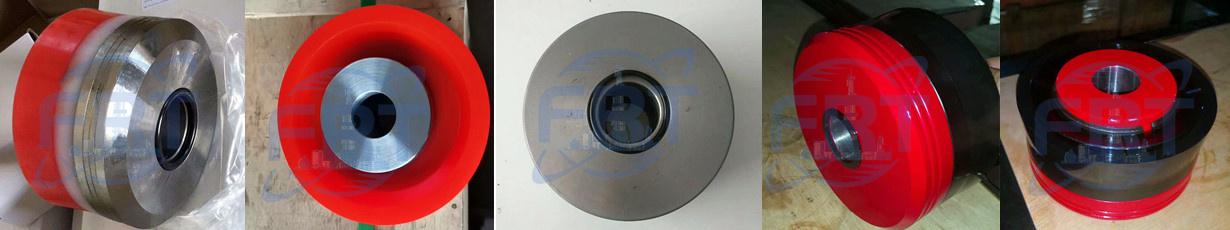

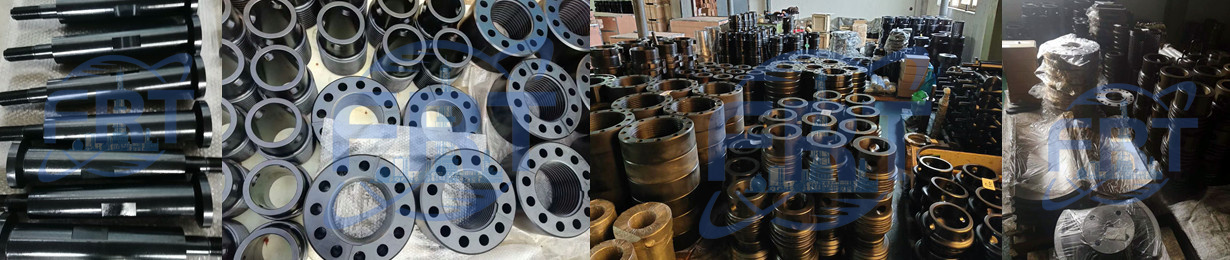

Details Images
BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600L | F-2200L |
LANSHI | F-500 | F-800 | F-1000 | F-1300 | F-1600/F-1600L | F-1600H | |
3NB500C | 3NB1000C | 3NB1300C | 3NB1600 | ||||
P-800 | P-1000 | P-1300 | P-1600 | P-2200 | |||
HONGHUA | HHF-500 | HHF-800 | HHF-1000 | HHF-1300 | HHF-1600 | HHF-1600HL | HHF-2200HL |
RONGSHENG (RS) | RSF-500 | RSF-800 | RSF-1000 | RSF-1300 | RSF-1300L | RSF-1600 | RSF-1600HL |
RG | RGF-500 | RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 | ||
QINGZHOU (QZ) | QZF-500 | QZF-800 | QZF-1000 | QZF-1300 | QZF-1600 | ||
QZ3NB-800 | QZ3NB-1000 | QZ3NB-1300 | QZ3NB-1300A | QZ3NB-1600 | |||
RONGLI (RL) | RL-F500 | RL-F800 | RL-F1000 | RL-F1300 | RL-F1600 | RL-F2200 | |
RL-3NB350 | RL-3NB500(A) | RL-3NB600 | RL-3NB800 | RL-3NB1000(A/D) | RL-3NB1300(A/D) | RL-3NB1600 | |
TSC | WF-400 | WF-450 | WF-700 | WF-1000 | WF-1600 | ||
EMSCO | F-350/500 | F-650 | F-800 | F-1000 | F-1300 | F-1600 | |
FA 1300 | FB-1300 | FA-1600 | FB-1600 | DB-550 | D-300 | D-700 | |
NATIONAL | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-220 | ||
OILWELL | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||
A-350 | A-560 | A-650 | A-850 | A-1100 | A-1400 | A-1700 | |
IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | ||
WIRTH | TPK-1000 | TPK-1300 | TPK-1600 | TPK-2000 | TPK-2200 | ||
ELLS WILLIAMS | E-447 | E-2200 | W440 | W446 | |||
GARDNER DENVER | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PZ-L | PA-8 |
FY-FXD | FO-FXO | FD-FXX | FG-GXG | ||||
RUSSIA PUMPS | UNBT 650 | UNBT 950 | UNBT 1180L | UNB 600 | NBT 600 | ETC. |
