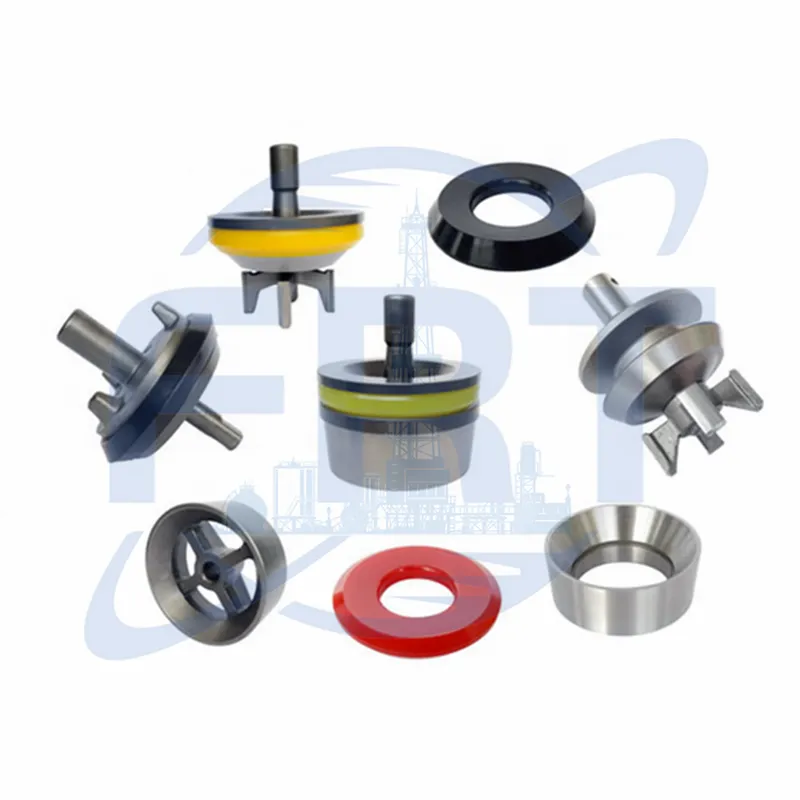

The valve assembly is the key component of the hydraulic end of the mud pump. The valve assembly consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

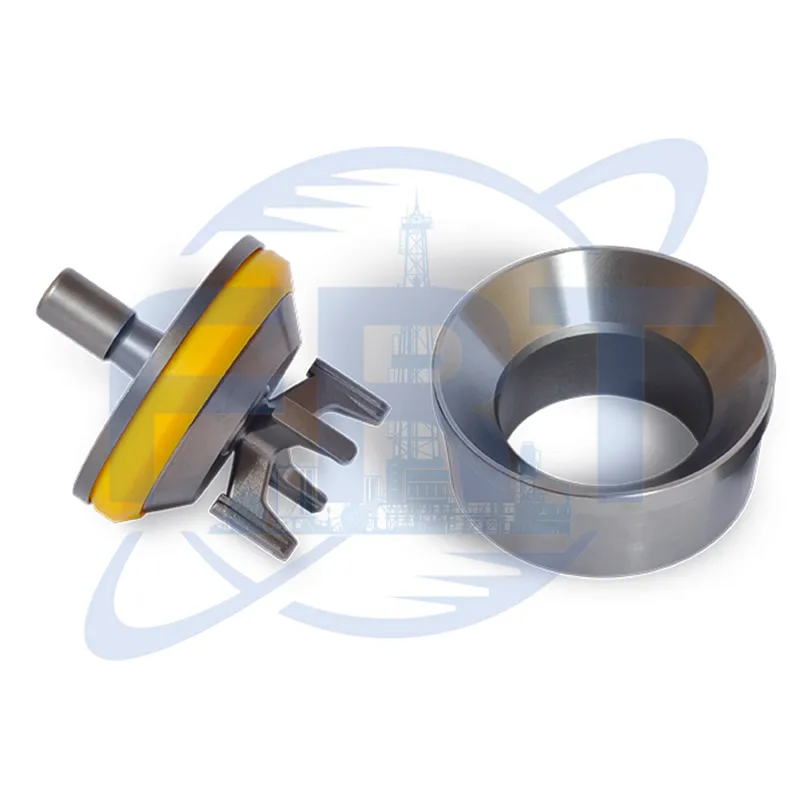

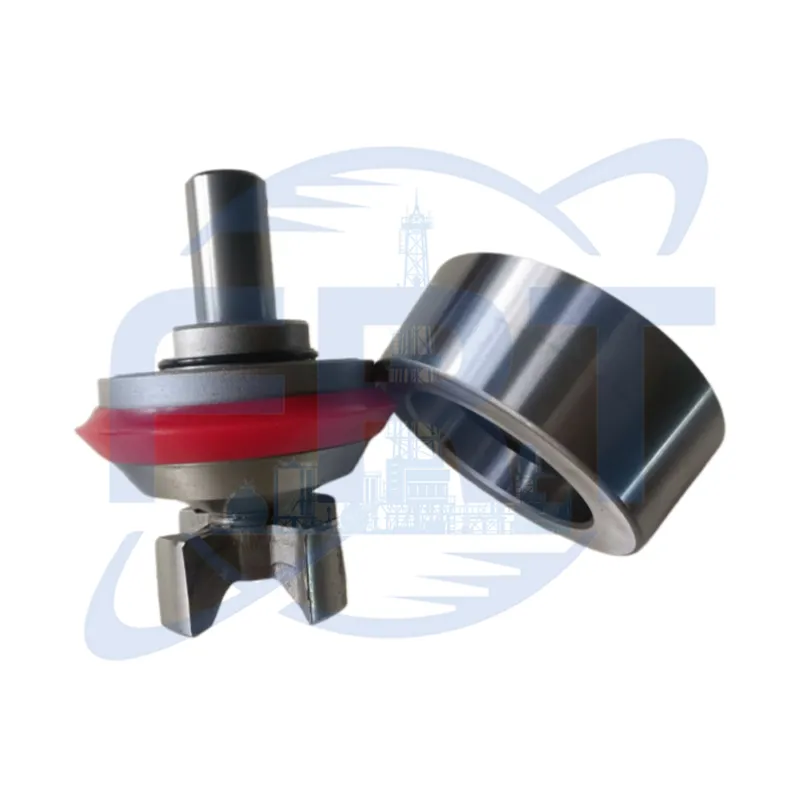

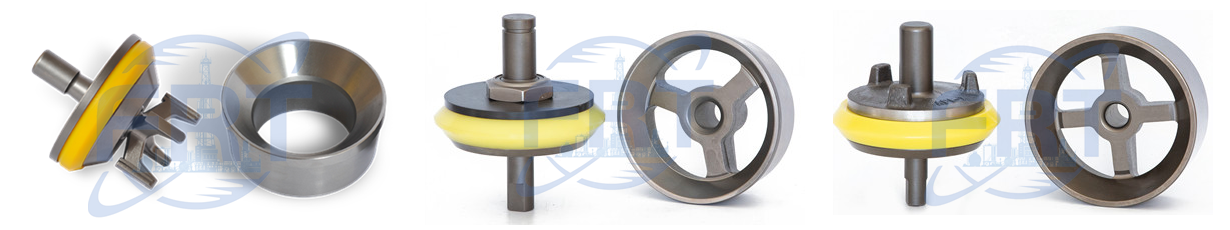

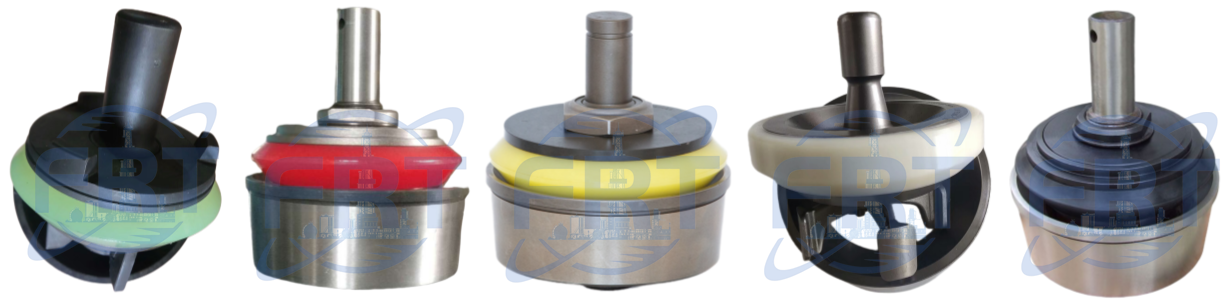

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-rib valve and a four-rib valve. The valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI, the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions.
The seal of valve body is made of polyurethane or synthetic rubber and has high wear resistance and long service life. It can be removed and replaced easily.

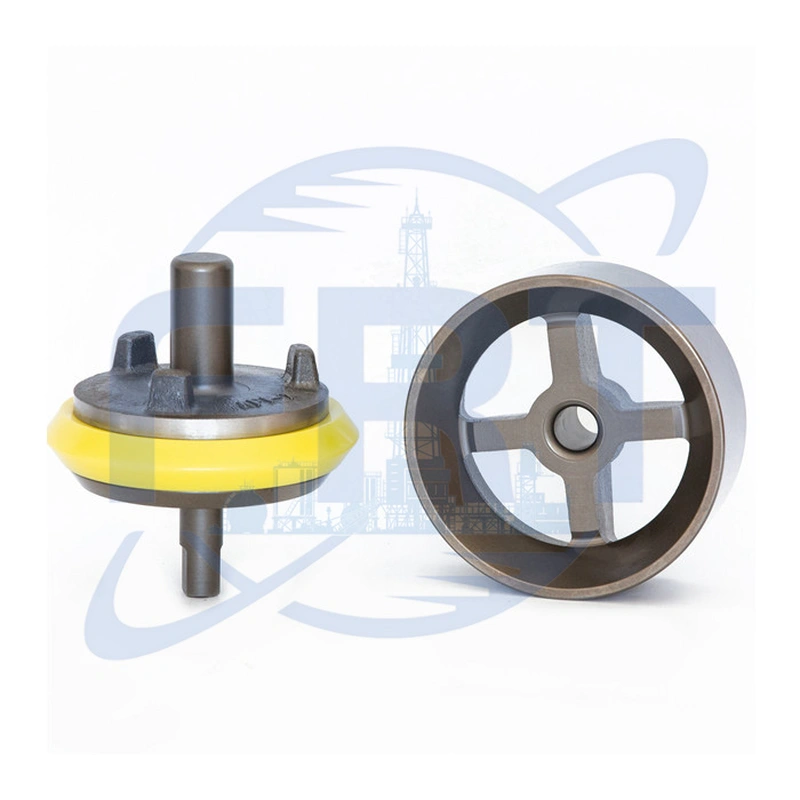

Four-rib valve body is made of high-quality forged steel with high strength and hardness. The rubber is fixed on the valve body by the valve nut. The valve seat has high strength and impact resistance, and is suitable for high-pressure jet drilling. Compared with four ribs, the three-rib valve body seat has larger displacement, and can provide directly assembled valve body and valve rubber with long service life. The rubber is made of polyurethane material, and the effective service time is more than 300 hours, which greatly improves the overall service life of the valve assembly.

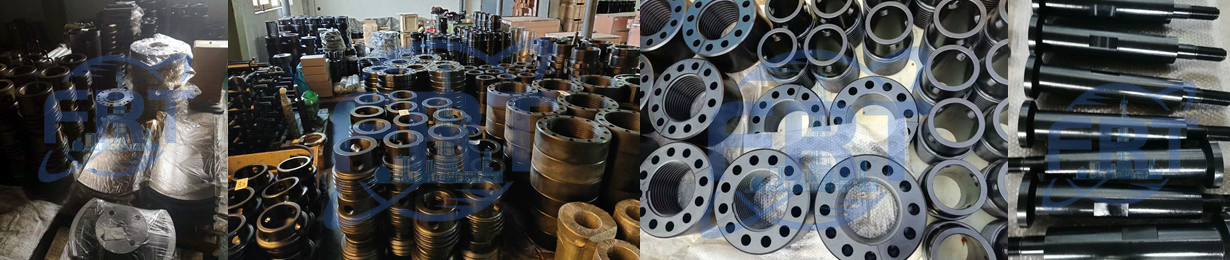

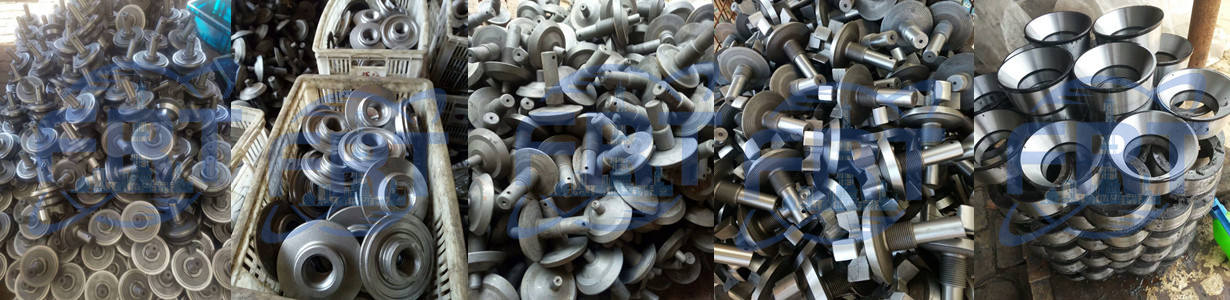

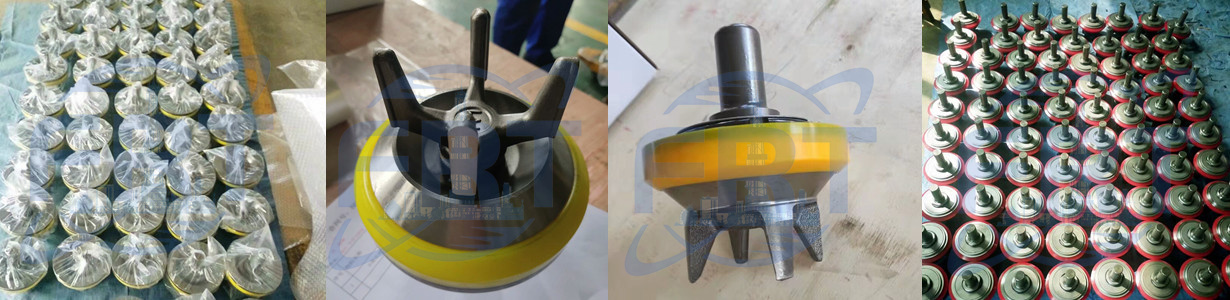

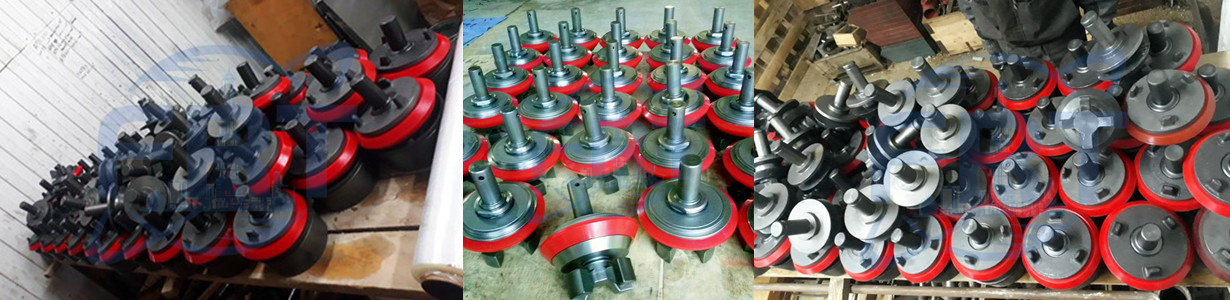

Semi finished products in the workshop
BOMCO | F-500 | F-800 | F-1000 | F-1300 | F-1600 | F-1600L | F-2200L |
LANSHI | F-500 | F-800 | F-1000 | F-1300 | F-1600/F-1600L | F-1600H | |
3NB500C | 3NB1000C | 3NB1300C | 3NB1600 | ||||
P-800 | P-1000 | P-1300 | P-1600 | P-2200 | |||
HONGHUA | HHF-500 | HHF-800 | HHF-1000 | HHF-1300 | HHF-1600 | HHF-1600HL | HHF-2200HL |
RONGSHENG (RS) | RSF-500 | RSF-800 | RSF-1000 | RSF-1300 | RSF-1300L | RSF-1600 | RSF-1600HL |
RG | RGF-500 | RGF-800 | RGF-1000 | RGF-1300 | RGF-1600 | ||
QINGZHOU (QZ) | QZF-500 | QZF-800 | QZF-1000 | QZF-1300 | QZF-1600 | ||
QZ3NB-800 | QZ3NB-1000 | QZ3NB-1300 | QZ3NB-1300A | QZ3NB-1600 | |||
RONGLI (RL) | RL-F500 | RL-F800 | RL-F1000 | RL-F1300 | RL-F1600 | RL-F2200 | |
RL-3NB350 | RL-3NB500(A) | RL-3NB600 | RL-3NB800 | RL-3NB1000(A/D) | RL-3NB1300(A/D) | RL-3NB1600 | |
TSC | WF-400 | WF-450 | WF-700 | WF-1000 | WF-1600 | ||
EMSCO | F-350/500 | F-650 | F-800 | F-1000 | F-1300 | F-1600 | |
FA 1300 | FB-1300 | FA-1600 | FB-1600 | DB-550 | D-300 | D-700 | |
NATIONAL | 8-P-80 | 9-P-100 | 10-P-130 | 12-P-160 | 14-P-220 | ||
OILWELL | A-600-PT | A-850-PT | A-1100-PT | A-1400-PT | A-1700-PT | ||
A-350 | A-560 | A-650 | A-850 | A-1100 | A-1400 | A-1700 | |
IDECO | T-500 | T-800 | T-1000 | T-1300 | T-1600 | ||
WIRTH | TPK-1000 | TPK-1300 | TPK-1600 | TPK-2000 | TPK-2200 | ||
ELLS WILLIAMS | E-447 | E-2200 | W440 | W446 | |||
GARDNER DENVER | PZ-7 | PZ-8 | PZ-9 | PZ-10 | PZ-11 | PZ-L | PA-8 |
FY-FXD | FO-FXO | FD-FXX | FG-GXG | ||||
RUSSIA PUMPS | UNBT 650 | UNBT 950 | UNBT 1180L | UNB 600 | NBT 600 | ETC. |

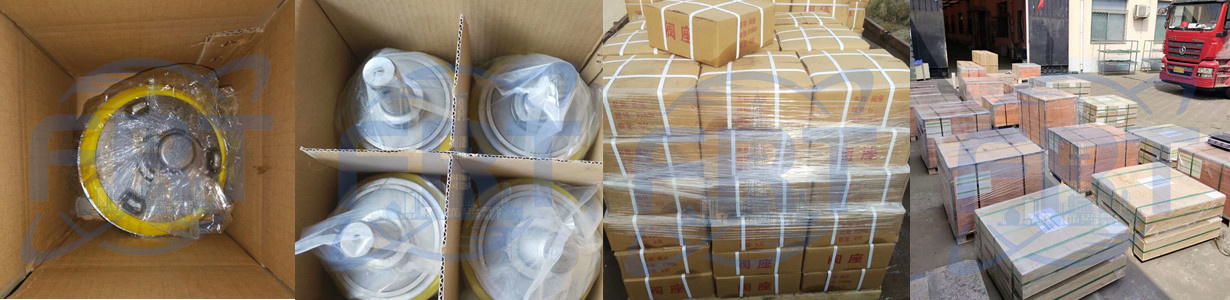

Goods will be deliveres by sea, air, train, truck, etc.
