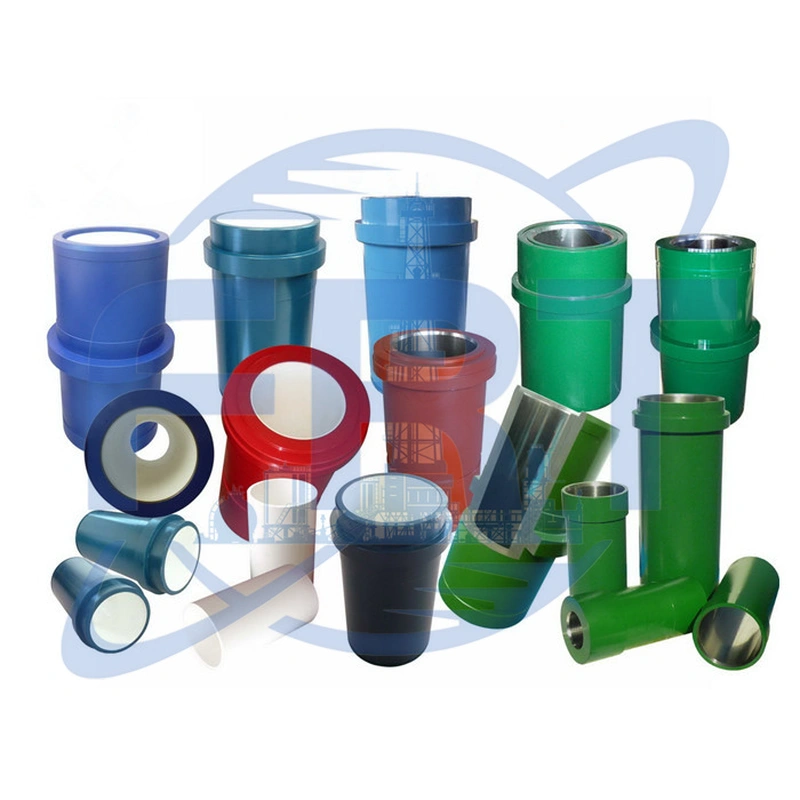

mud pump spare parts mud pump liner

The bi-metal cylinder Liner of our company combined with the advantages of abrasion hot-forging out liner and anticorrosion high chrome inner liner. The out liner is made of high quality carbon steel by hot pressing forming. Its tensile strength is over 900000psi. The inner liner is made of high-chromium alloy by centrifugal casting.

The ceramic liner is the best choice for high pressure mud pumps. It is manufactured strictly in accordance with specific technical standards by use of advanced processing techniques. The ceramic liner comes in various specifications, which come in Φ150~180×310~440mm.

Description

Application
Liners are used as a kind of mud pump fluid end accessories in the oil drilling industry.

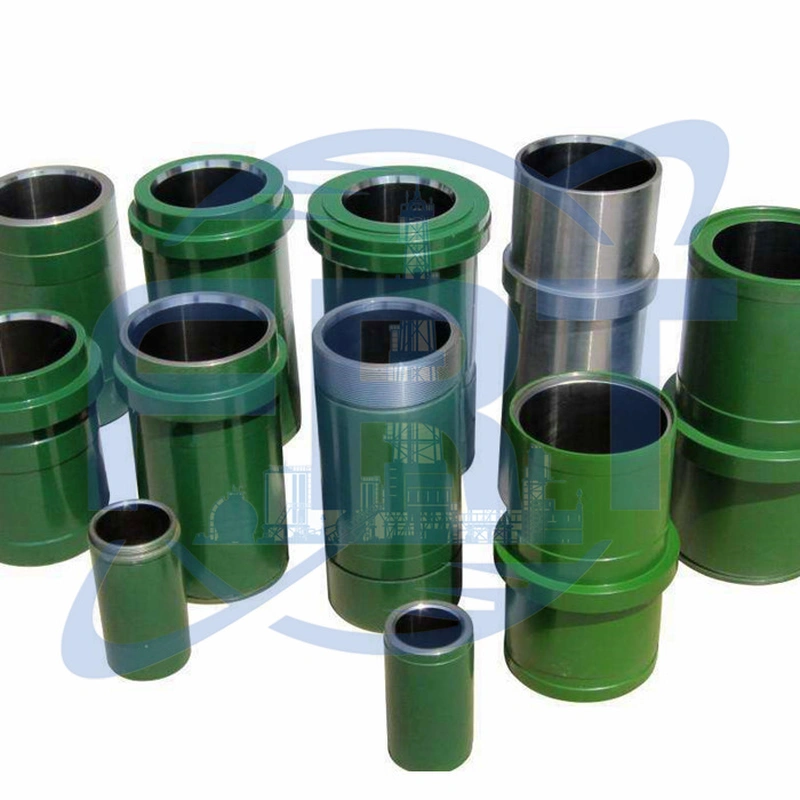

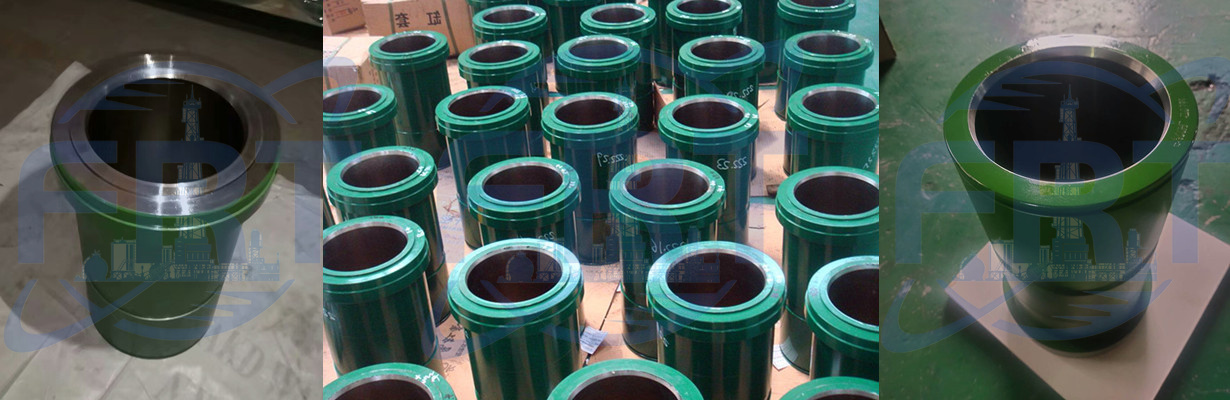

Bi-metal Liner
Features
Our bimetal liner, API complaint, provides wear-resistant outer sleeve and high chrome corrosion-resistant inner sleeve. The material of liner is ZG45 steel, the high chrome liner has high rigidity of HRC≥61-65 after heat treatment.
Advantages
Production Process: The bi-metal cylinder Liner of our company combined with the advantages of abrasion hot-forging out liner and anticorrosion high chrome inner liner. The out liner is made of high quality carbon steel by hot pressing forming. Its tensile strength is over 900000psi. The inner liner is made of high-chromium alloy by centrifugal casting.
The bimetal liner offers long service life of about 1000 hours, which is 2 to 3 times the lifetime of common ones in severe environment.

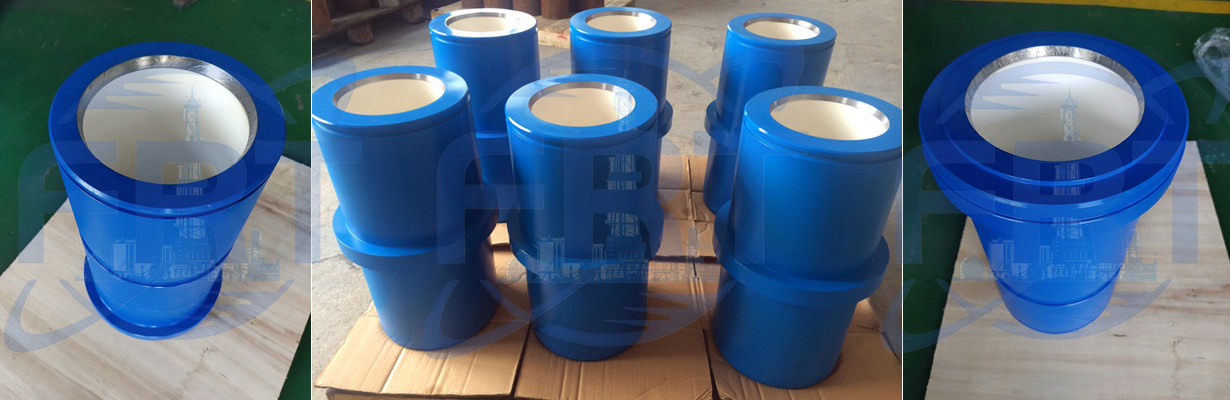

Ceramic Liner
Features
Compared with the metal liner, the ceramic liner is wear and corrosion resistant and has extended working life. The ceramic liner helps reduce drilling cost and labor intensity. Made of internationally advanced, new material toughened zirconium oxide, the liner provides fracture toughness of K10-15Mpa (10 times that of the traditional one), and bending strength of σ600-800Mpa. The ceramic liner has excellent wear and corrosion resisting properties, with the Weber number being m18 and the elastic modulus of E200Gpa.

Advantages

1. The ceramic liner is the best choice for high pressure mud pumps. It is manufactured strictly in accordance with specific technical standards by use of advanced processing techniques. The ceramic liner comes in various specifications, which come in Φ150~180×310~440mm. 2. Ceramic liner widely used in tough environments such as deep oil reservoirs, hard stratum, and offshore oil and natural gas exploitation. 3. The service life is 5 times higher than bi-metal liner, up to 4000 hours.

5. It can improve drilling efficiency and reduce the cost of maintenance and labor.
4. Zirconia ceramic liner has various advantages, such as wear-resistance, erosion-resistance, high pressure-resistance, high hardness, and so on.
Avaliable mud pump models
BOMCO
F-500
F-800
F-1000
F-1300
F-1600
F-1600L
F-2200L
LANSHI
F-500
F-500
F-500
F-1300
F-1600/F-1600L
F-1600H

3NB500C
3NB1000C
3NB1300C
3NB1600



P-800
P-1000
P-1300
P-1600
P-2200


HONGHUA
HHF-500
HHF-800
HHF-1000
HHF-1300
HHF-1600
HHF-1600HL
HHF-2200HL
RONGSHENG (RS)
RSF-500
RSF-800
RSF-1000
RSF-1300
RSF-1300L
RSF-1600
RSF-1600HL
RG
RGF-500
RGF-800
RGF-1000
RGF-1300
RGF-1600


QINGZHOU (QZ)
QZF-500
QZF-800
QZF-1000
QZF-1300
QZF-1600


QZ3NB-800
QZ3NB-1000
QZ3NB-1300
QZ3NB-1300A
QZ3NB-1600


RONGLI (RL)
RL-F500
RL-F800
RL-F1000
RL-F1300
RL-F1600
RL-F2200

RL-3NB350
RL-3NB500(A)
RL-3NB600
RL-3NB800
RL-3NB1000 (A/D)
RL-3NB1300 (A/D)
RL-3NB1600
TSC
WF-400
WF-450
WF-700
WF-1000
WF-1600


EMSCO
F-350/500
F-650
F-800
F-1000
F-1300
F-1600

FA 1300
FB-1300
FA-1600
FB-1600
DB-550
D-300
D-700
NATIONAL
8-P-80
9-P-100
10-P-130
12-P-160
14-P-220


OILWELL
A-600-PT
A-850-PT
A-1100-PT
A-1400-PT
A-1700-PT


A-350
A-560
A-650
A-850
A-1100
A-1400
A-1700
IDECO
T-500
T-800
T-1000
T-1300
T-1600


WIRTH
TPK-1000
TPK-1300
TPK-1600
TPK-2000
TPK-2200


ELLS WILLIAMS
E-447
E-2200
W440
W446



GARDNER DENVER
PZ-7
PZ-8
PZ-9
PZ-10
PZ-11
PZ-L
PA-8
FY-FXD
FO-FXO
FD-FXX
FG-GXG



RUSSIA PUMPS
UNBT 650
UNBT 950
UNBT 1180L
UNB 600
NBT 600
ETC.

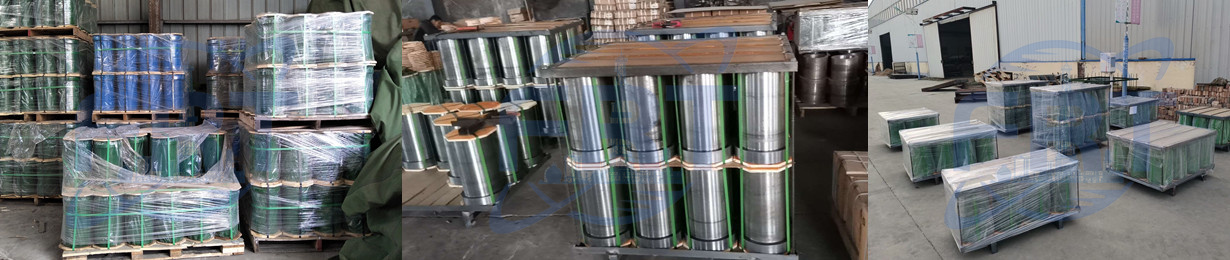

Packing&Shipping
The liners will be packed in plywood wooden box or by requirements.
Goods will be deliveres by sea, air, train, truck, etc.

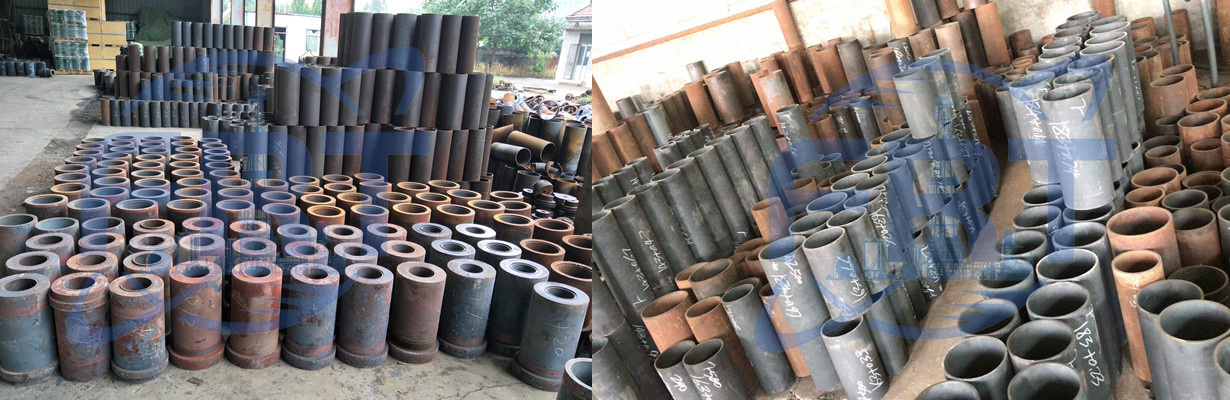

Company Introduction
Our main products include drilling mud pumps, liners, pistons, valves & valve seats, piston rods, extension rods, modules, pulsation dampener, liner & valve cover, cross-head, flange, etc. All of our products are strictly produced according to API-7K and ISO9001 Standard.
Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa.


FAQ

1. Are the liners in stock?
A: Some are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the liners according to my requirements?

A: Yes, we can produce liners as per your requirements, but all need to be discussed before signing the contract.


5. Can we visit your company before placing order?
Welcome to our company any time you like.
