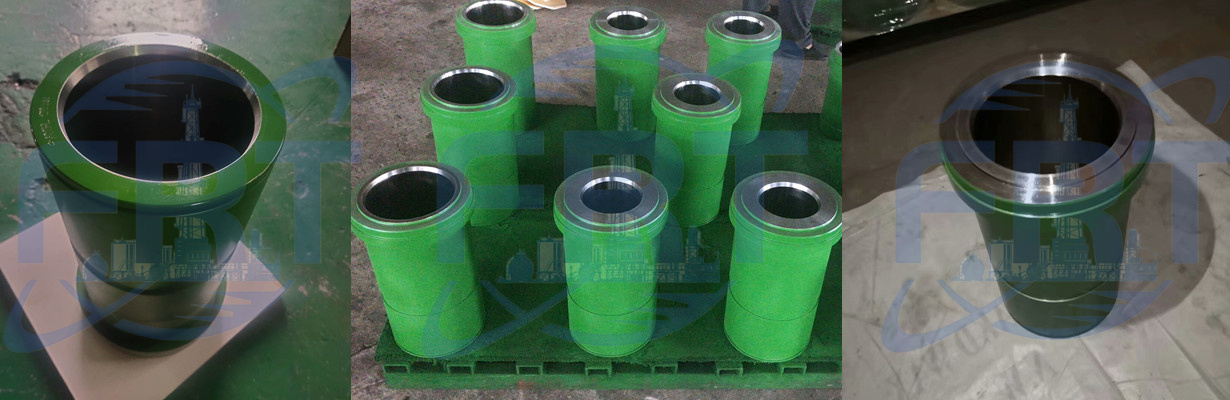

Mud pump spare parts mud pump bi-metal liner

Our bimetal liner, API complaint, provides wear-resistant outer sleeve and high chrome corrosion-resistant inner sleeve. The material of liner is ZG45 steel, the high chrome liner has high rigidity of HRC≥61-65 after heat treatment.

Advantages

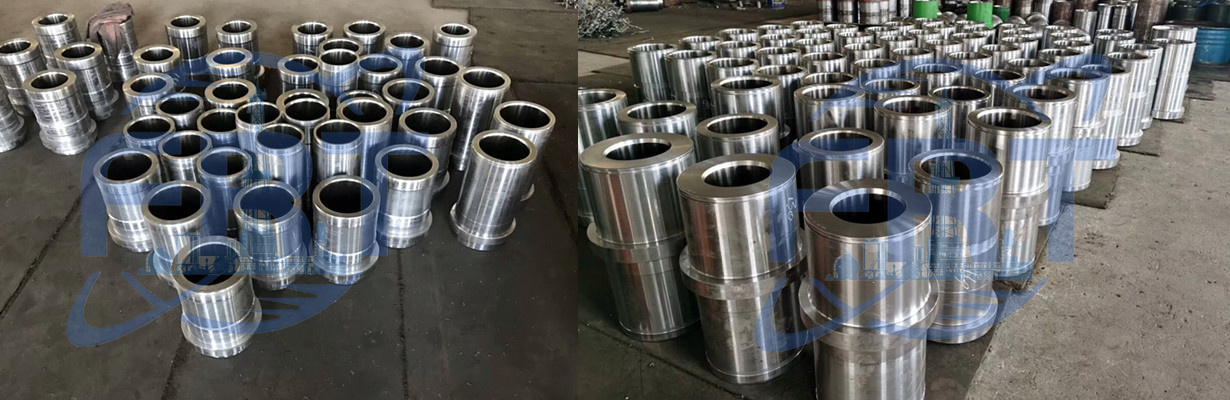

Production Process: The bi-metal cylinder Liner of our company combined with the advantages of abrasion hot-forging out liner and anticorrosion high chrome inner liner. The out liner is made of high quality carbon steel by hot pressing forming. Its tensile strength is over 900000psi. The inner liner is made of high-chromium alloy by centrifugal casting.

The bimetal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe environment.

Description

Application

Bimetal liner is used as a kind of mud pump fluid end accessories in the oil drilling industry.

Features

Advantages

The bimetal liner offers long service life of about 800 hours, which is 2 to 3 times the lifetime of common ones in severe environment.

Size Information

Avaliable mud pump models

BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600L	F-2200L
LANSHI	F-500	F-800	F-1000	F-1300	F-1600/F-1600L	F-1600H
	3NB500C	3NB1000C	3NB1300C	3NB1600
	P-800	P-1000	P-1300	P-1600	P-2200
HONGHUA	HHF-500	HHF-800	HHF-1000	HHF-1300	HHF-1600	HHF-1600HL	HHF-2200HL
RONGSHENG (RS)	RSF-500	RSF-800	RSF-1000	RSF-1300	RSF-1300L	RSF-1600	RSF-1600HL
RG	RGF-500	RGF-800	RGF-1000	RGF-1300	RGF-1600
QINGZHOU (QZ)	QZF-500	QZF-800	QZF-1000	QZF-1300	QZF-1600
	QZ3NB-800	QZ3NB-1000	QZ3NB-1300	QZ3NB-1300A	QZ3NB-1600
RONGLI (RL)	RL-F500	RL-F800	RL-F1000	RL-F1300	RL-F1600	RL-F2200
RONGLI (RL)	RL-3NB350	RL-3NB500(A)	RL-3NB600	RL-3NB800	RL-3NB1000(A/D)	RL-3NB1300(A/D)	RL-3NB1600
TSC	WF-400	WF-450	WF-700	WF-1000	WF-1600
EMSCO	F-350/500	F-650	F-800	F-1000	F-1300	F-1600
EMSCO	FA 1300	FB-1300	FA-1600	FB-1600	DB-550	D-300	D-700
NATIONAL	8-P-80	9-P-100	10-P-130	12-P-160	14-P-220
OILWELL	A-600-PT	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
OILWELL	A-350	A-560	A-650	A-850	A-1100	A-1400	A-1700
IDECO	T-500	T-800	T-1000	T-1300	T-1600
WIRTH	TPK-1000	TPK-1300	TPK-1600	TPK-2000	TPK-2200
ELLS WILLIAMS	E-447	E-2200	W440	W446
GARDNER DENVER	PZ-7	PZ-8	PZ-9	PZ-10	PZ-11	PZ-L	PA-8
GARDNER DENVER	FY-FXD	FO-FXO	FD-FXX	FG-GXG
RUSSIA PUMPS	UNBT 650	UNBT 950	UNBT 1180L	UNB 600	NBT 600	ETC.

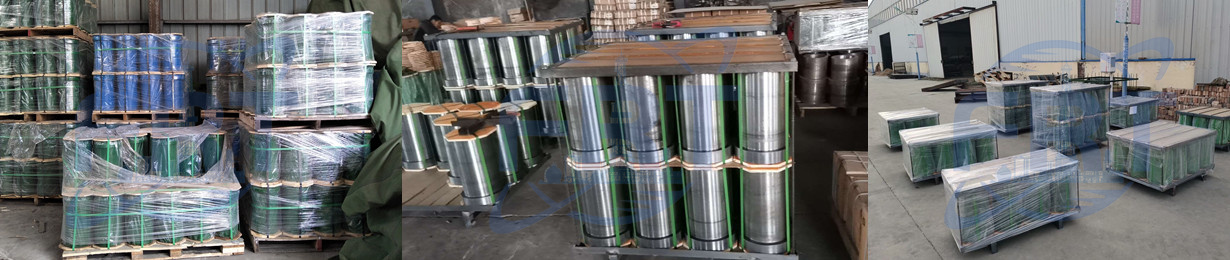

Packing&Shipping

The liners will be packed in plywood wooden box.

Goods will be deliveres by sea, air, train, truck, etc.

Company Introduction

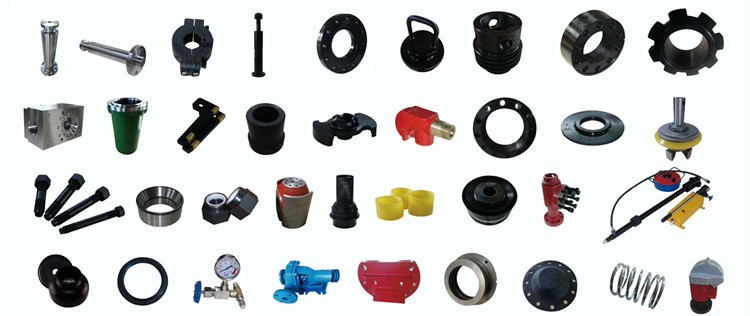

Our main products include drilling mud pumps, liners, pistons, valves & valve seats, piston rods, extension rods, modules, pulsation dampener, liner & valve cover, cross-head, flange, etc. All of our products are strictly produced according to API-7K and ISO9001 Standard.

Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa.
