Mud pump spare parts BOMCO mud pump valve assembly

Description

The valve assembly is the key component of the hydraulic end of the mud pump. The valve assembly consists of valve body, valve rubber, valve nut, guide frame, gland, clamp spring, steel ball, etc. (i.e. valve assembly with valve seat removed).

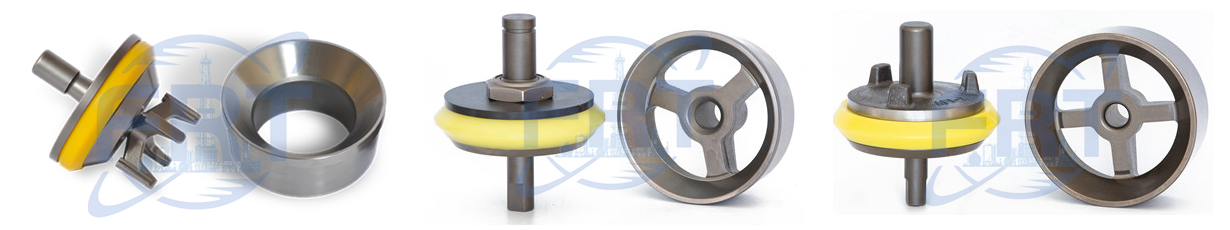

According to the inner hole form of the valve seat, the valve assembly can be divided into a through hole valve, a three-rib valve and a four-rib valve. The valve body and the valve seat of the valve assembly are carburized and quenched with high-quality bonded steel 20 Customer-relationship Management NTI, the surface hardness is greater than HRC60, and the conical surface is ground to ensure high roughness requirements and geometric dimensions.

The seal of valve body is made of polyurethane or synthetic rubber and has high wear resistance and long service life. It can be  removed and replaced easily.

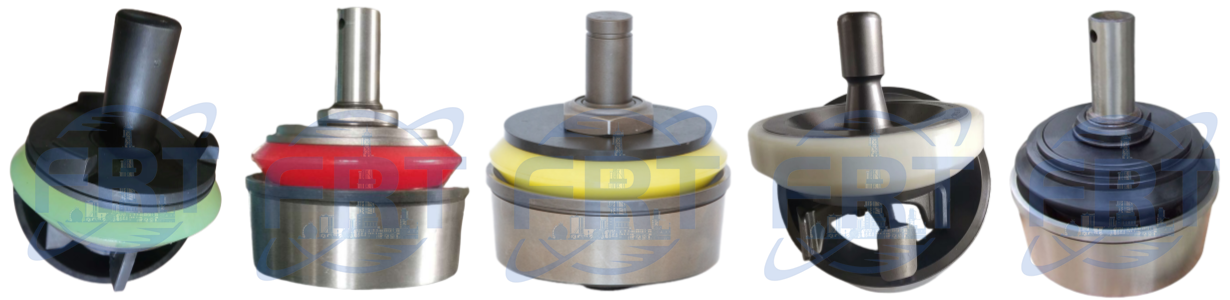

55 mud pump valve assembly.png

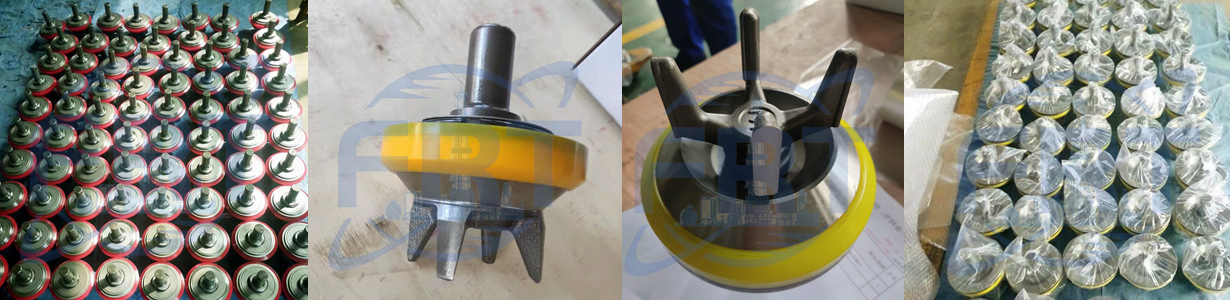

Four-rib valve body is made of high-quality forged steel with high strength and hardness. The rubber is fixed on the valve body by the valve nut. The valve seat has high strength and impact resistance, and is suitable for high-pressure jet drilling. Compared with four ribs, the three-rib valve body seat has larger displacement, and can provide directly assembled valve body and valve rubber with long service life. The rubber is made of polyurethane material, and the effective service time is more than 300 hours, which greatly improves the overall service life of the valve assembly.

Common part number of mud pump valve

AH0000020100

AH33001-05.17A.00

AH0000020300

GH3161-0511-00

AH36001-05.12A.00

AH36001-05.12.00

AH0000020400

AH35001-05.14.00

AH0000020600

AH0000020500

RGF1000-05.17.00

RS11309.05.10.00

Our company can produce all kinds of valve bodies and seats for different drilling mud pumps. It supplies tens of thousands of sets of oil fields at home and abroad every year. The valve assembly consists of a valve body assembly and a valve seat. The valve body and valve seat supplied by our company are all made of high-grade alloy steel by integral die forging and are processed according to strict technological regulations.

Avaliable mud pump models

BOMCO	F-500	F-800	F-1000	F-1300	F-1600	F-1600L	F-2200L
LANSHI	F-500	F-800	F-1000	F-1300	F-1600/F-1600L	F-1600H
	3NB500C	3NB1000C	3NB1300C	3NB1600
	P-800	P-1000	P-1300	P-1600	P-2200
HONGHUA	HHF-500	HHF-800	HHF-1000	HHF-1300	HHF-1600	HHF-1600HL	HHF-2200HL
RONGSHENG (RS)	RSF-500	RSF-800	RSF-1000	RSF-1300	RSF-1300L	RSF-1600	RSF-1600HL
RG	RGF-500	RGF-800	RGF-1000	RGF-1300	RGF-1600
QINGZHOU (QZ)	QZF-500	QZF-800	QZF-1000	QZF-1300	QZF-1600
QINGZHOU (QZ)	QZ3NB-800	QZ3NB-1000	QZ3NB-1300	QZ3NB-1300A	QZ3NB-1600
RONGLI (RL)	RL-F500	RL-F800	RL-F1000	RL-F1300	RL-F1600	RL-F2200
RONGLI (RL)	RL-3NB350	RL-3NB500(A)	RL-3NB600	RL-3NB800	RL-3NB1000(A/D)	RL-3NB1300(A/D)	RL-3NB1600
TSC	WF-400	WF-450	WF-700	WF-1000	WF-1600
EMSCO	F-350/500	F-650	F-800	F-1000	F-1300	F-1600
EMSCO	FA 1300	FB-1300	FA-1600	FB-1600	DB-550	D-300	D-700
NATIONAL	8-P-80	9-P-100	10-P-130	12-P-160	14-P-220
OILWELL	A-600-PT	A-850-PT	A-1100-PT	A-1400-PT	A-1700-PT
OILWELL	A-350	A-560	A-650	A-850	A-1100	A-1400	A-1700
IDECO	T-500	T-800	T-1000	T-1300	T-1600
WIRTH	TPK-1000	TPK-1300	TPK-1600	TPK-2000	TPK-2200
ELLS WILLIAMS	E-447	E-2200	W440	W446
GARDNER DENVER	PZ-7	PZ-8	PZ-9	PZ-10	PZ-11	PZ-L	PA-8
GARDNER DENVER	FY-FXD	FO-FXO	FD-FXX	FG-GXG
RUSSIA PUMPS	UNBT 650	UNBT 950	UNBT 1180L	UNB 600	NBT 600	ETC.

Related Products

Packing&Shipping

The valve assemblies will be packed in plywood wooden box.

Goods will be deliveres by sea, air, train, truck, etc.

Company Introduction

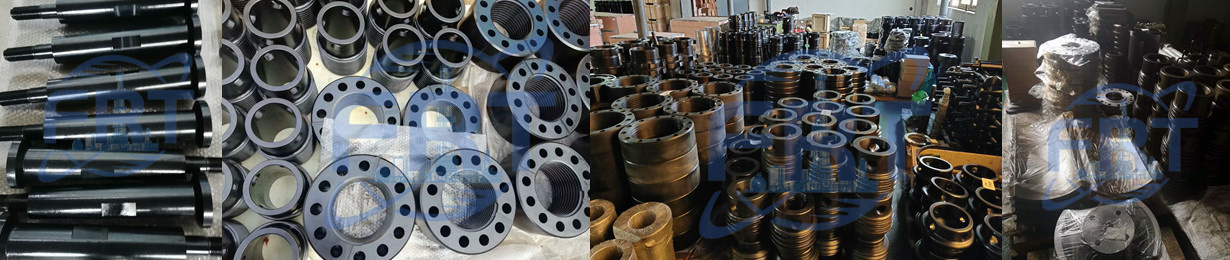

Our main products include drilling mud pumps, liners, pistons, valves & valve seats, piston rods, extension rods, modules, pulsation dampener, liner & valve cover, cross-head, flange, etc. All of our products are strictly produced according to API-7K and ISO9001 Standard.

Our products have a presence in more than 50 countries and regions in the world, covering North America, Latin America, Russia and Central Asia, the Middle East, Asia Pacific, Europe and Africa.
