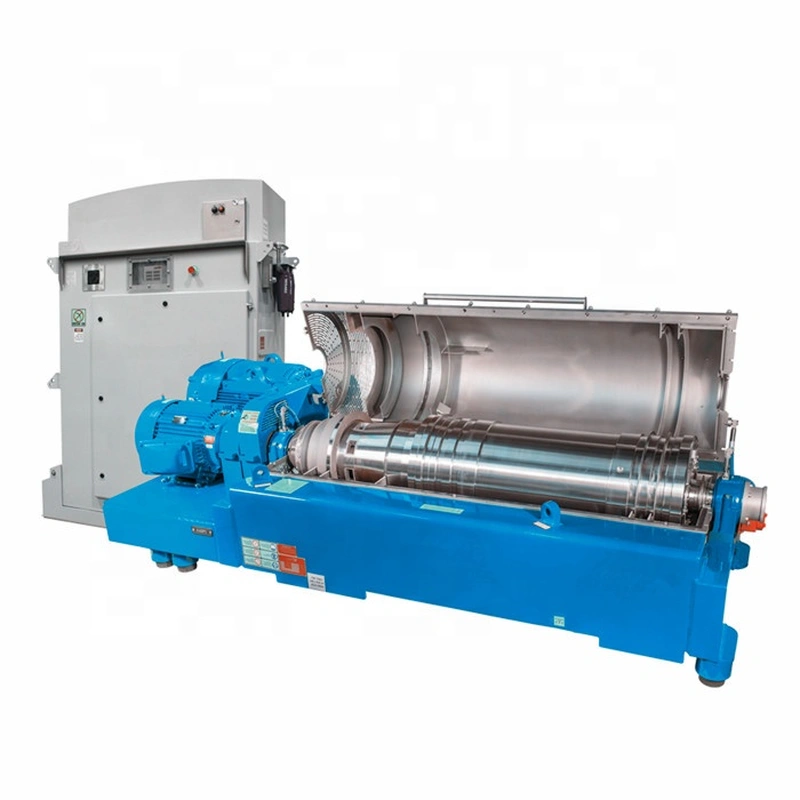

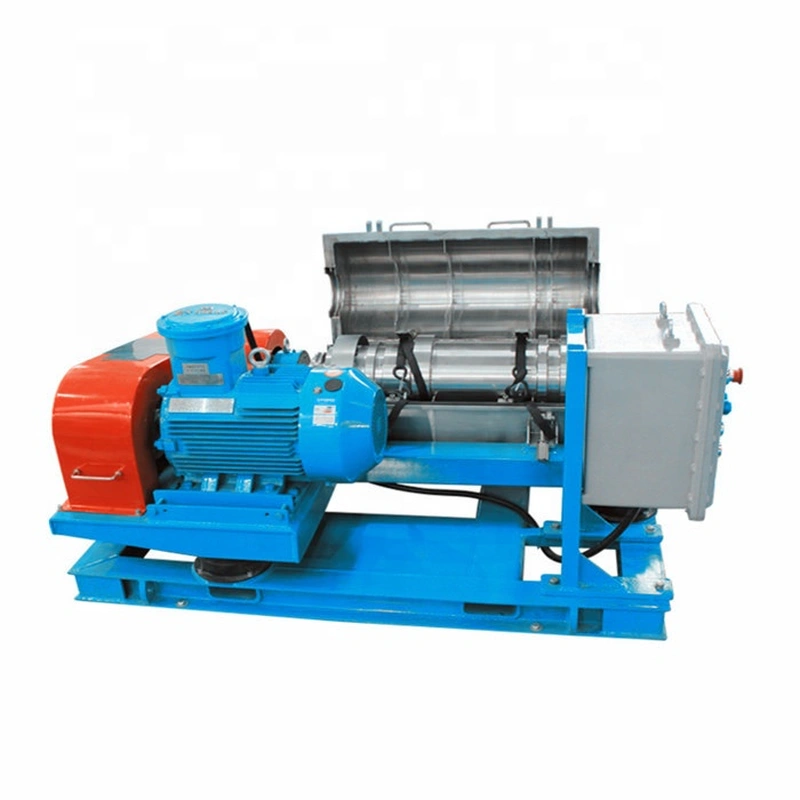

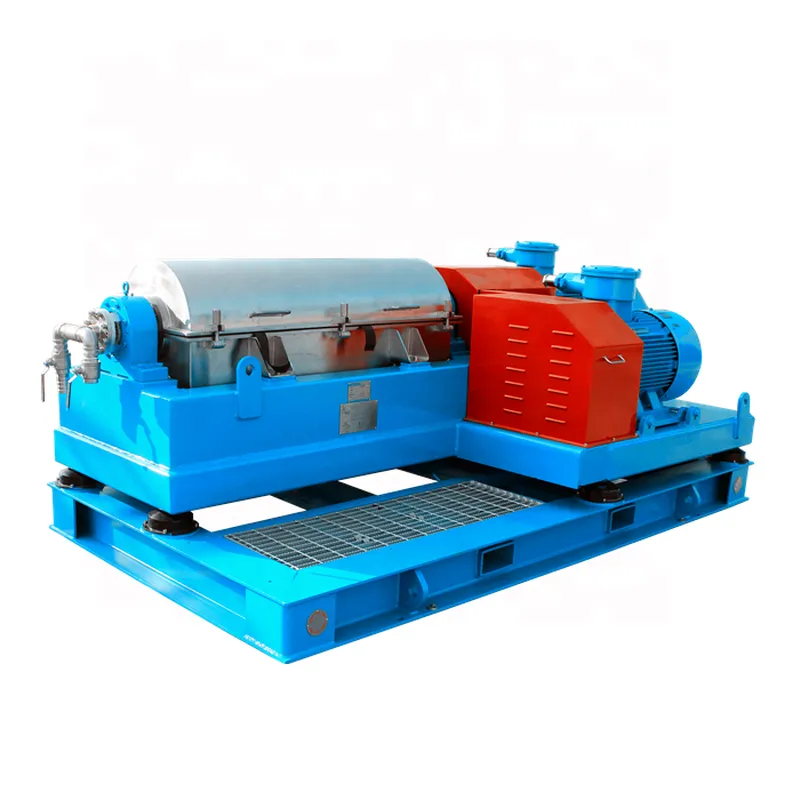

Drilling mud decanting centrifuge centrifugal machine

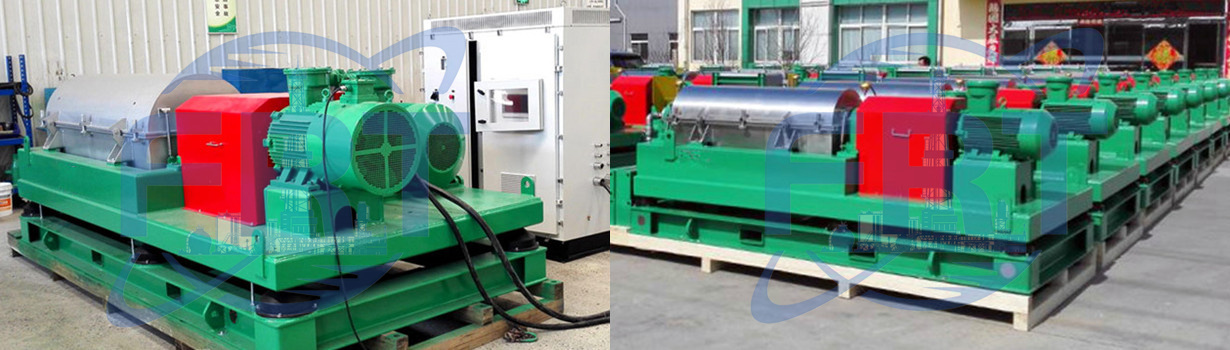

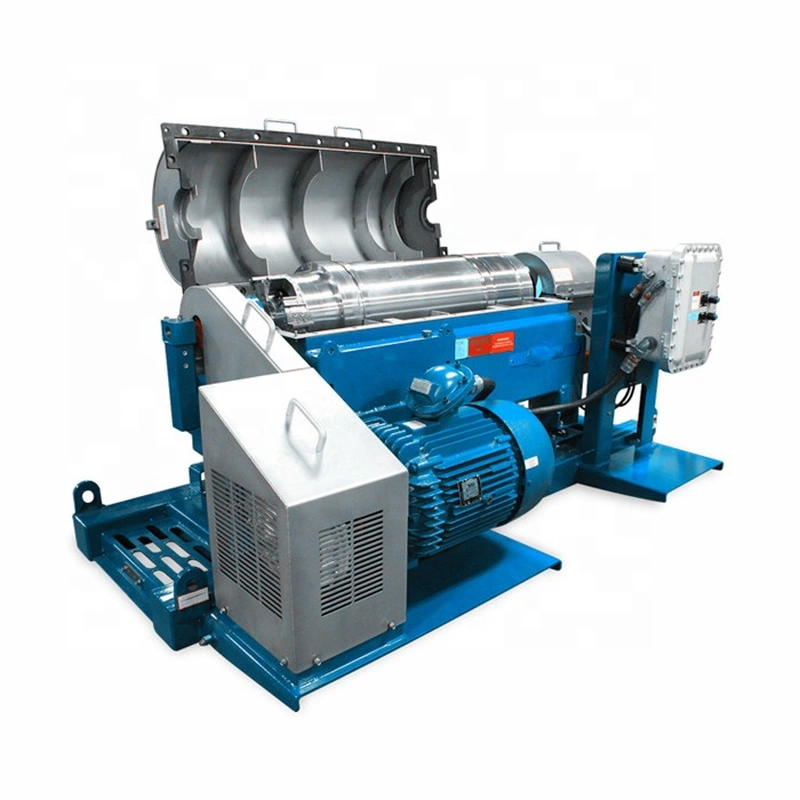

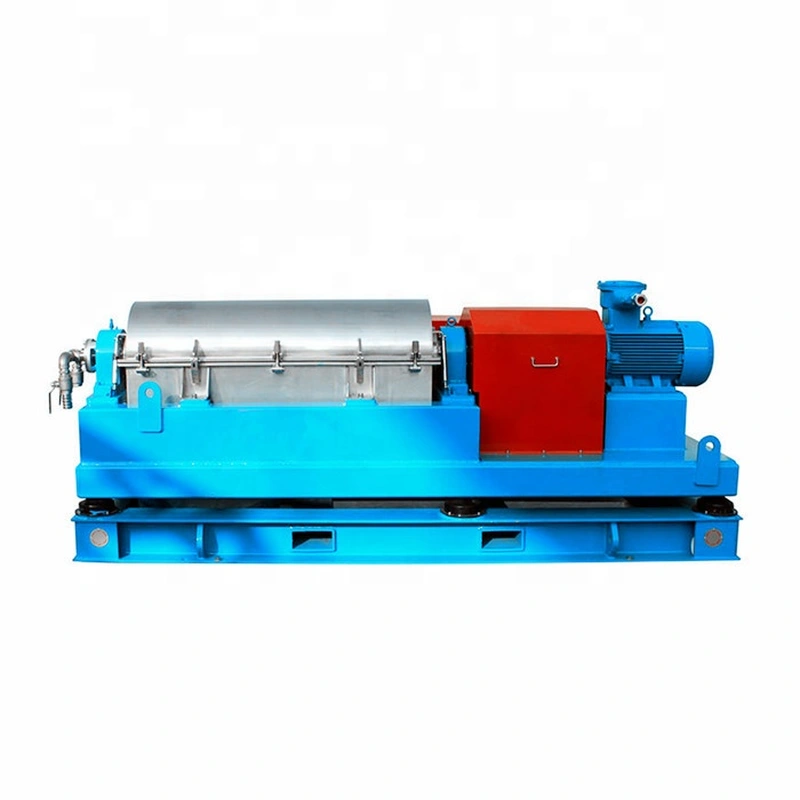

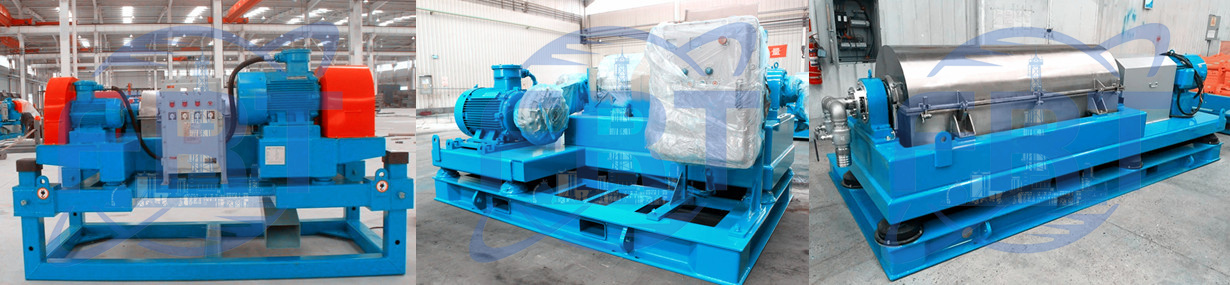

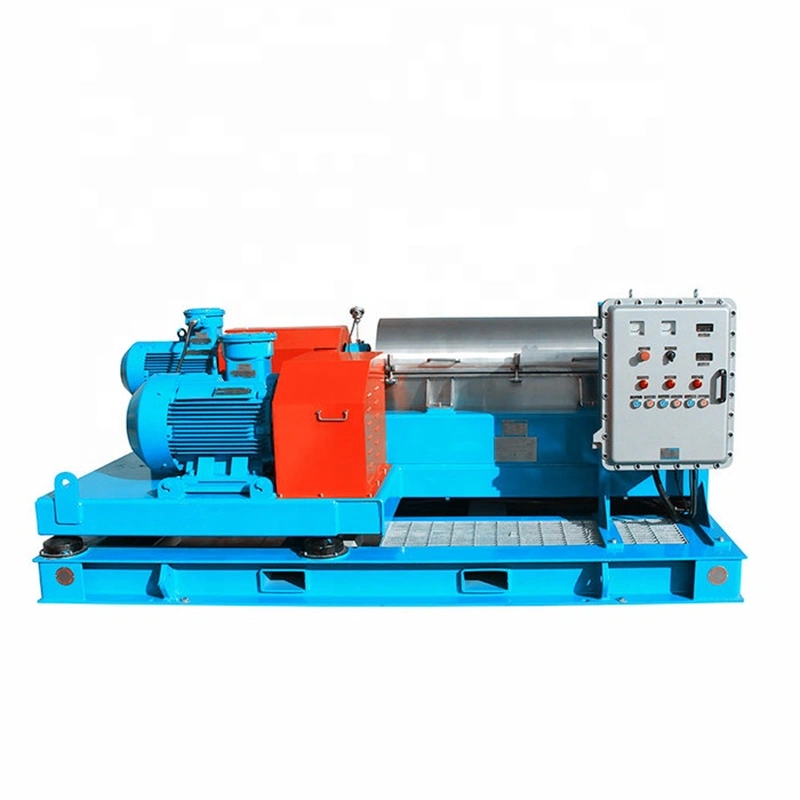

LW means horizontal spiral type which is a normal model of decanting centrifuge. Decanter Centrifuge is the last stage equipment in drilling mud system for solids control and mud cleaning. The superiority of Decanting Centrifuge is embodied in the solids processing size. Decanter Centrifuge could remove the solid particles with size 2-7 microns using the principle of centrifugal action, it is an ideal choice for separating particles in drilling mud. Always there is a screw pump or submersible pump to feed the mud to Decanter Centrifuge. After the drilling fluids being fed into the centrifuge drum, under the function of centrifugal force, solid phase particles are pushed to the internal wall of the drum, then to the solid discharge export of the small end of the drum and excreted. While the fluids is excreted from the overflow hole of the large end. Such cycle is to achieve the purpose of continuous separation. High speed decanting centrifuge are more effective for separation of fine solids.
