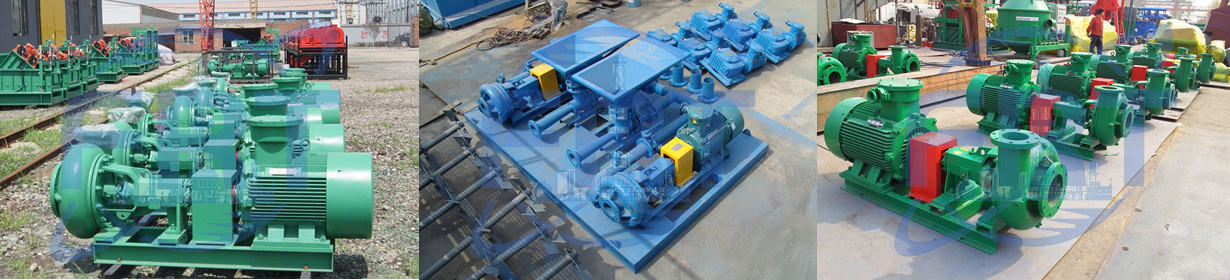

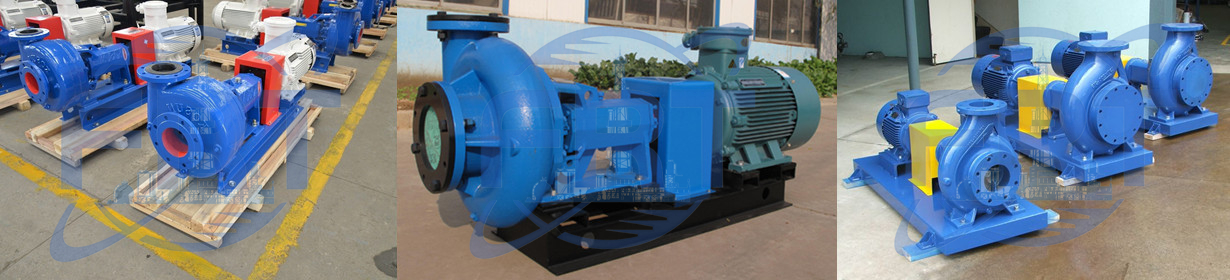

SB Series centrifugal sand pump for drilling mud

Description

SB Series Centrifugal pump is used for transferring slurry or mud or water. It can be used as feeding pump for desander, desilter, or used as mixing pump for Jet mud mixer. Also it can be used as trip pump, and supercharging pump for rig mud pump. All GN model centrifugal pump use tungsten carbide mechanical seal, with famous brand Bearing. And spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily. Open impeller design that lowers axial thrust loads, and make it easier for installation, repair and maintenance.

Centrifugal Sand Pump Specifications

Model	Flow (m3/h)	Lift (m)	Power (Kw)	Motor Speed(RPM)	Impeller (Inch)
SB8x6-14J	320m3/h	35m	75kW	1450RPM (50Hz)	14in
SB8x6-12J				1750RPM (60Hz)	12in
SB8x6-13J	272m3/h	35m	55kW	1450RPM (50Hz)	13in
SB8x6-11J				1750RPM (60Hz)	11in
SB6x5-13J	200m3/h	35m	45kW	1450RPM (50Hz)	13in
SB6x5-10J				1750RPM (60Hz)	10in
SB6x5-12J	150m3/h	30m	37kW	1450RPM (50Hz)	12in
SB6x5-9.5J				1750RPM (60Hz)	9.5in
SB5x4-13J	120m3/h	35m	30kW	1450RPM (50Hz)	13in
SB5x4-11J				1750RPM (60Hz)	11in
SB5x4-12J	90m3/h	30m	22kW	1450RPM (50Hz)	12in
SB5x4-10J				1750RPM (60Hz)	10in
SB4x3-13J	65m3/h	35m	18.5kW	1450RPM (50Hz)	13in
SB4x3-12J				1750RPM (60Hz)	12in
SB4x3-12J	55m3/h	28m	15kW	1450RPM (50Hz)	12in
SB4x3-10J				1750RPM (60Hz)	10in
SB4x3-11J	45m3/h	25m	11kW	1450RPM (50Hz)	11in
SB4x3-9.5J				1750RPM (60Hz)	9.5in
SB3x2-10J	35m3/h	35m	7.5kW	1450RPM (50Hz)	10in
SB3x2-9J				1750RPM (60Hz)	9in

Centrifugal Sand Pump Features and Benefits

1. All spare parts interchangeable with most of the international Brand pump which helps customer to source spare parts easily

2. Thick, Strong Concentric casing provides extended life over conventional volute designs. The Concentric design minimizes turbulence and abrasive wear.

3. Pump casing made from hard ductile iron alloy, increased abrasion resistant capability compared to competitors pump.

4. Wide open-vane impeller creates lower axial thrust for improved bearing life.

5. Pump impeller made from hard ductile iron alloy, extended life over competitors design.

6. Anti-loosening impeller lock bolt to eliminate pump damage in case of improper motor hook-up.

7. High quality no-adjustment mechanical seal to provide zero leakage and longer operation life.

8. Replaceable shaft sleeve prevents shaft wear.

9. All bearings from top brand for reliable operation.

10. The skid for supporting pump and motor is made from casting instead of welding to provide reliable operation and less vibration in a result to extend the pump and motor life.

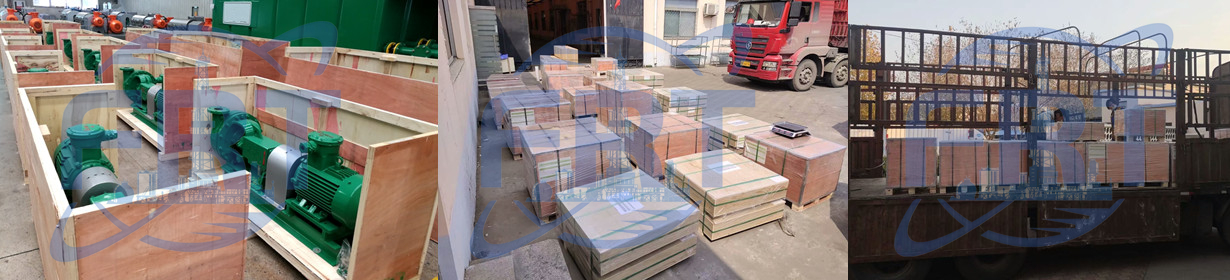

Packing&Shipping

The pumps will be packed in plywood wooden box or on pallet.
