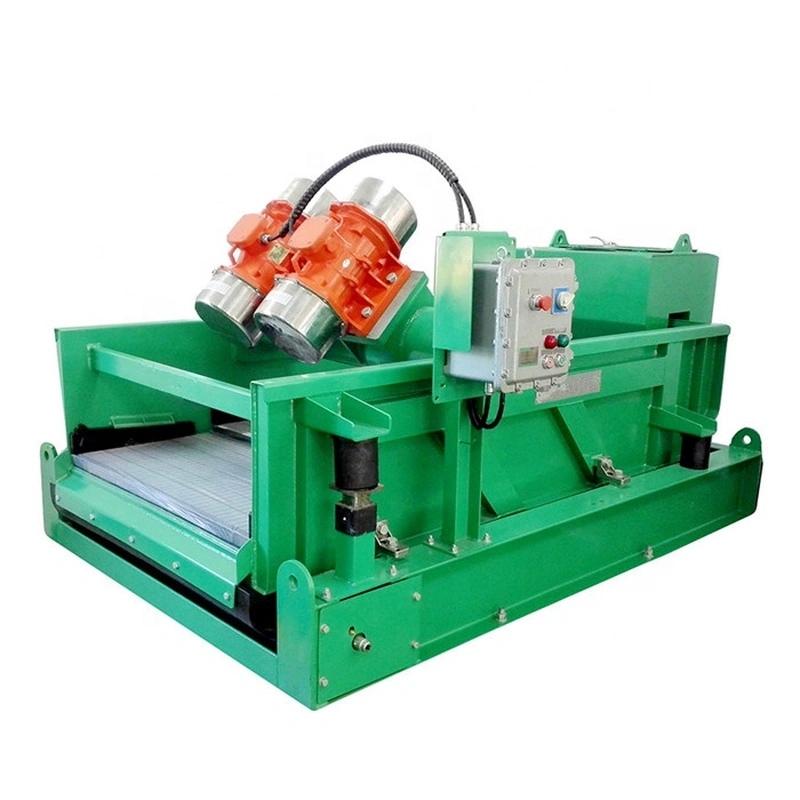

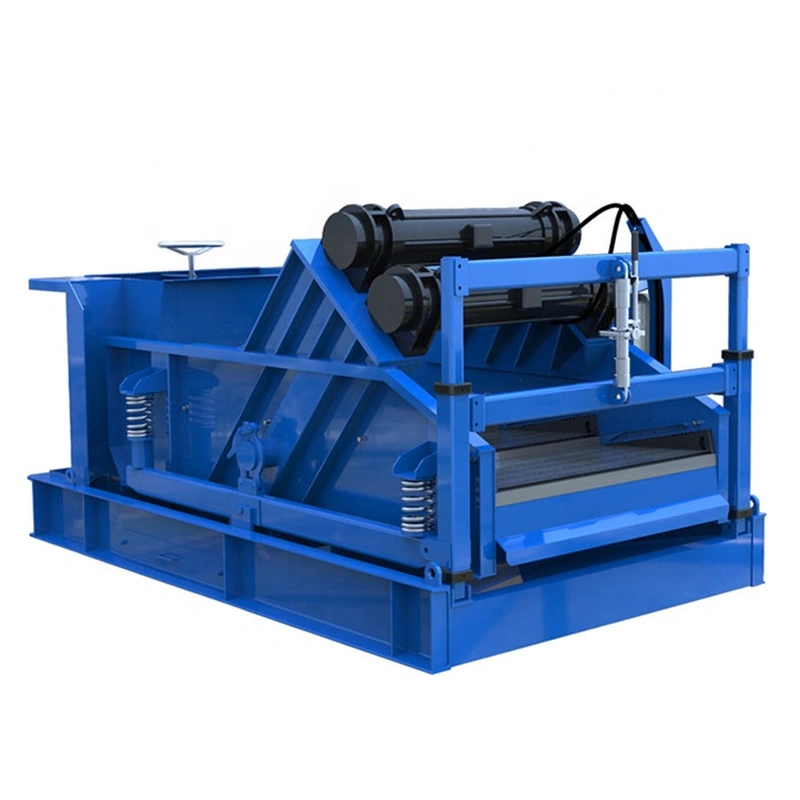

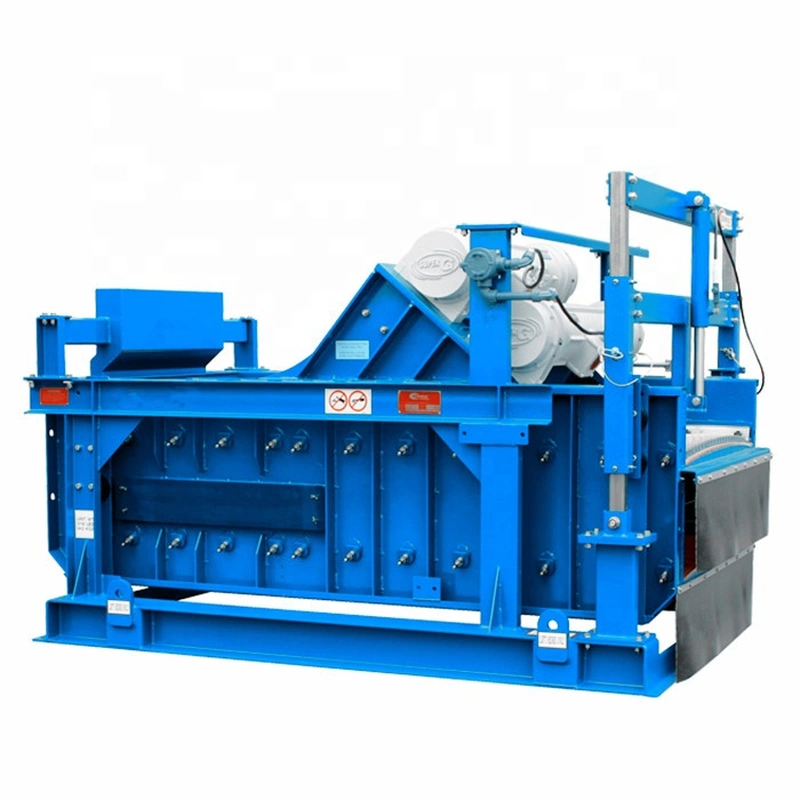

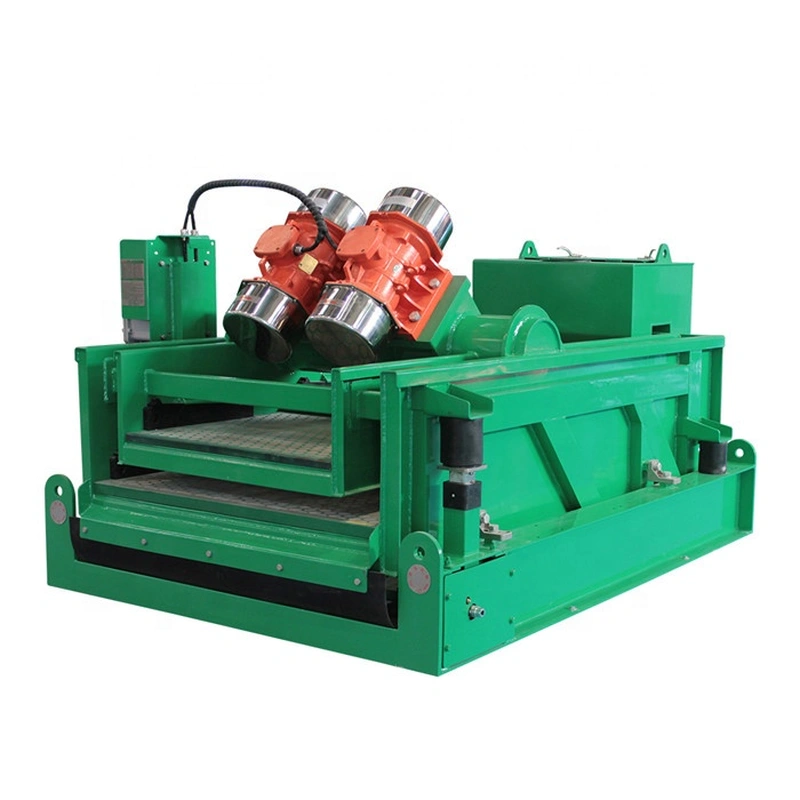

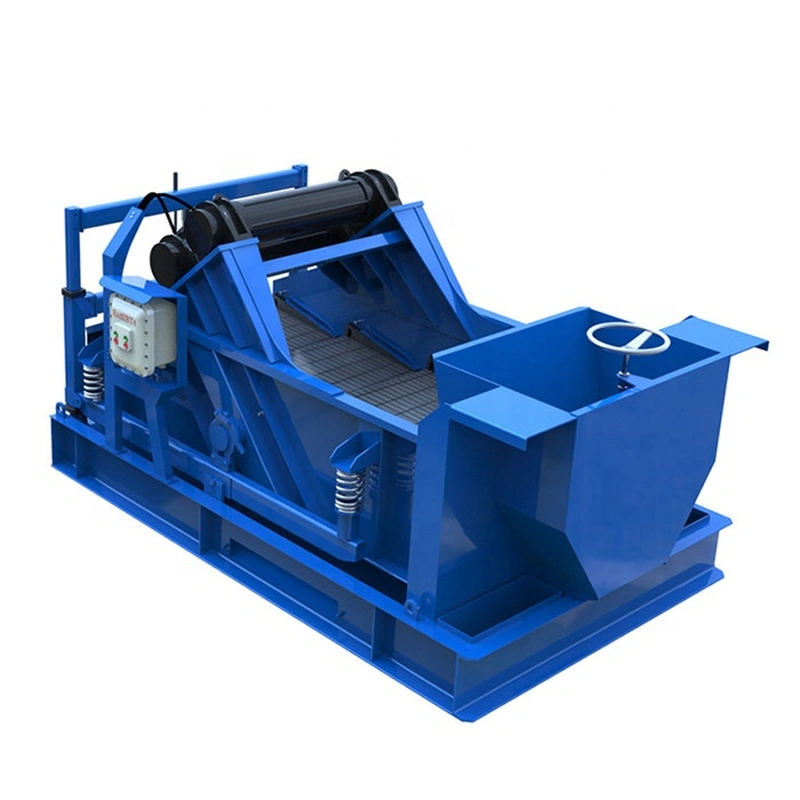

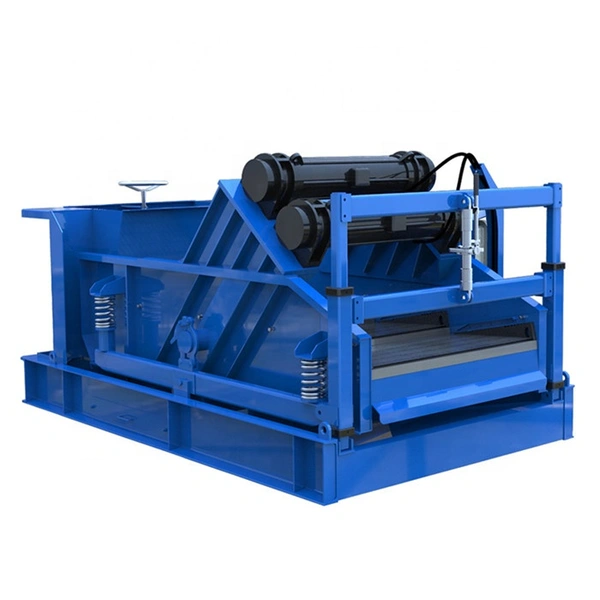

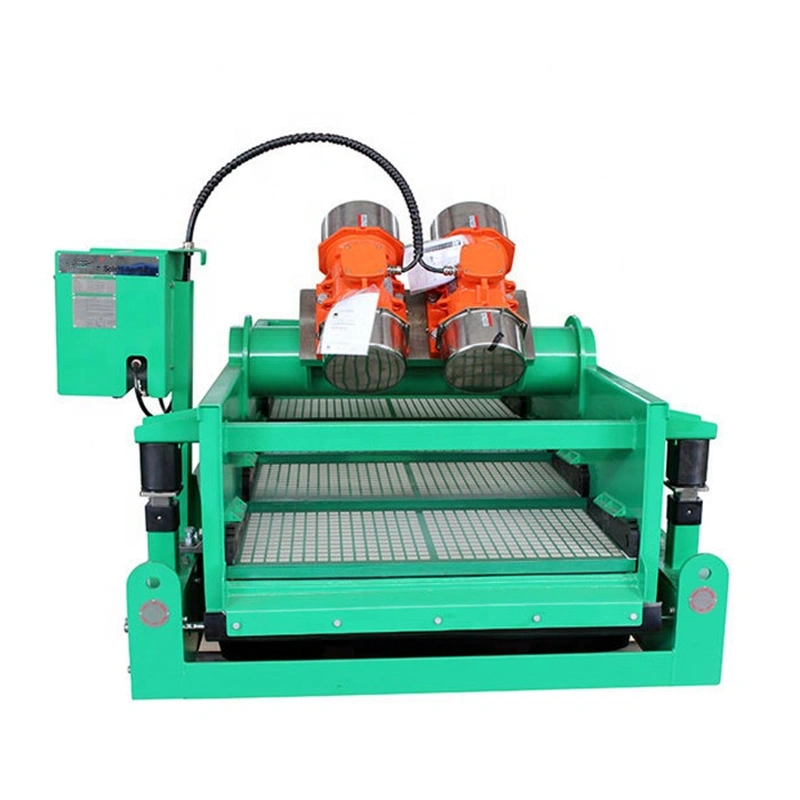

Oilfield linear motion shale shaker

Description

Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, we also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor.

Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment. Besides Solids Control, linear motion shale shaker with High G force and large shaker screen area could be used as dryer shaker in drilling waste management project. After treated by Hi G dryer shaker, more drilling mud will be recovered and less volume solid waste discharged.

ZS Linear Motion Shale Shaker Features & Benefits:

1. Ajustable High G force for primary solids control or cuttings drying.

2. Heat treatment on complete shale shaker deck.

3. Vibrating Motor: IEC Ex, ATEX and UL Certified

4. Electrical components: SIEMENS, Schneider Brand

5. Shale Shaker Bottom Deck Material: Stainless Steel

6. Wedge type design for easy and quick screen replacement

7. Electric Shaker Deck angle adjustable while working

Model	ZS752F-MDZF	ZS703F-SHBF	ZS703F-SDZF	ZS594F-SHBF	ZS594F-SGZF
Vibration Mode	Linear Motion
Capacity	45m3/h(200GPM)	120m3/h(528GPM)		140m3/h(616GPM)
Vibration Motor	2x0.75Kw	2x1.72Kw			2x1.94Kw
Screen Qty	2pcs	3pcs		4pcs
Screen Size: LxW	750x900mm	700x1250mm		585x1165mm
Screen Area	1.35m2	2.63m2		2.73m2
Adjustable G Force	≤7.1G	≤7.5G			≤8.0G
Vibration Amplitude	3.92~5.62mm	4.14~5.96mm			4.4~6.34mm
Deck Angle Range	+2°	-1°~+5° (Adjustable)
Feeding Type	Box Feeder	Weir Feeder	Box Feeder	Weir Feeder	Hopper Feeder
Weir Height	710mm	895mm	1042mm	895mm
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight (Kg)	893	1675	1742	1722	1638
Dimension: LxWxH(mm)	1676x1689x1062	2717x1998x1428	2419x2055x1474	2937x1998x1428	2761x1998x1428
Remarks:	Low Weir Feeding Shale Shaker ZS703F-SLWF weir height 500mm is available for option

As the optimized design and stable performance, linear motion shale shaker now is the most popular model applied by the drilling contractors. Easy method to replace the screens greatly shortens the downtime. Shale shaker deck angle adjustable while running enable to achieve the proper solids conveyance and fluid end point. High G force and large screen area make sure the stable performance when treating the large flow drilling mud.

Packing&Shipping

The shale shaker will be packed in plywood wooden box or on pallet.

Goods will be delivered by sea, train, truck, etc.

Company Introduction

Our scope of business covers solid-liquid separation industries, such as petroleum drilling solid control system, trenchless mud purification system, gas coal seam exploration mud purification system, shield mud purification system, desilting purification system, pilework solid-liquid separation, environmental protection industry, etc. Company produces and deals in mud purification system, drilling fluid vibrating screen, mud cleaner, desander, desilter, vacuum degasser, centrifuge, shear pump, sand pump, gas-liquid separator, electronic ignition device, mud mixer, jet mud mixer, mud gun, mud tank, submerged slurry pump, solid control equipment accessories, etc.

Our production management strictly complies with the quality requirements of ISO9001 to provide reliable quality assurance from in-factory of raw material to ex-factory of finished products, which guarantee to provide customer-satisfied products.

We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.

FAQ

1. Are the shale shakers in stock?
A: Some are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the shale shakers according to my requirements?
A: Yes, we can produce shale shakers as per your requirements, but all need to be discussed before signing the contract.

5. Can we visit your company before placing order?
Welcome to our company any time you like.
