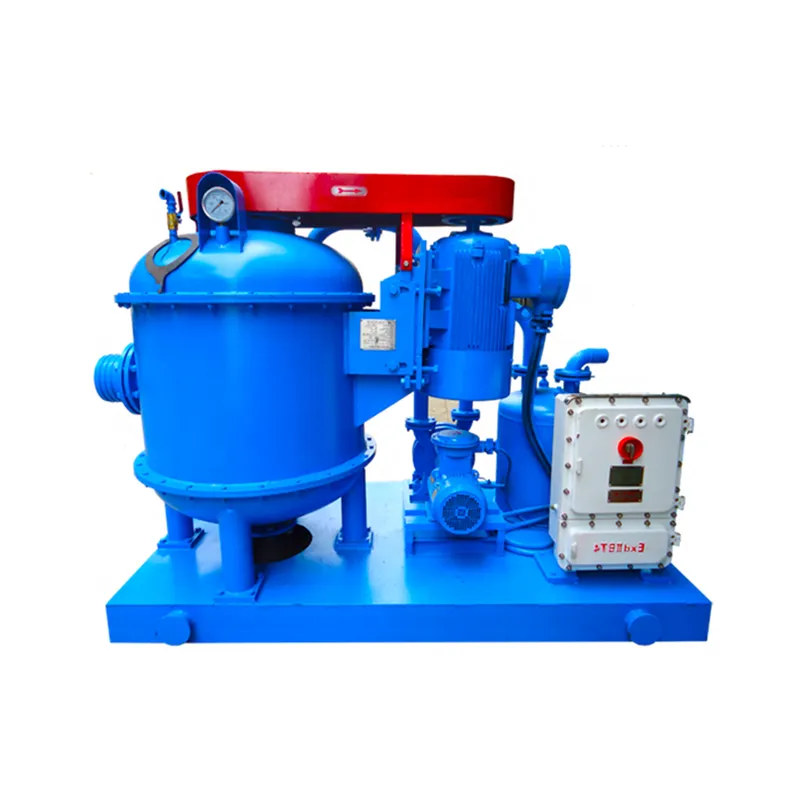

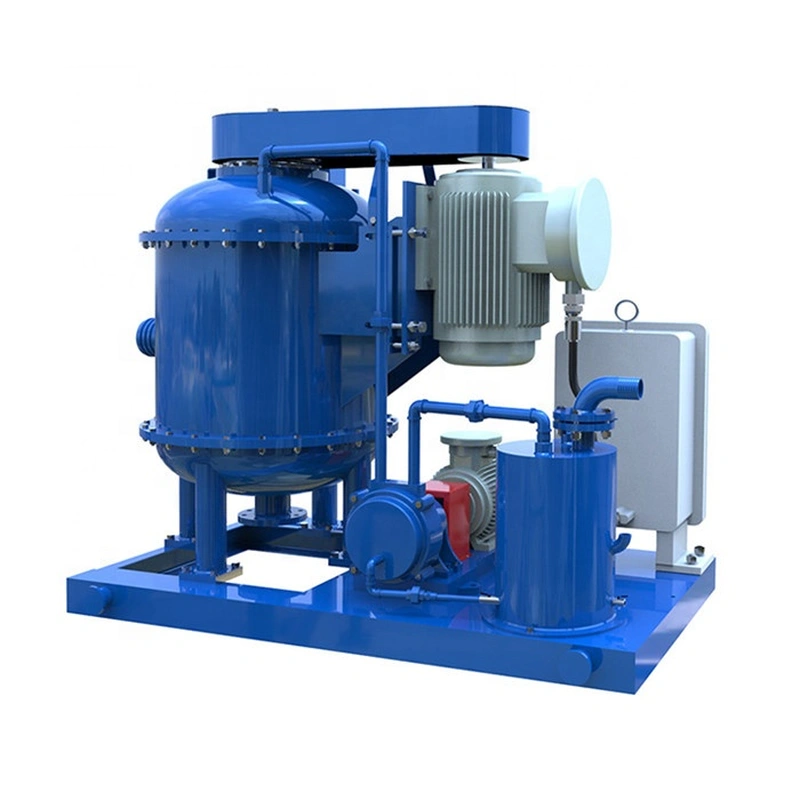

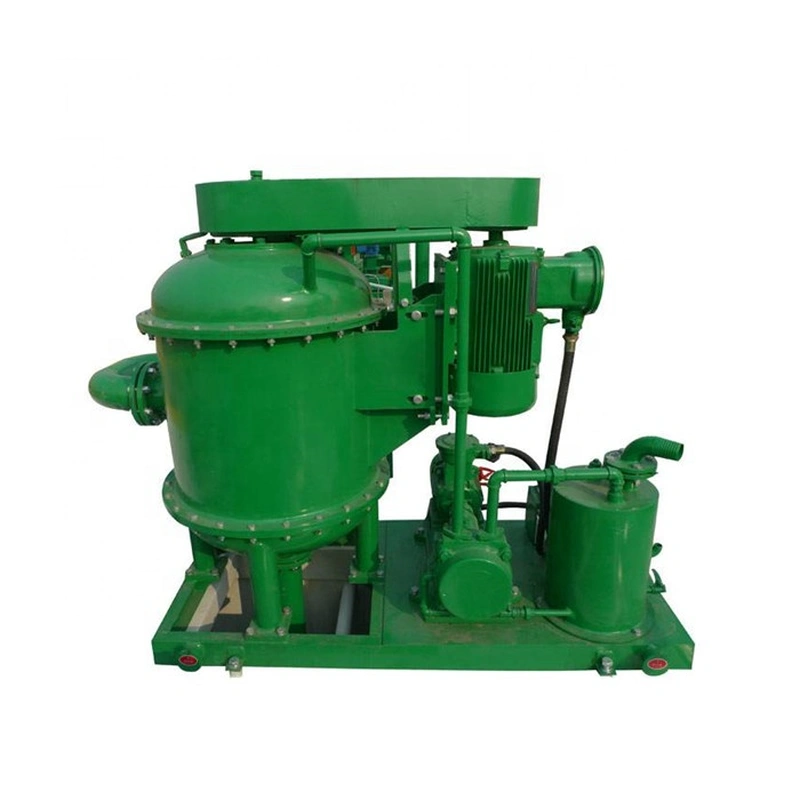

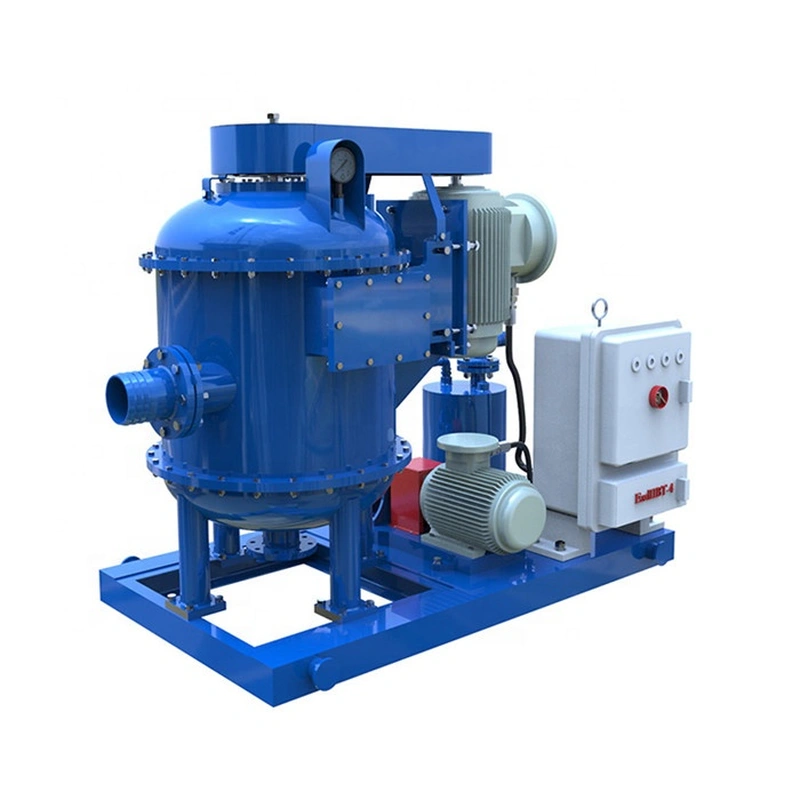

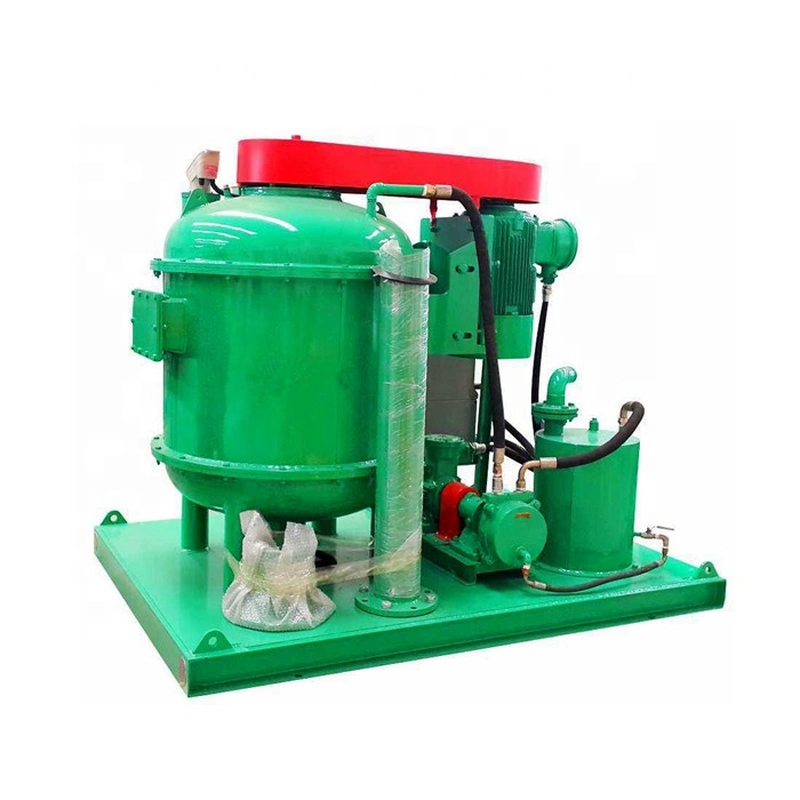

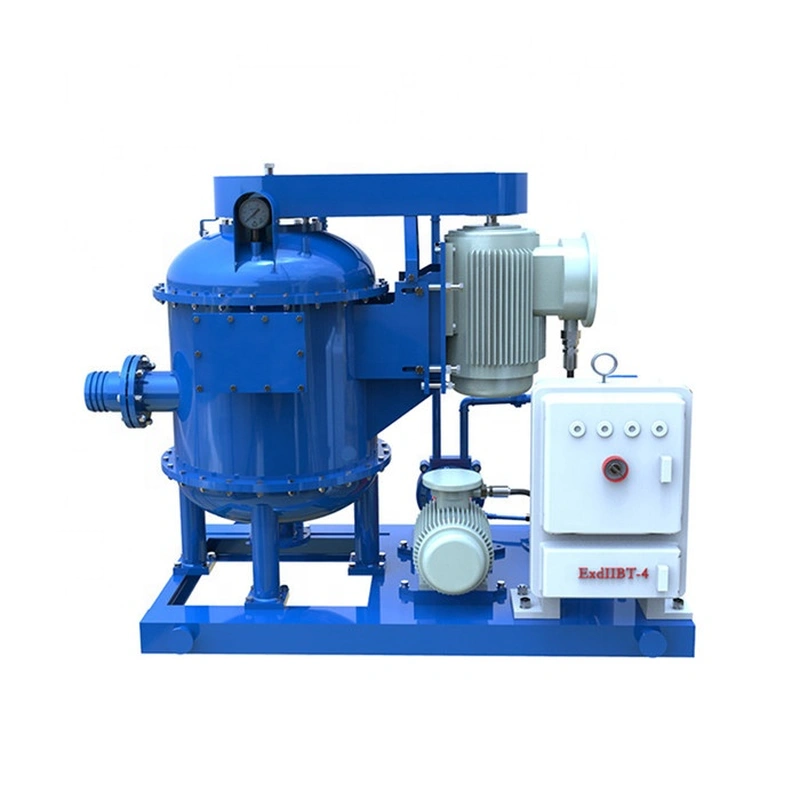

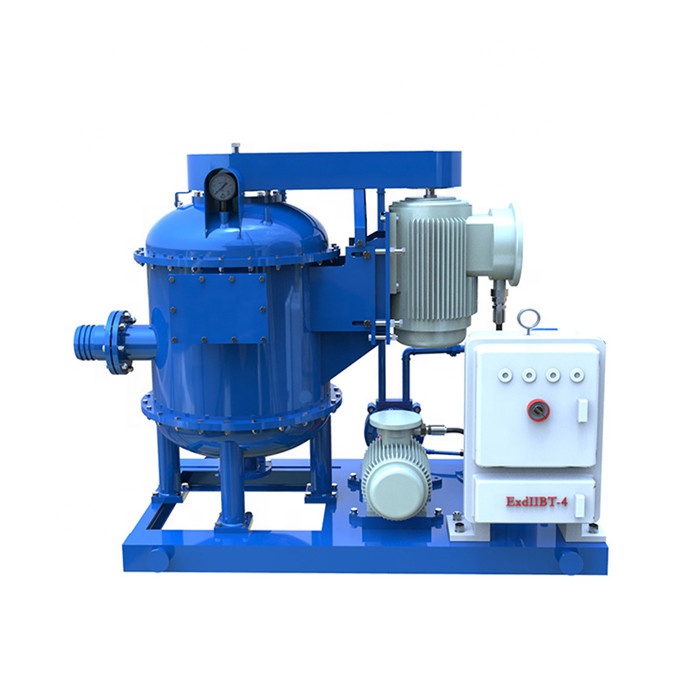

Solid control equipment oilfield vacuum degasser

ZCQ series Vacuum Degasser is adapted to get rid of various cut-in gases in the drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator. The vacuum degasser has self-suction function, so it doesn’t need the extra transfer pump to feed the mud. After the impurities been removed, the working efficiencies of subsequent centrifugal pump for desander and deilter would be greatly increased.

Description

ZCQ series Vacuum Degasser is adapted to get rid of various cut-in gases in the drilling fluids. Vacuum degasser is very important for returning mud gravity, stabilizing mud viscosity and reducing drilling cost. Therefore, it works as one type mud cleaning equipment. As it is placed after the shale shaker, so we call it second stage mud cleaning equipment in mud recycling system. At the same time vacuum degasser can be used as a heavy-power agitator. The vacuum degasser has self-suction function, so it doesn’t need the extra transfer pump to feed the mud. After the impurities been removed, the working efficiencies of subsequent centrifugal pump for desander and deilter would be greatly increased.
Vacuum Degasser for Drilling Fluids Solids Control
Vacuum Degasser is used to remove the small entrained gas bubbles left in the mud by the mud gas separator, also called poor boy degasser. When there is dangerous gas in the drilling mud or blowout occurs, the mud gas separator is arranged as the first units of solids control equipment to treat drilling mud. Than the drilling mud reaches the primary shale shakers, large size solid cuttings is separated by mesh screen, still there is remaining gas bubble. It is the Vacuum degasser would further treat the drilling mud by removing the bubbles. The processing of Vacuum degasser is very effective for whole well drilling fluids processing system. These units are positioned downstream from mud gas separators, gumbo removal equipments (if utilized), shale shakers and mud conditioners (if utilized), while hydrocyclone desander and Decanting centrifuges follow in the arrangement.
Model
ZCQ240
ZCQ270
ZCQ300
ZCQ360
Main diameter
700mm
800mm
900mm
1000mm
Capacity
240m3/h
270 m3/h
300 m3/h
360 m3/h
Vacuum Degree
-0.03~-0.045MPa
Transmission ratio
1.68
1.72
Handling Efficiency
≥95%
≥95%
≥95%
≥95%
Main Motor Power
15kW
22kW
30kW
37kW
Pump Motor Power
2.2kW
3kW
4kW
7.5kW
Rotation Speed
860r/min
870r/min
876r/min
880r/min
EX Standard
ExdIIBt4 / IECEX / A-TEX
Suction Line Size
6 Inch
Suction Line Size
8 Inch
Weight
1100kg
1350kg
1650kg
1800kg
Dimension: LxWxH
1750x860x1500
2000x1000x1670
2250x1330x1650
2400x1500x1850
ZCQ Vacuum Degasser Features
Self contained degasser unit operation without feeding pump.
Liquid Level Sensor for safty operation.
Degasser have another fucntion like a big size agitator for mixing mud before feeding to desander desilter.
Technical and spare parts support in many countries.
Company Introduction
Our scope of business covers solid-liquid separation industries, such as petroleum drilling solid control system, trenchless mud purification system, gas coal seam exploration mud purification system, shield mud purification system, desilting purification system, pilework solid-liquid separation, environmental protection industry, etc. Company produces and deals in mud purification system, drilling fluid vibrating screen, mud cleaner, desander, desilter, vacuum degasser, centrifuge, shear pump, sand pump, gas-liquid separator, electronic ignition device, mud mixer, jet mud mixer, mud gun, mud tank, submerged slurry pump, solid control equipment accessories, etc.
Our production management strictly complies with the quality requirements of ISO9001 to provide reliable quality assurance from in-factory of raw material to ex-factory of finished products, which guarantee to provide customer-satisfied products.
FAQ
1. Are the vacuum degassers in stock?
A: Some are in stock, but some need to be produced by orders.

2. Can I request to change the form of packaging and transportation?
A: Yes, We can change the form of the packaging and transportation according to your request.

3. Can I have my own Logo on the product?
A: Yes, but the logo need to be sent to us when signing the contract.

4. Can you produce the vacuum degassers according to my requirements?
A: Yes, we can produce vacuum degassers as per your requirements, but all need to be discussed before signing the contract.

5. Can we visit your company before placing order?
Welcome to our company any time you like.
