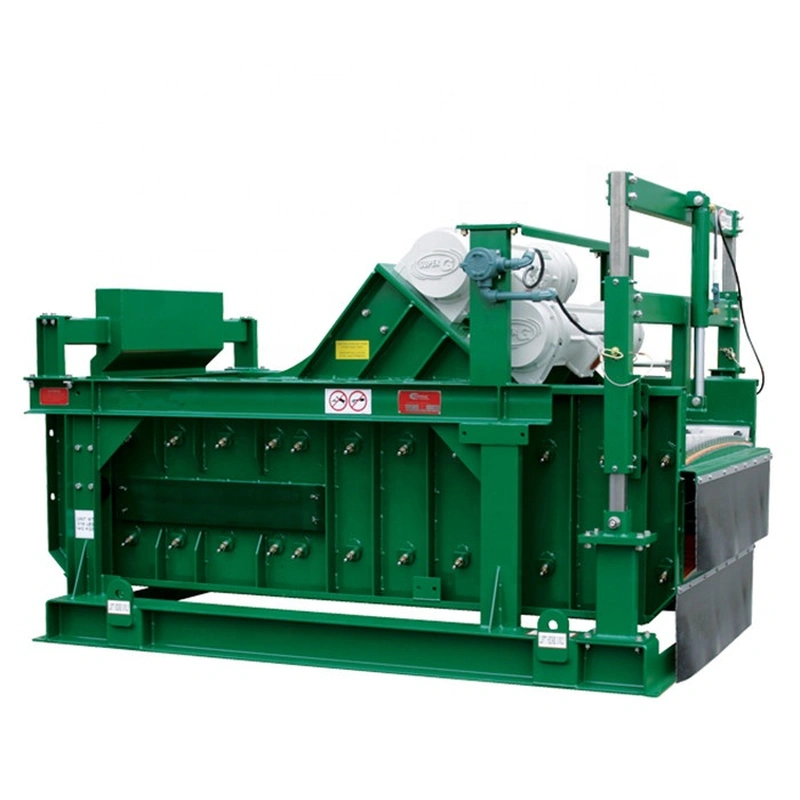

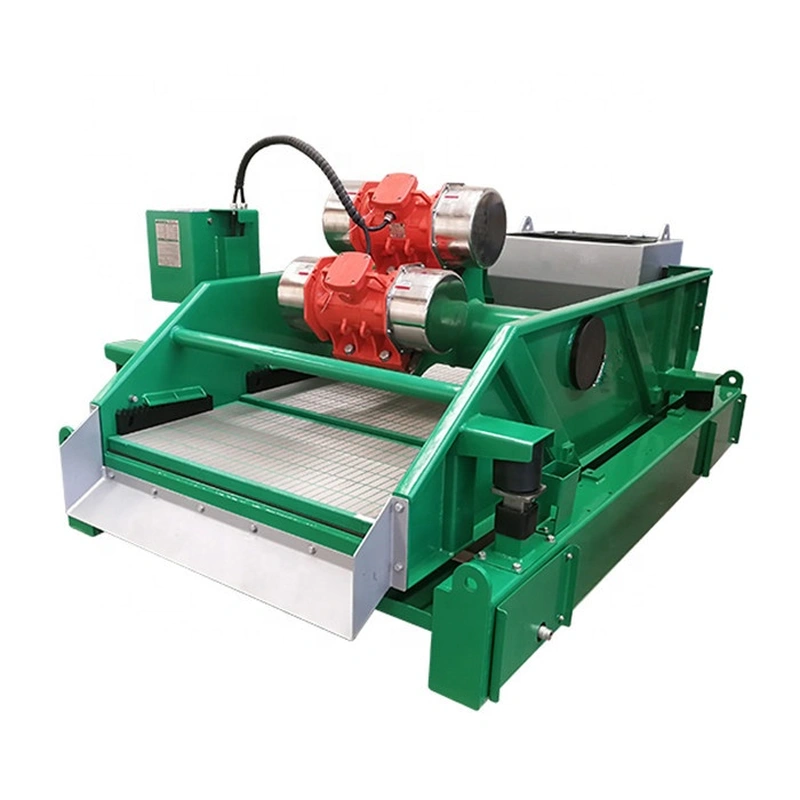

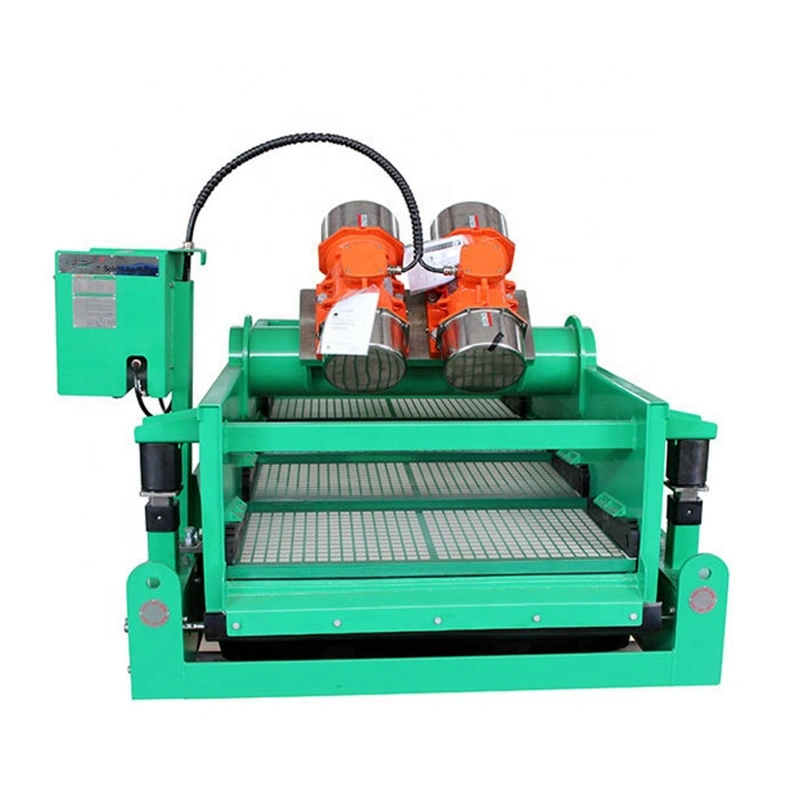

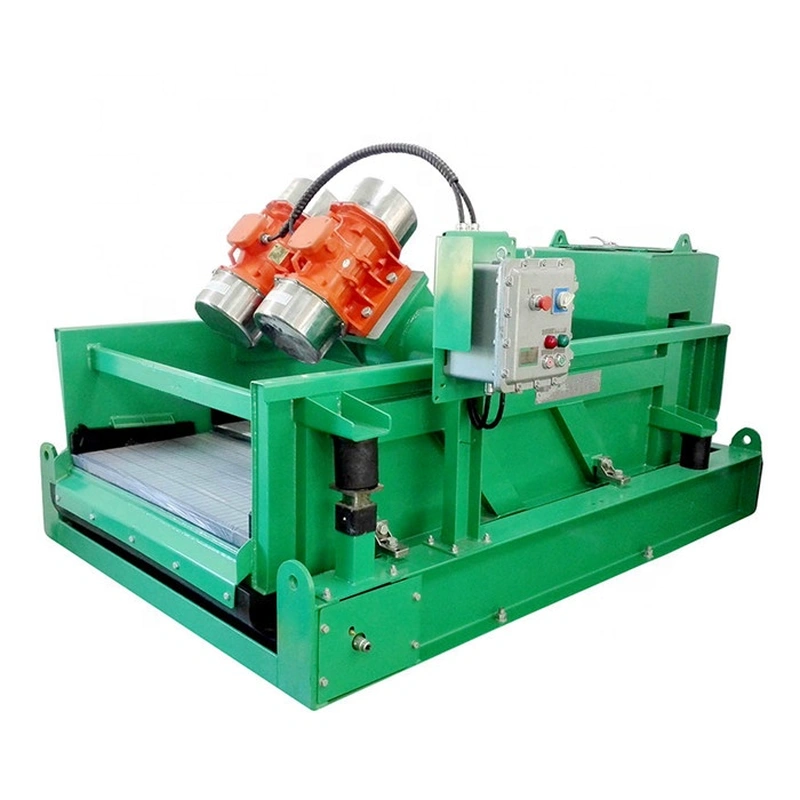

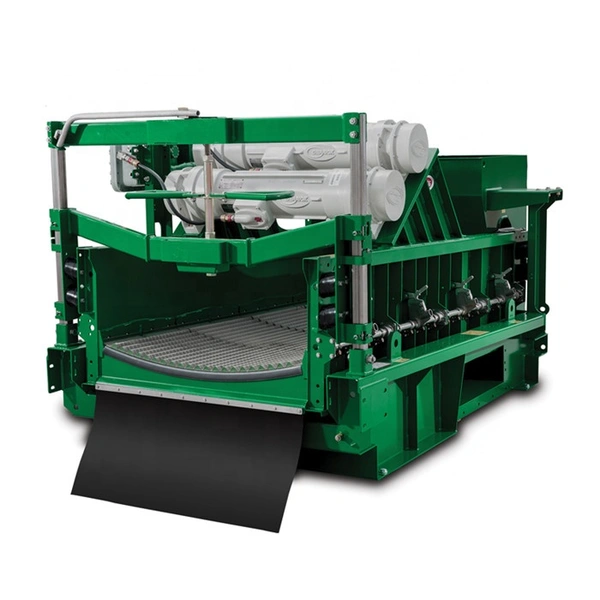

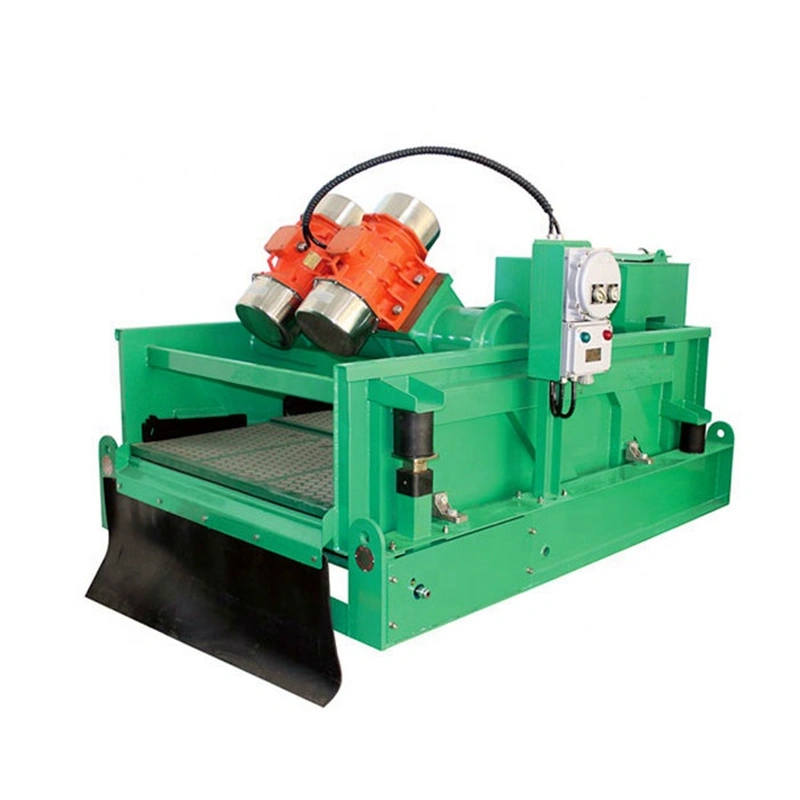

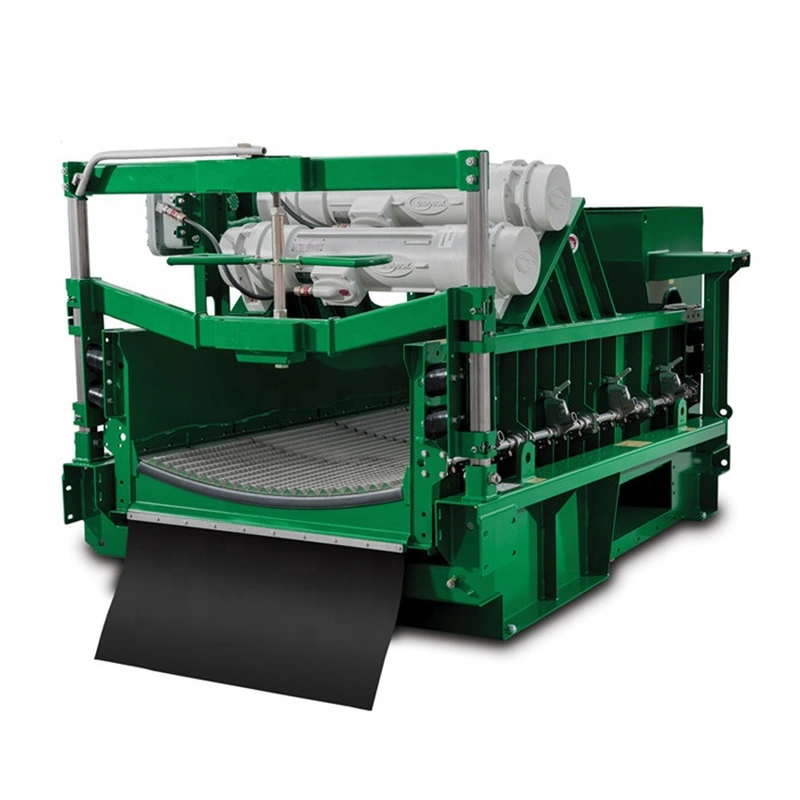

Oilfield linear motion ZS752F-MDZF shale shaker

Description

Shale Shaker is the first stage solids control equipment in drilling fluids recycling system; it is also the most important equipment. To a large extent, the performance of shale shaker decides the working efficiencies of whole solids control system. Besides single shale shaker, we also could offer tandem shakers and triplicate shakers on single skid according to customers’ requirements and also the connecting manifold and mud distributor.

Linear motion shale shaker are widely used for drilling mud solids control of oil & gas well drilling. In a complete mud recycling system, shale shaker is the first stage equipment for both solids control and mud cleaning. Shale shaker for solids control are devices that remove drill cuttings from the drilling fluid while circulating and drilling. By using different wire mesh screen, linear motion shaker could maximally remove the drilling cuttings and recover the valuable drilling mud back into the mud system for subsequent treatment. Besides Solids Control, linear motion shale shaker with High G force and large shaker screen area could be used as dryer shaker in drilling waste management project. After treated by Hi G dryer shaker, more drilling mud will be recovered and less volume solid waste discharged.

ZS Linear Motion Shale Shaker Features & Benefits:

1. Ajustable High G force for primary solids control or cuttings drying.

2. Heat treatment on complete shale shaker deck.

3. Vibrating Motor: IEC Ex, ATEX and UL Certified

4. Electrical components: SIEMENS, Schneider Brand

5. Shale Shaker Bottom Deck Material: Stainless Steel

6. Wedge type design for easy and quick screen replacement 7. Electric Shaker Deck angle adjustable while working

Model	ZS752F-MDZF
Vibration Mode	Linear Motion
Capacity	45m3/h(200GPM)
Vibration Motor	2x0.75Kw
Screen Qty	2pcs
Screen Size: LxW	750x900mm
Screen Area	1.35m2
Adjustable G Force	≤7.1G
Vibration Amplitude	3.92~5.62mm
Deck Angle Range	+2°
Feeding Type	Box Feeder
Weir Height	710mm
EX Standard	ExdIIBt4 / IEC EX/ ATEX
Weight (Kg)	893
Dimension: LxWxH(mm)	1676x1689x1062
Remarks:	Low Weir Feeding Shale Shaker ZS703F-SLWF weir height 500mm is available for option

As the optimized design and stable performance, linear motion shale shaker now is the most popular model applied by the drilling contractors. Easy method to replace the screens greatly shortens the downtime. Shale shaker deck angle adjustable while running enable to achieve the proper solids conveyance and fluid end point. High G force and large screen area make sure the stable performance when treating the large flow drilling mud.

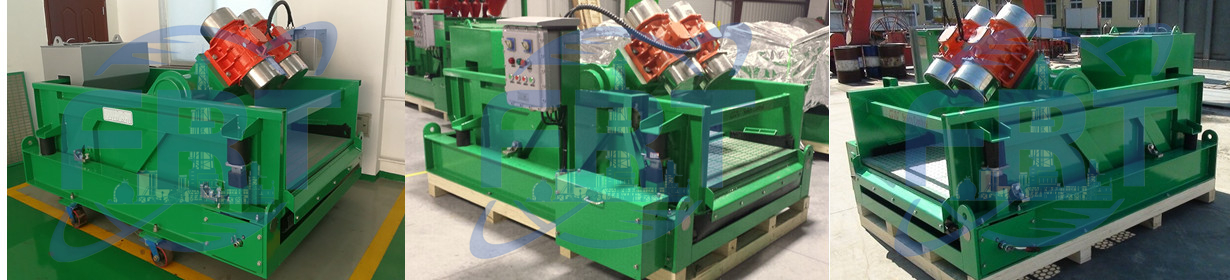

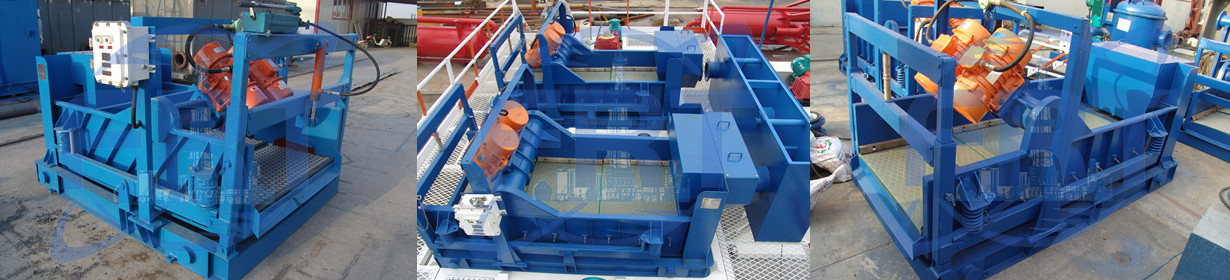

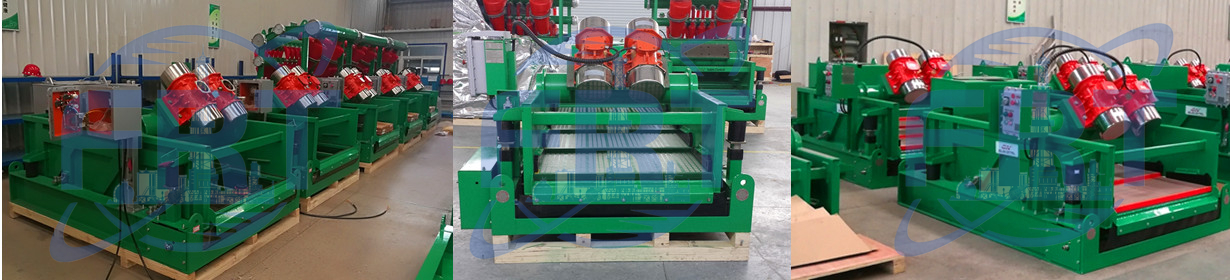

Packing&Shipping

The shale shaker will be packed in plywood wooden box or on pallet.

Goods will be delivered by sea, train, truck, etc.
