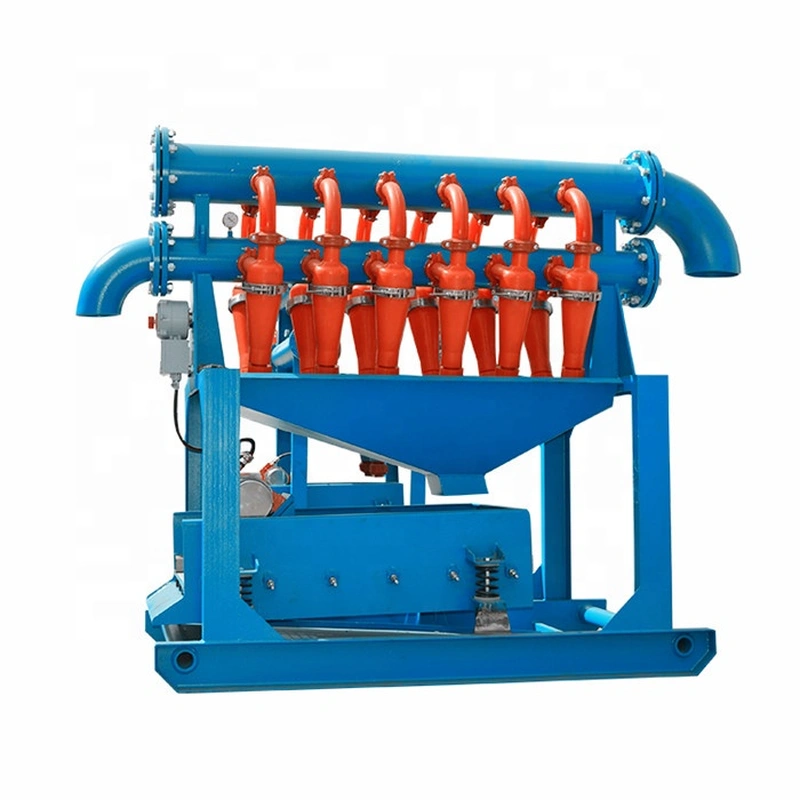

Desilter is the third class solids control equipment to treat the drilling fluids. According to the size of the cone diameter, they are divided into desander and desilter. Usually the cone diameter is less than 6" is called desilter, and used as the third-control equipment in drilling operation. We commonly used 5" and 4" cone to separate solid-phase particle size 15-47μm in the drilling fluid. Based on customer requirements and capacity, we can select groups of cone into desilter.
Desilter Options for different Application

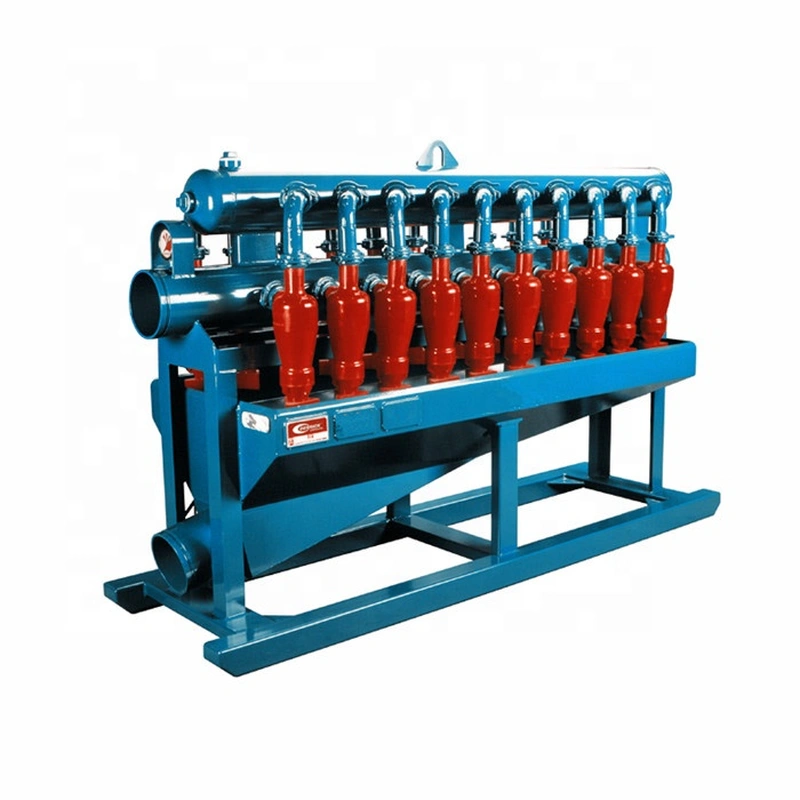

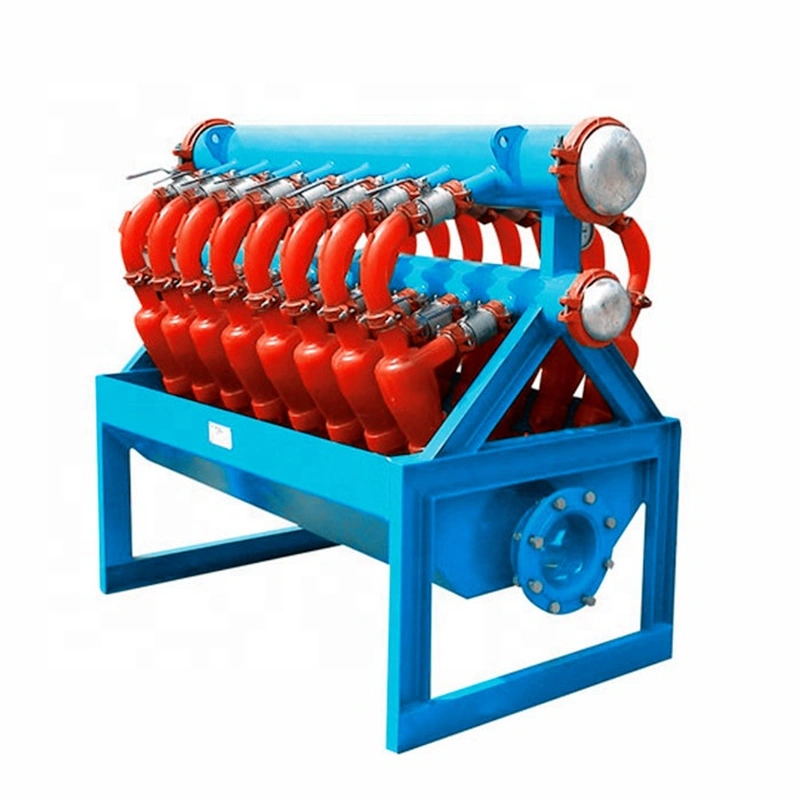

Type | Desilter without downstream drying shale shaker |
Model | WS-12N WS-16N |
Application | For oil gas drilling un-weighted drilling mud |
Features | Small footprint Economic choice No consumable screens |
Result | Wet cuttings, not recommended for Weighted mud and drying solids |

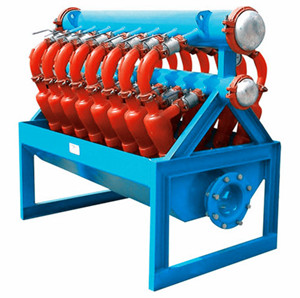

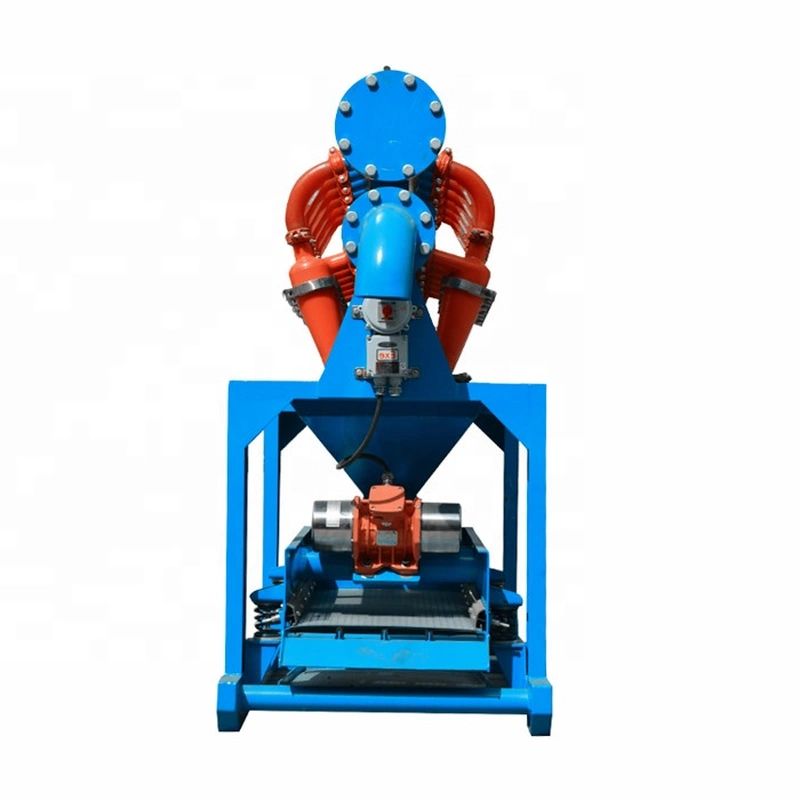

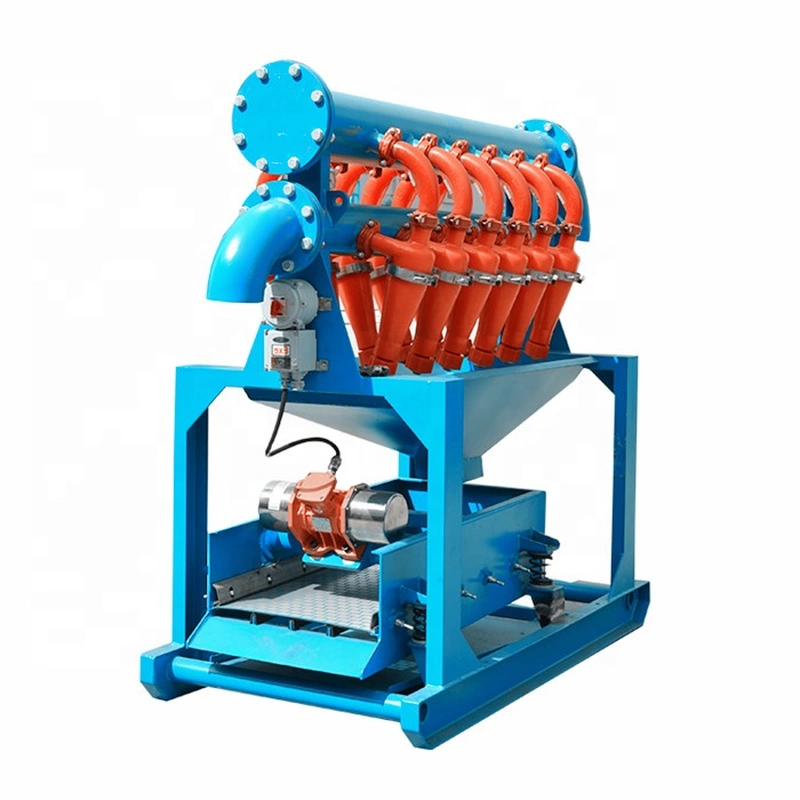

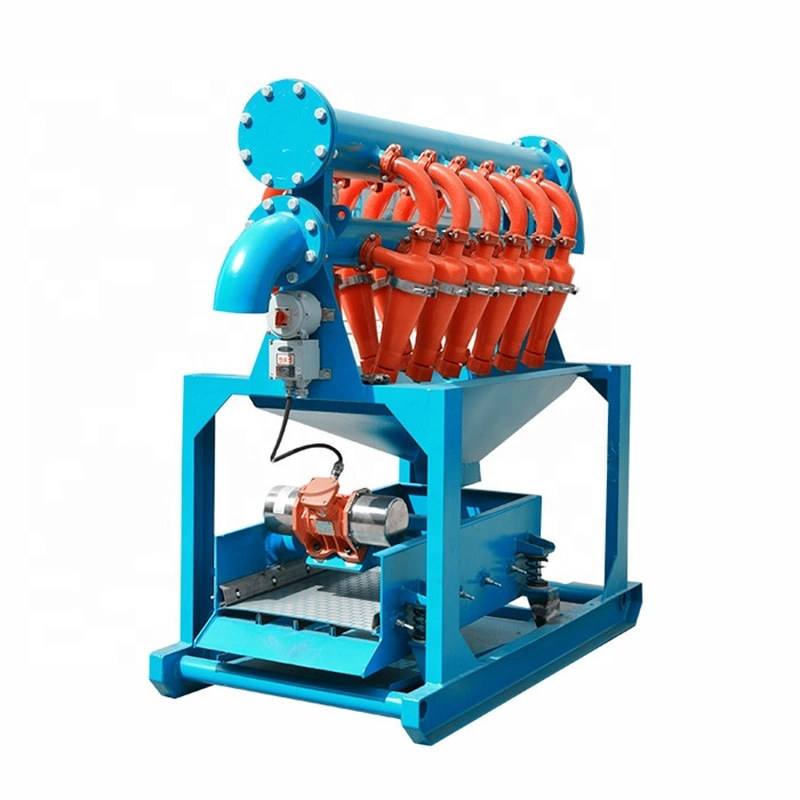

Type | Desilter with ZS752 Series Mini Shale Shaker Screen Area:1.4m² |
Model | ZJ752F-8NF ZJ752F-12NF |
Application | For oil gas drilling small drilling rig , CBM drilling, HDD, Water Well drilling |
Features | Small footprint Economic choice Acceptable drying solids |
Type | Desilter with ZS703 Series 3 Panel Shale Shaker Screen Area:2.6m² |
Model | ZJ703F-D8NF ZJ703F-D12NF ZJ703F16NF |
Application | For oil gas drilling big drilling rig , large HDD rig, Tunneling Boring Machine etc. |
Features | Big capacity Drying solids |
Model | ZJ752F-8NF/12NF | ZJ703F-D8NF/D12NF | ZJ703F-S16NF | WS-12NF/16NF | |
Capacity | 120/240 m3/h (528/1056GPM) | 360 m3/h (1584GPM) | 240/360 m3/h (1056/1584GPM) | ||
Desilter Size | 4" | ||||
Desilter Qty | 8/12 Pcs | 16 Pcs | 12/16 Pcs  | ||
Working Pressure | 0.25~0.4Mpa | ||||
Feeding Size | DN150 | ||||
Output Size | DN200 | ||||
Bottom Shaker Specs. | Shaker Model | ZS752F | ZS703F | N/A | |
Vibration Mode | Linear Motion | ||||
Vibration Motor | 2x0.75Kw | 2x1.72Kw | |||
Screen Qty | 2 Panels | 3 Panels | |||
Screen Size | 750x900mm | 700x1250mm | |||
Screen Area | 1.35m2; | 2.63 m2; | |||
Adjust G Force | ≤7.1G(Adjustable) | ≤7.5G(Adjustable) | |||
Vibration Amplitude | 3.92~5.62mm | 4.14~5.96mm | |||
Deck Angle Range | +2° | -1~+5° | |||
EX Standard | ExdIIBt4/IECEX/A-TEX | ||||
Weight | 1057/1097kg | 1813/1839kg | 1974kg | 504/539kg | |
Dimension: mm | 1676x1745x1719 | 2419x2150x1608 | 2419x2150x2126 | 2189x900x1511 | |
Our production management strictly complies with the quality requirements of ISO9001 to provide reliable quality assurance from in-factory of raw material to ex-factory of finished products, which guarantee to provide customer-satisfied products.We are committed to focusing on the challenges and pressures of customers' attention, providing competitive solutions and continuously creating the maximum value for customers. Safety and environmental and social responsibility are at the core of all our business activities.
